■ Mechanical disassemblies
3. ASS'Y - MAIN AND ASS'Y - SUB REMOVAL
1. Remove seven screws and remove Ass'y Main.
2. Remove three screws and remove Ass'y-Sub.

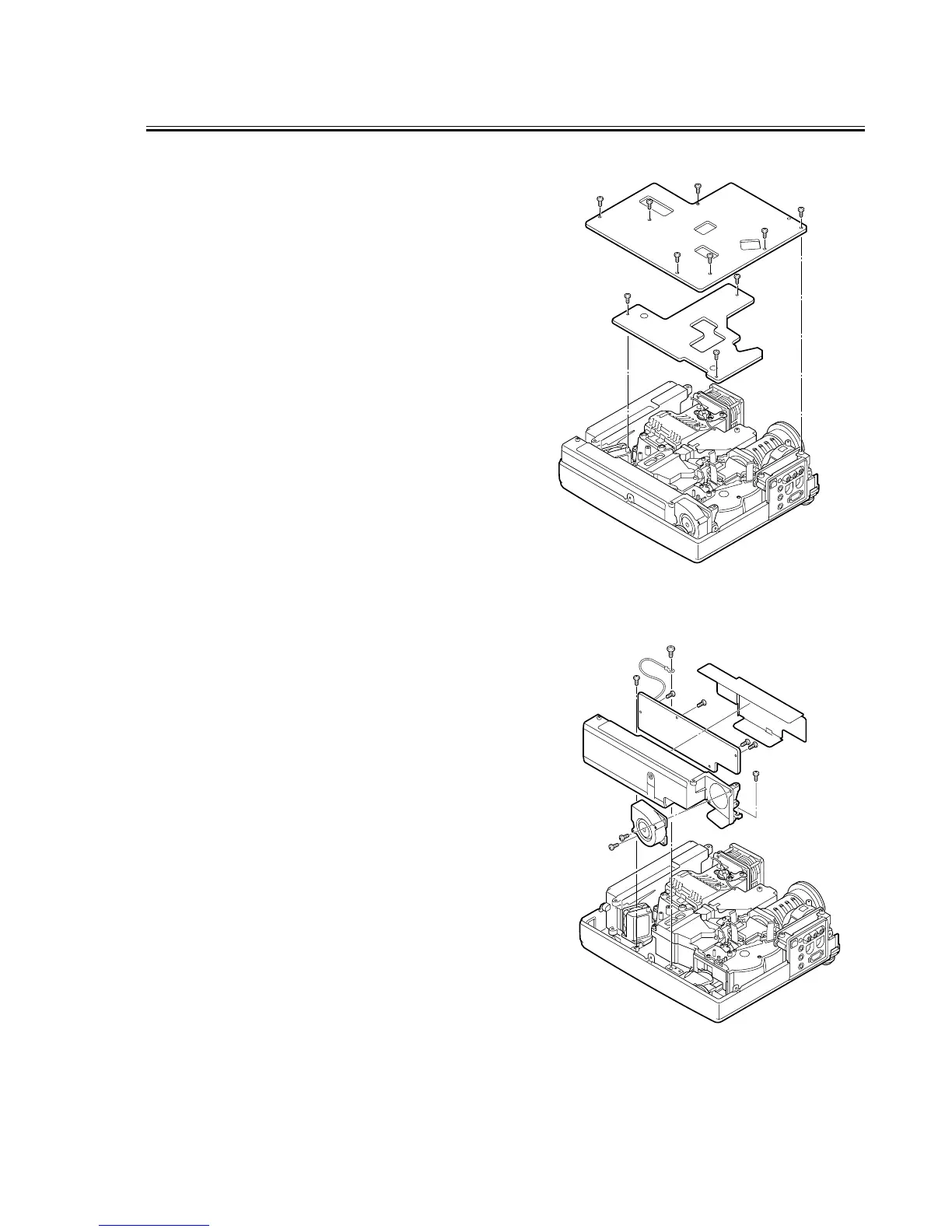

See figure right.
M
ain
Sub
Po
wer
FN903
4. ASS'Y - POWER AND FAN (FN903) REMOVAL
1. Remove seven screws and remove Ass'y Power.
2. Remove two screws and remove Fan (FN903).
See figure right..
