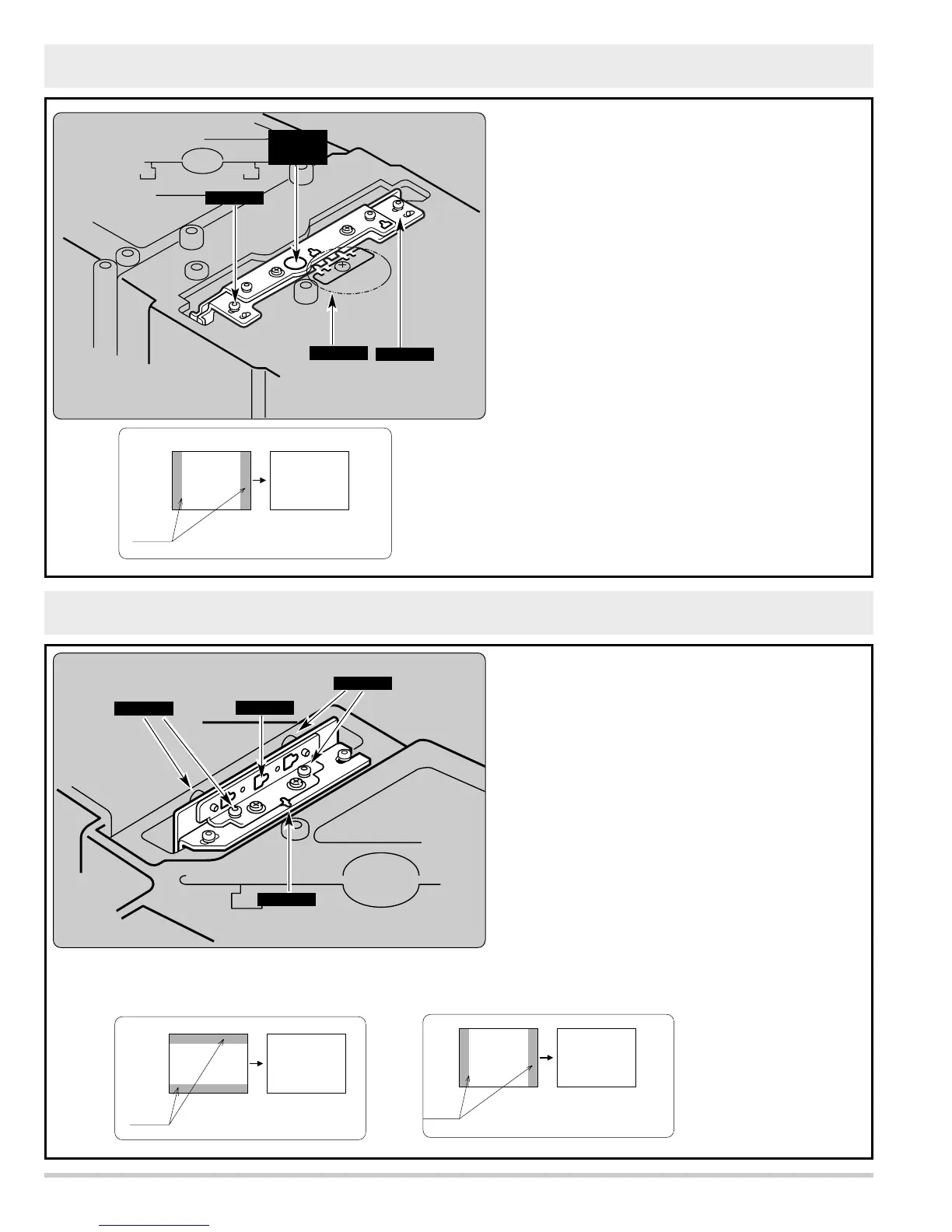

(5) Condenser-lens adjustment
(4) Integrator-lens-out adjustment
SCREW-B
SCREW-B
BOTTOM
SIDE
SCREW-B
SLOT-A
Before Adjustment :
1. Remove the flexible cables of LCD panels from the
assembly Main. And turn on the projector.
2. If the shade appears on the left or right of the screen,
adjust in the following procedure.
Adjustment :
1. Loosen 3 screws-B.
2. Insert a slot screwdriver into slot-A, turn it and erase
shade.
3. Tighten the 3 screws B to fix the integrator lens-out
unit.
SLOT-B
SLOT-C
SCREWS-A
SCREWS-A
Before Adjustment :
1. Remove the connector K8E, connector K8N, connector
K8P and the flexible cables of LCD panels from the
assembly Main. And turn on the projector.
2. If the shade appears on the screen, adjust in the following
procedure.
Adjustment :
1. Set the assembly-Main to the upright position.
2. Loosen 4 screws-A.
3.
If it appears on the top or bottom.---> Use slot-B.
If it appears on the left or right. -----> Use slot-C.
-- Insert slot screwdriver into each slot, turn it and erase
shade. --
4. Tighten the 4 screws-A to fix the condenser-lens unit.
