-18-

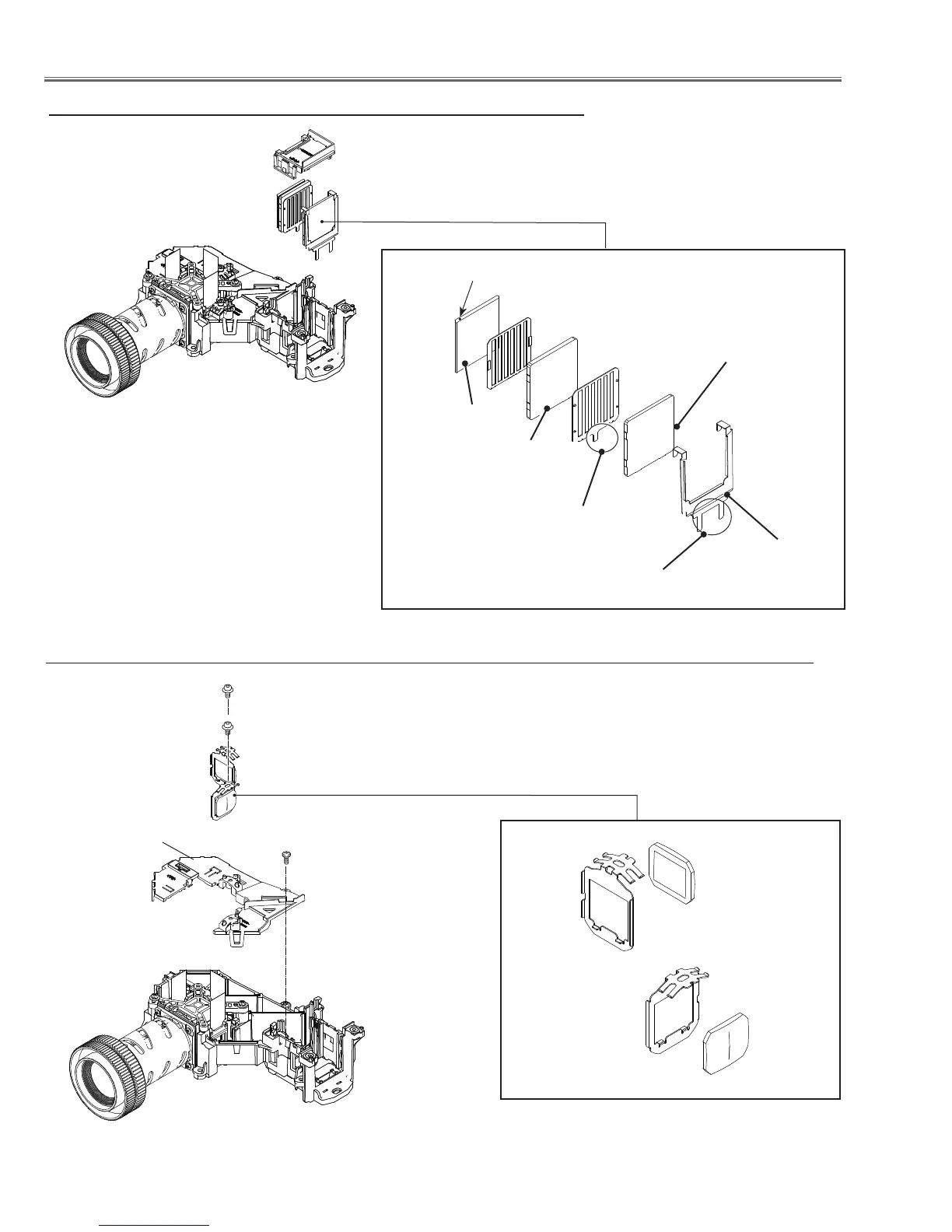

Optical Parts Disassembly
c Integrator lens-in disassembly
Integrator lens-in
Shield
Integrator Lens-In Ass'y
PBS marker
Integrator lens-out
* Rugged surface
facing to PBS
Fig.3
v Condenser Lens Ass'y disassembly (For KR5-XR20100)
Condenser Lens Ass'y
(M2.5x6)x2
Fig.4
(T3x8)x1
Optical unit top
Release the hook
to remove the lens.
Integrator lens-in
* Rugged surface
facing to PBS
Prism Beam Splitter
(PBS)
Condenser Lens(G)
Condenser Lens(B)
Release the hook
to remove the lens.
