-22-

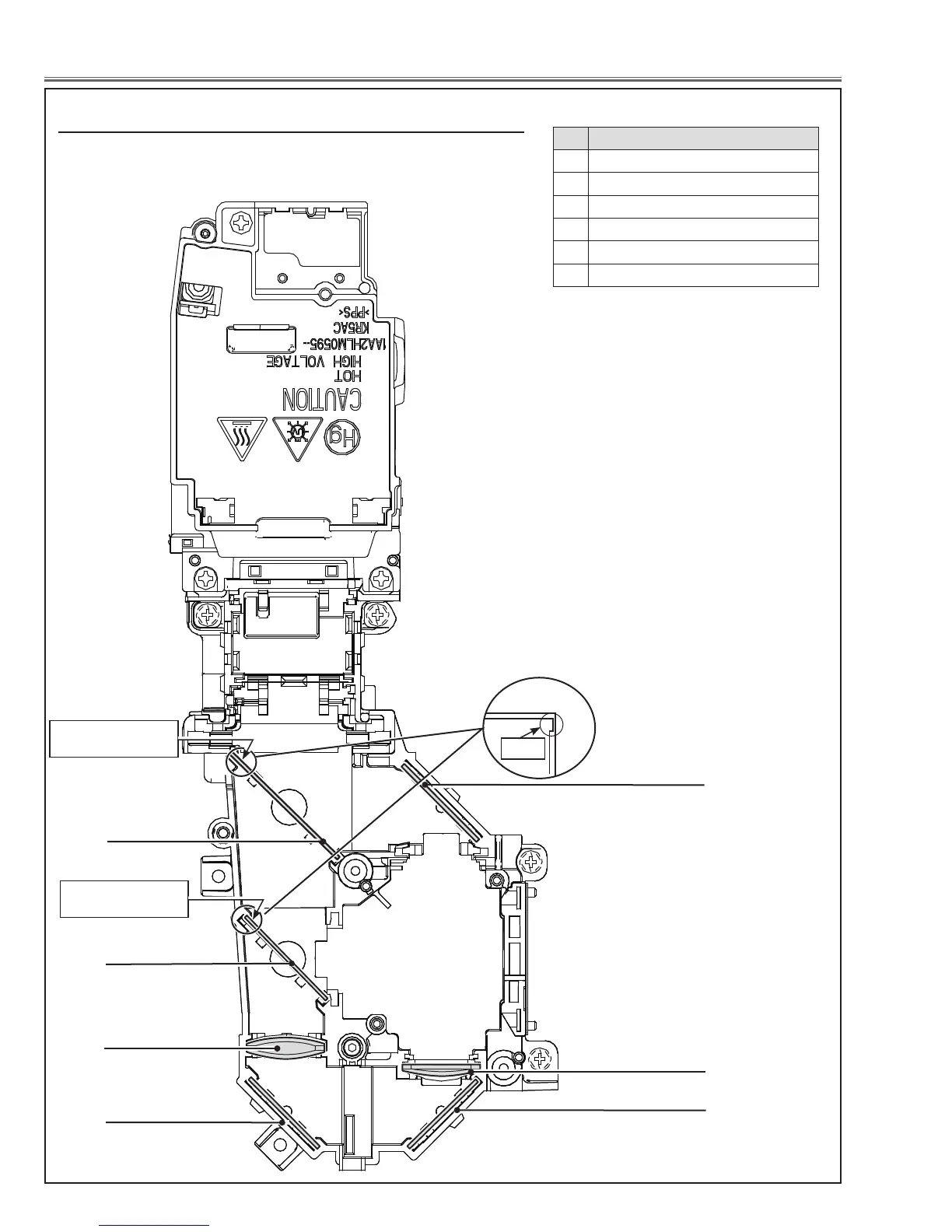

Optical Parts Disassembly
2
Fig.7
6
When mounting or assembling the optical parts in the opti-
cal unit, the parts must be mounted in the specified loca-
tion and direction as shown in figure below.
1
3
5
m Locations and Directions(For KR5-XR20100)
No. Parts Name
1 Dichroic mirror (B)
2 Dichroic mirror (G)
3 Relay lens (IN)
4 Mirror (R)
5 Condenser lens (R)
6 Mirror (B)
4
4
Marker
Marker comes this
side up
Marker comes this
side up
