-43-
Optical Parts Disassembly
29
Blue Pre-polarized glass removal.
1. Remove the Blue Pre-plarized glass upward.
30-1
Optical base top removal-1.
1. Remove 2 screws-A(T3X10) and remove the Stopper lens.

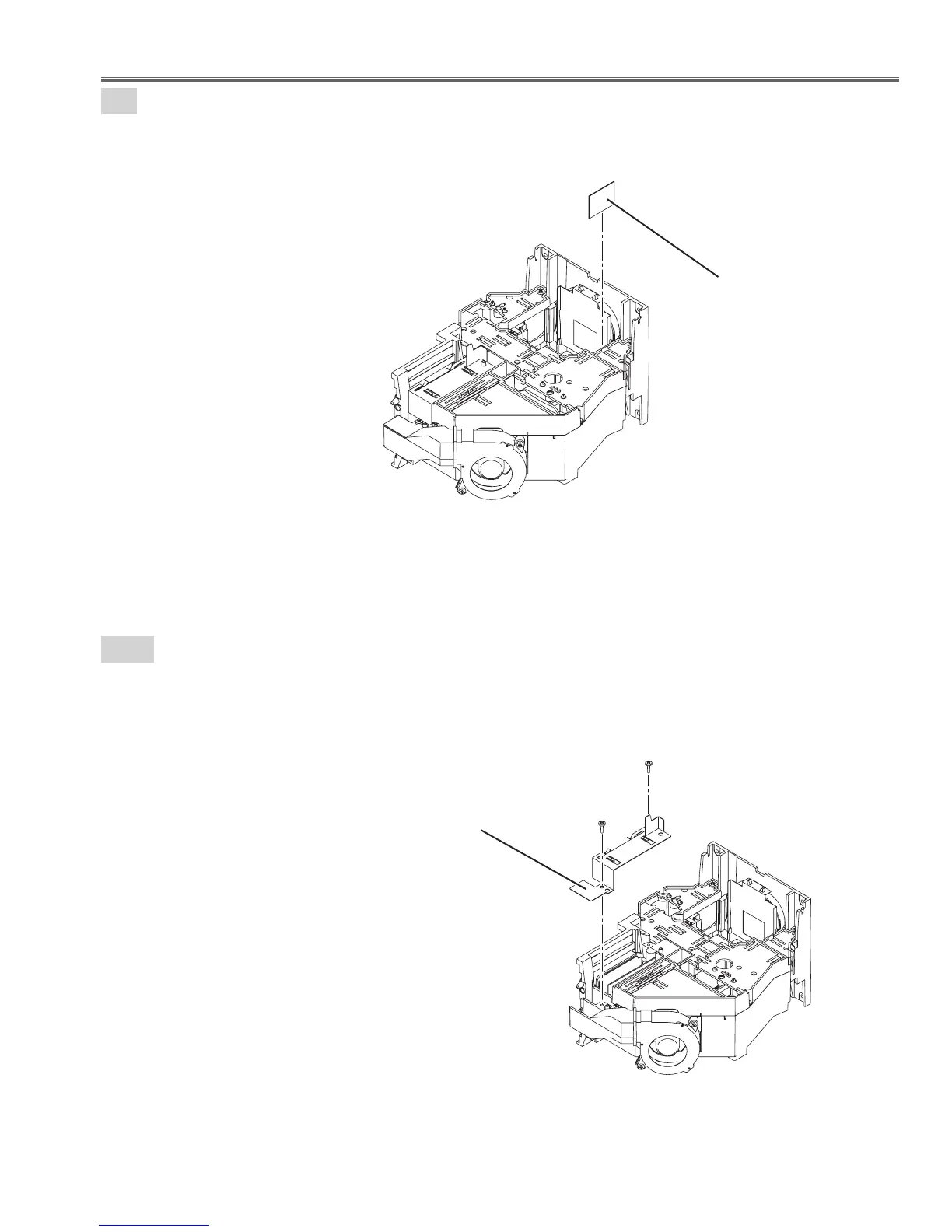

Fig.29
Pre-polarized glass
Fig.30-1
Stopper lens
A
A
Film attached side
comes behind
