-44-
Optical Parts Disassembly
30-2

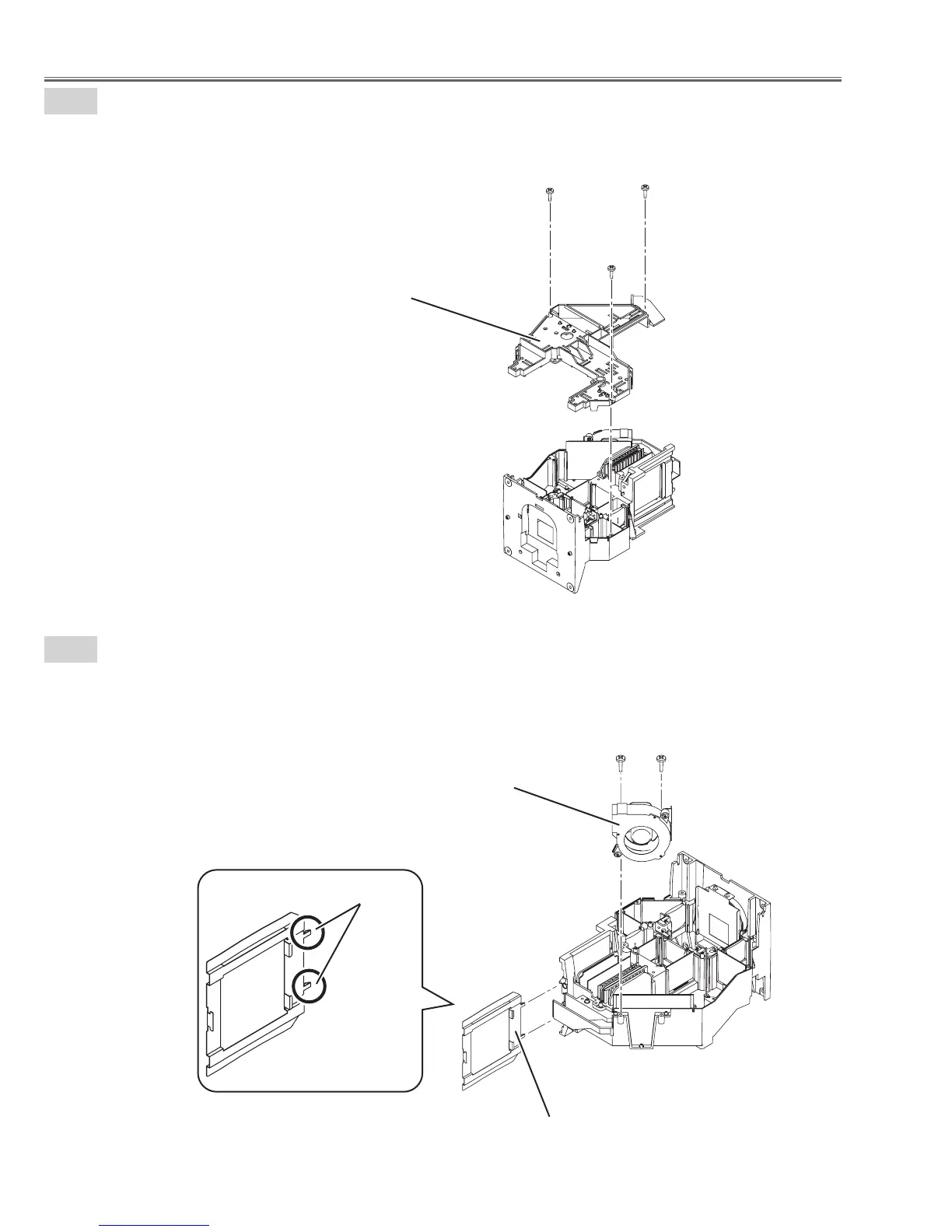

Optical base top removal-2.
1. Remove 3 screws-A(T3X10) and remove the optical base top.
30-3
Optical base top removal-3.
1. Remove 2 screws-A(T3X10) and remove the Fan(FN903) ass'y.
2. Unhook 2 hooks and pull out the Shield plate.
Fig.30-2
Optical base top
A
Fig.30-3
Fan(FN903) ass'y
Hook
Shield plate
A A
A
A
