-11-
Mechanical Disassembly

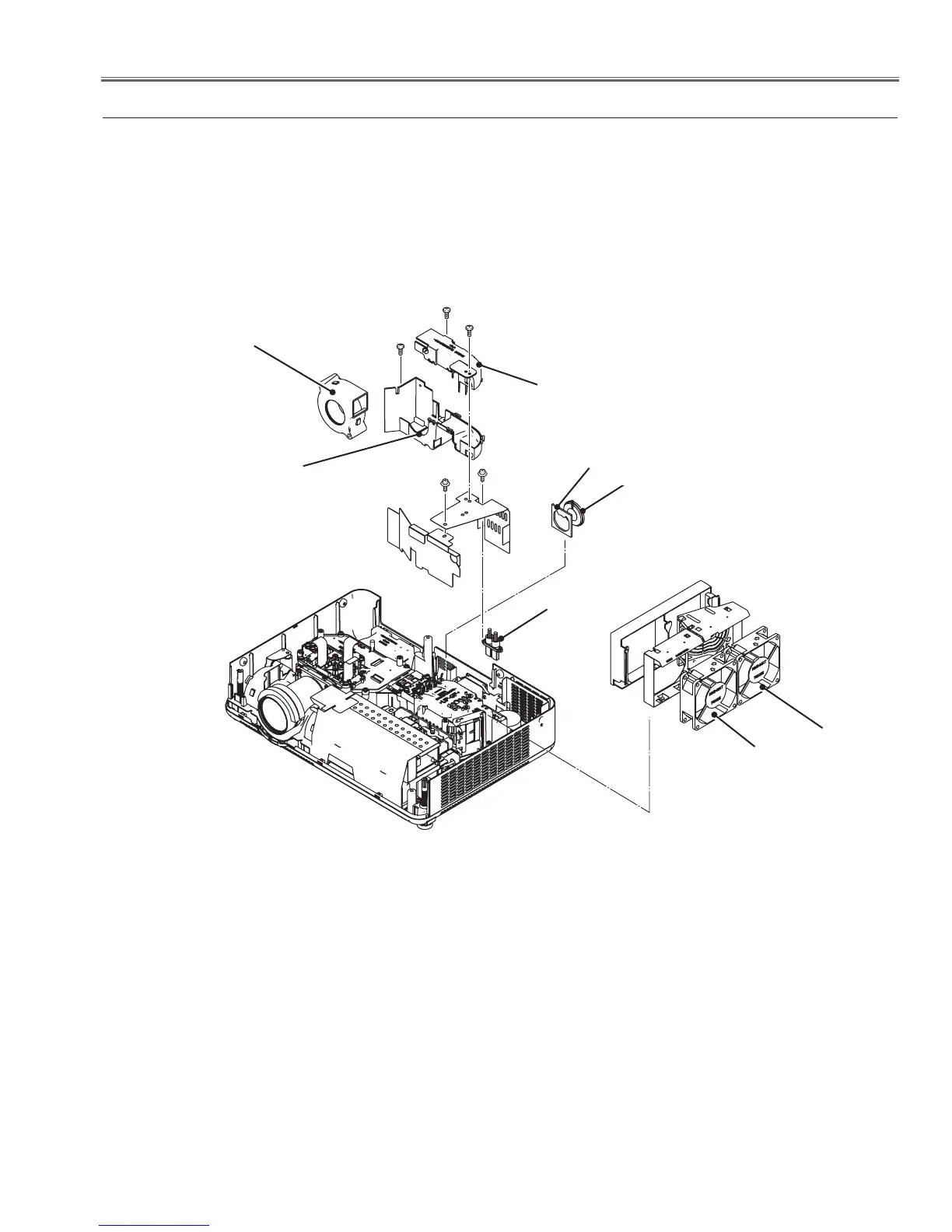

c Fan (FN901, FN902, FN906) removal
Fig.3
Lamp Duct
Bottom
Spacer
Ballast
socket
FN902
FN906
FN901
(M2.5x8)
(M3x7.5)
(T3x8)x2
(M2.5x6)
Lamp Duct
Top
Speaker
