-12-

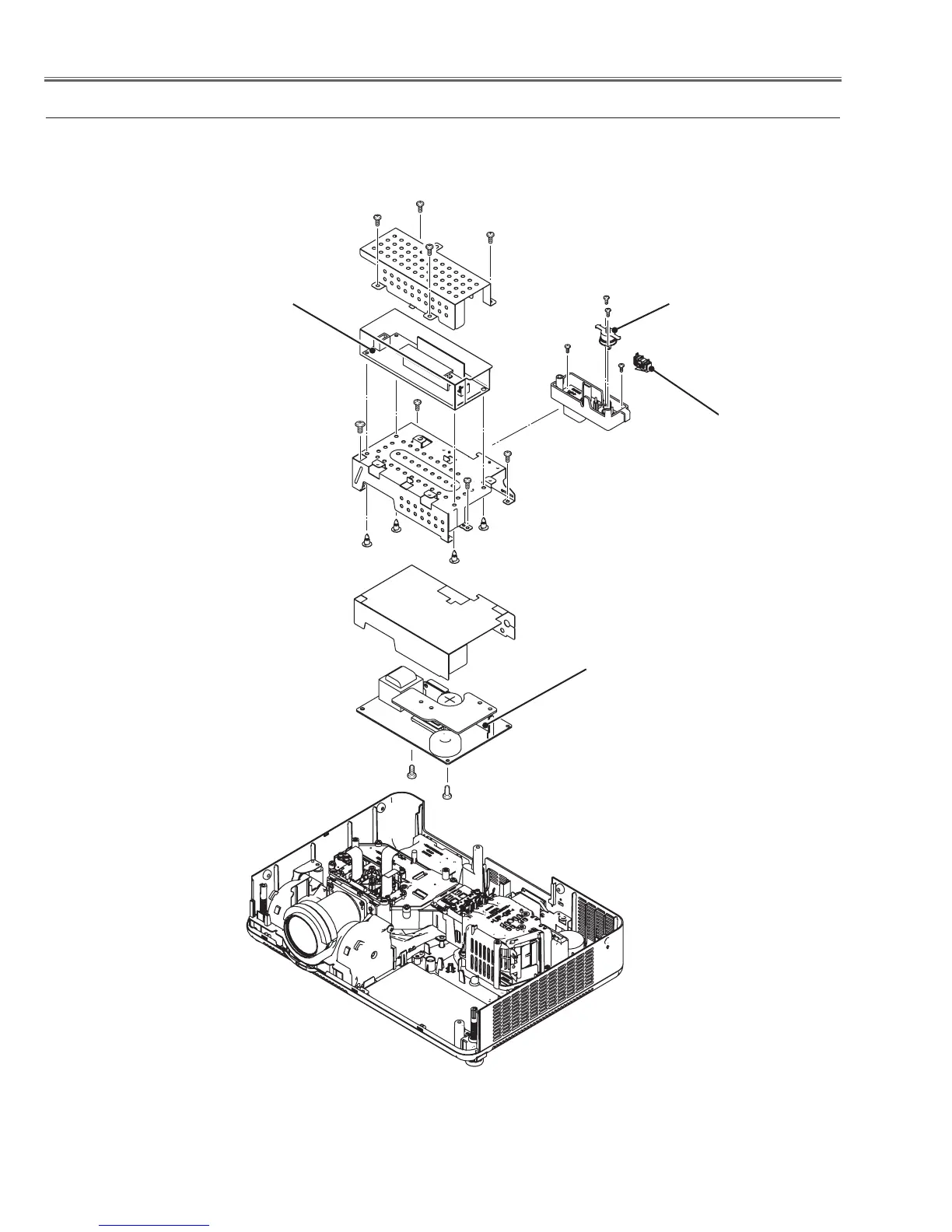

Mechanical Disassembly
Fig.4
v Ballast, Power Board, SW901, SW902 removal
Ballast Board
Thermal Switch
(SW902)
(T3x6)x2
(T3x6)
(T3x6)x3
(M4x8)
(T3x6)x2
(M4x8)
(T3x6)x2
Lamp Cover
Switch (SW901)
Power Board
