Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
( Cables are not supplied with the projector.)
✔ Note:
• When connecting AUDIO OUT to external audio
equipment, the projector’s built-in speaker is
disconnected.
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting cables.

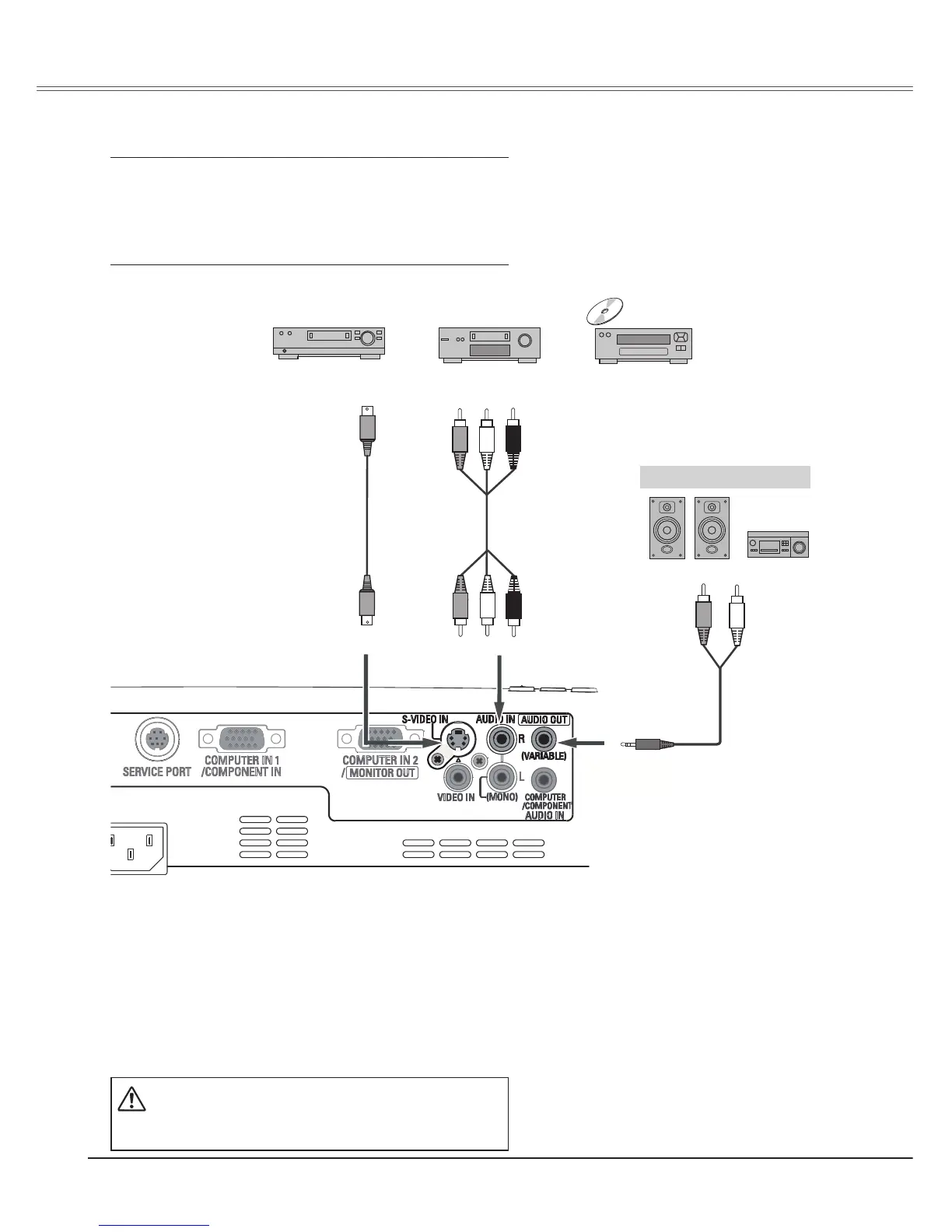

External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable Video and audio cable
Composite Video and Audio OutputS-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R)
(L) (Video)
(Video)
To Next Page
