8

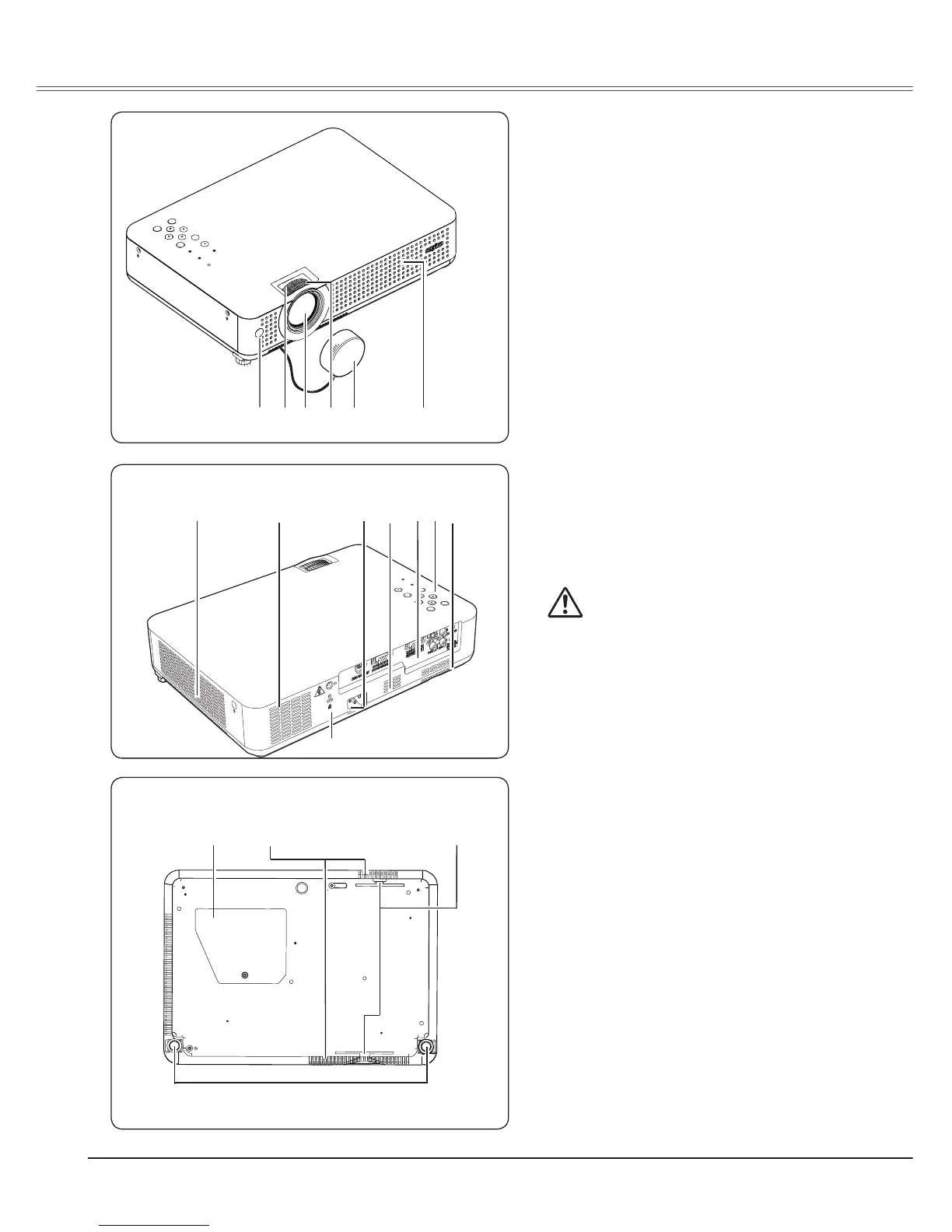

Part Names and Functions
Part Names and Functions
q t ye r
w
Front
Bottom
q Infrared Remote Receiver
w Zoom Ring
e Projection Lens
r Focus Ring
t Lens Cover
(See page 53 for attaching.)
yAir Intake Vent
u Power Cord Connector
i Speaker
o Terminals and Connectors
!0 Top Controls and Indicators
!1 Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
!2 Lamp Cover
!3 Air Intake Vents (back and bottom)
!4 Air Filters
!5 Adjustable Feet
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
Back
!1 u !0oiy
✽
!5
!2 !4!3
y
