Sanyo PLC-XW300

15
Installation
Connecting to Video Equipment
Cables used for connection
9LGHR&DEOH
69LGHR&DEOH
69LGHR9*$&DEOH
$XGLR&DEOHV0LQL3OXJVWHUHR
(Cables are not supplied with the projector. )
3Note:
 :KHQWKH$8',2287LVSOXJJHGLQWKHSURMHFWRUVEXLOWLQVSHDNHULVQRWDYDLODEOH
 6HHSDJHIRURUGHULQJRSWLRQDOFDEOHV
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.

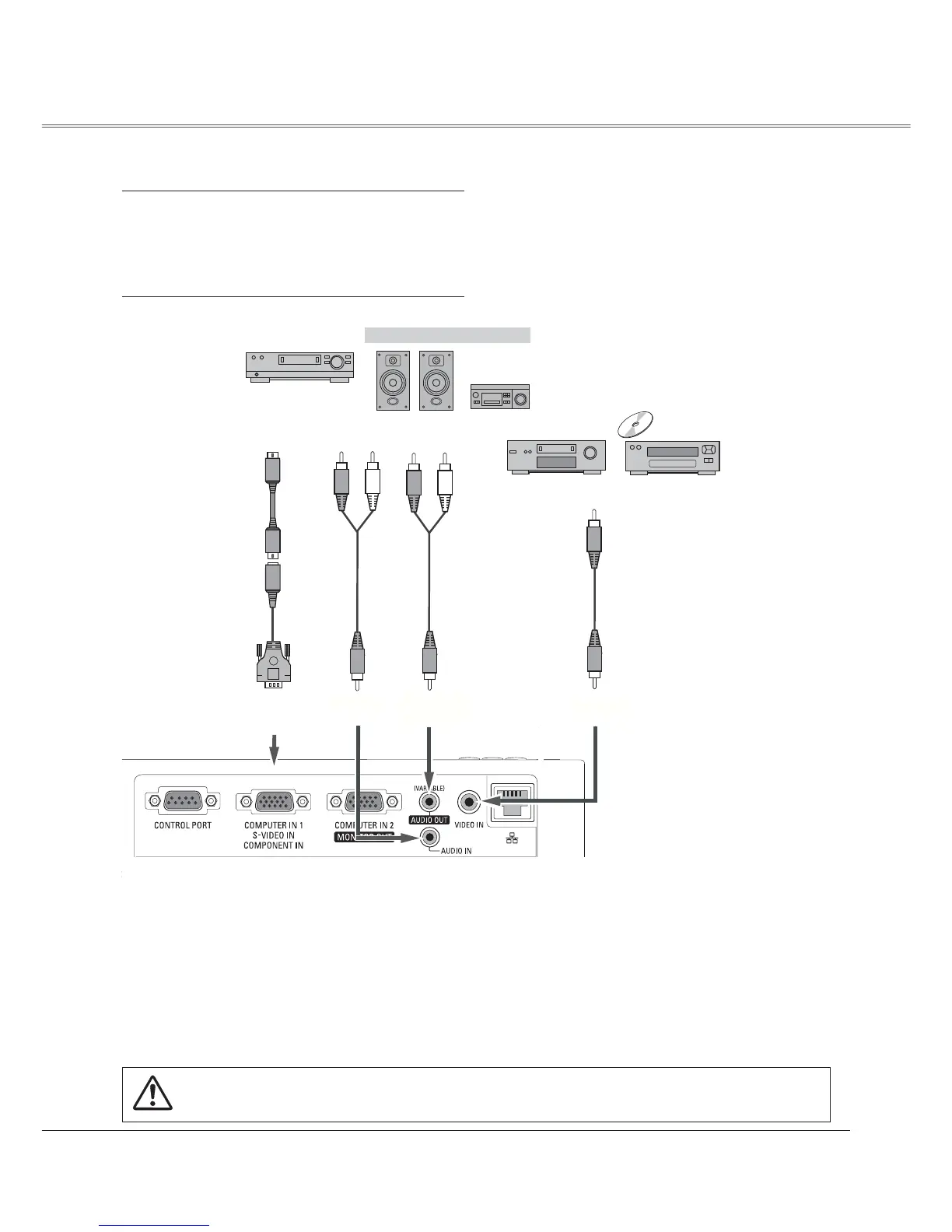

External Audio Equipment
Audio cable
(stereo)
S-Video cable
Composite Video and Audio Output
S-Video Output
Audio Input
AUDIO IN
S-Video-VGA
cable
Video cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
AUDIO OUT
(stereo)
VIDEO IN
Audio cable
(stereo)
Audio Output
