Sanyo PLC-XW300

40
Video Input
Image Adjustment
1
2
Press the Point Ż button to decrease the contrast; press the
Point
Ź button to increase the contrast (from 0 to 63).
Press the Point Ż button to decrease the brightness; press
the Point
Ź button to increase the brightness (from 0 to 63).
Contrast
Brightness
Press the Point Żbutton to lighten red tone; press the Point
Ź button to deepen red tone (from 0 to 63).
White balance (Red)
Press the Point Ż button to lighten green tone; press the
Point
Ź button to deepen green tone (from 0 to 63).
White balance (Green)
Press the Point Ż button to lighten blue tone; press the
Point
Ź button to deepen blue tone (from 0 to 63).
White balance (Blue)
Use the Point ŻŹ buttons to select the desired Color temp.
level (High, Mid, Low, or XLow).
Color temp.
Press the Point Ż button decrease the intensity of the color;
press the Point
Źbutton increase the intensity of the color
(from 0 to 63).
Press the Point ŻŹbuttons to adjust the tint value to get a
proper color balance (from 0 to 63).
Color
Tint
3Note:
 :KHQWKHWhite balance Red, Green or Blue is adjusted, the Color temp. level will change to User.
 7LQWFDQQRWEHVHOHFWHGZKHQWKHYLGHRV\VWHPLVPAL, SECAM, PAL-M or PAL-N (p.38).
 :KHQBlackboard(Green) or Colorboard is selected in Image select, Color temp. will change to
Blackboard or Colorboard.

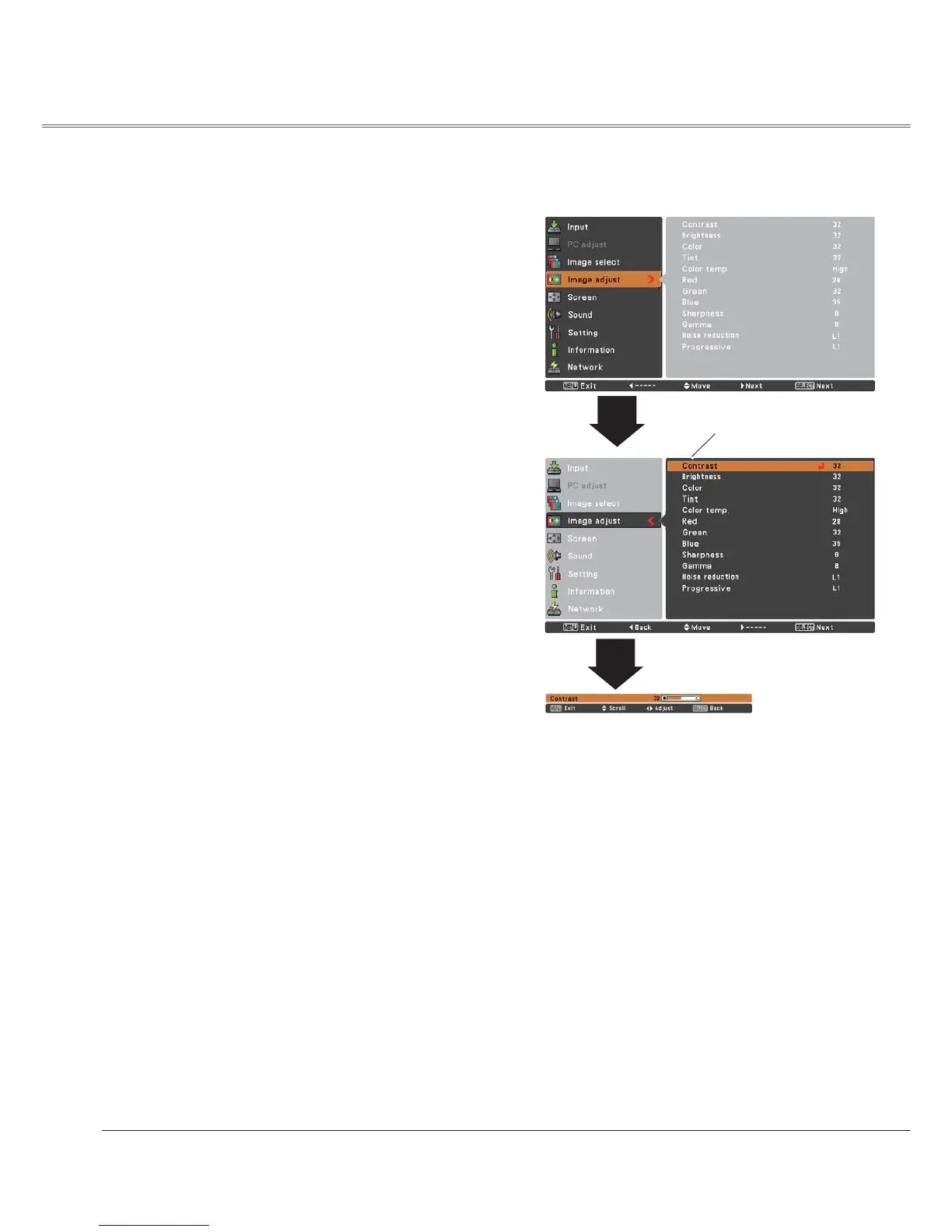

Image Adjust Menu
Press the MENU button to display the On-Screen
Menu. Use the Point
Ÿź buttons to select Image
adjust and then press the Point
Źor the SELECT
button.
Use the Point Ÿź buttons select the desired item
and then press the SELECT button to display the
adjustment dialog box. Use the Point
ŻŹ buttons to
adjust the setting value.
Reset
Store
Selected Image mode
Reset
Store
Use the Point ŻŹ
buttons to adjust the
setting value.
