Sanyo PLC-XW60 - Connecting to Video Equipment

16
Installation

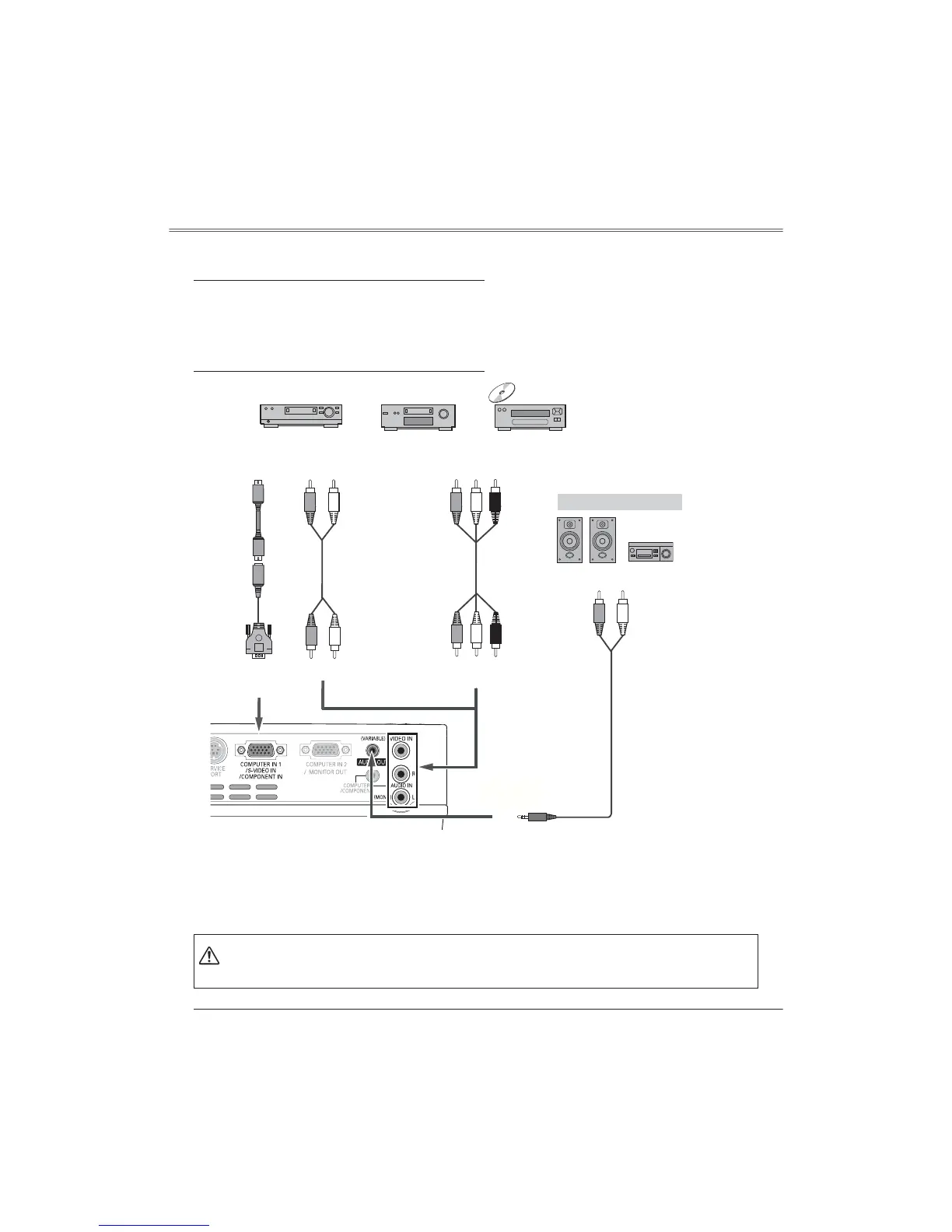

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable 
• S-VIDEO-VGA Cable
• Audio Cable (RCA x 2, Mini Plug: stereo) 
(Not all the cables are supplied with this projector.)
Unplug the power cords of both the projector and external equipment from the AC outlet before
connecting cables.
External Audio Equipment
Audio cable 
(stereo)
VIDEO IN
COMPUTER IN 1/
S-VIDEO IN
/COMPONENT IN
S-video
cable 
Video and audio cable 
Composite Video and Audio Output
S-video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L)
(Video)
(Video)
(R) (L)
(R) (L)
S-video-
VGA cable 
Audio cable 
(stereo)
Notes:
•
When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 72 for ordering optional parts.
