Sanyo PLUS Q50 - Mechanism Parts and View; Mechanism Component List; Mechanism Exploded Diagram

PARTS LIST
Key No. Part No. Description Q'ty
MECHANISM
M56
4-264T-08400
Magnetic Coil
1
M57 141-2-488T-01302
Pin
1
M58
141-2-742T-43800
Lever
1
M59
141-2-742T-43900
Lever
1
M60
141-0-742T-44000
Lever Ass'y
1
M61
141-2-855T-47600
Spring Coil
1
Key No.
Part No. Description
Q'ty
MECHANISM
M62
141-2-465T-17300
Stopper
1
M63
141-0-747T-19100
Bracket Lever Ass'y
1
M64 141-2-742T-45400
Lever
1
M65
141-2-855T-47700
Spring Coil
1
M66
Diode 1N4003 (D28)
1

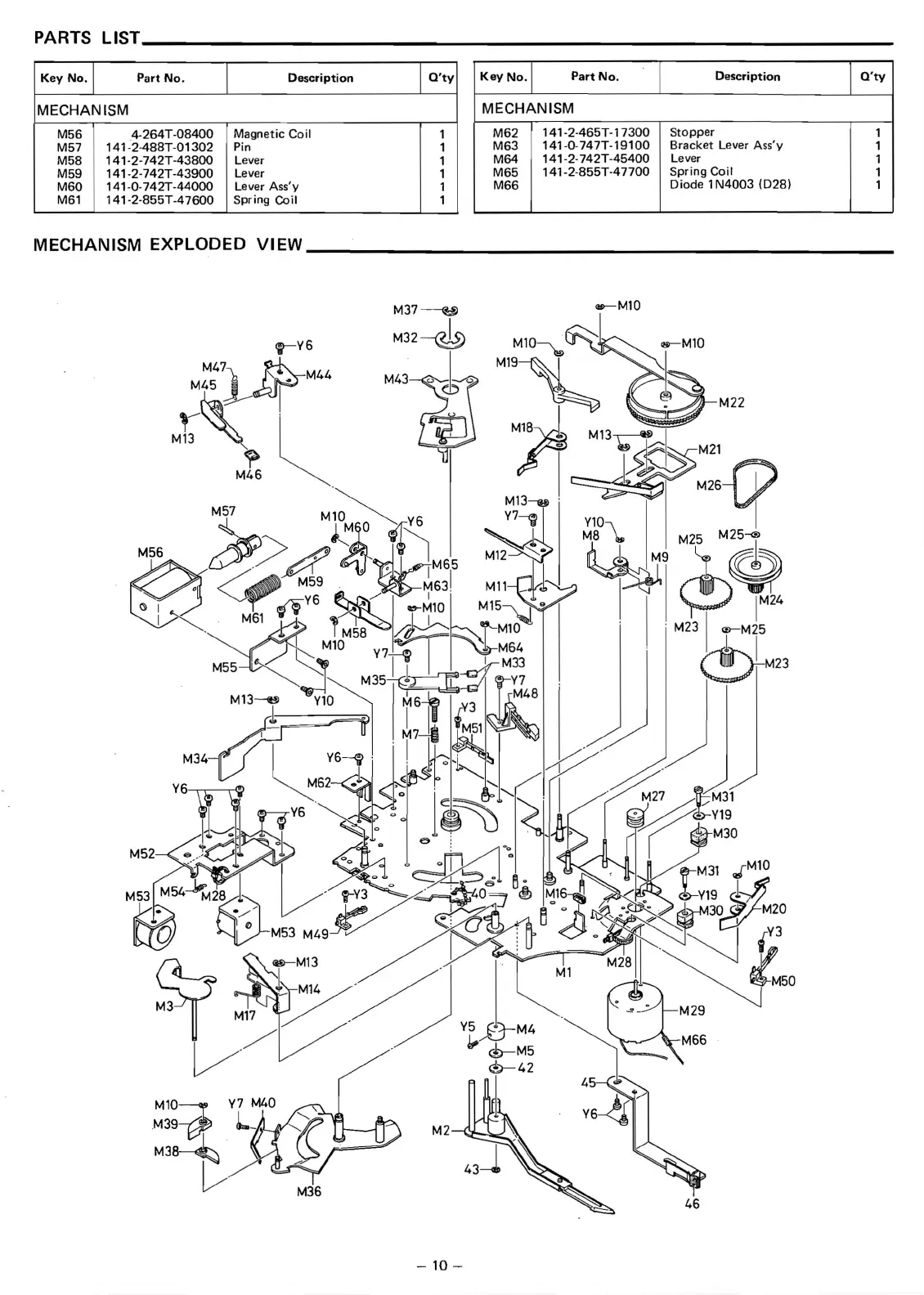

MECHANISM EXPLODED VIEW ___________________________________________________________
M37---- ®—MIO
- 10 -
