9-1-2. Opening and shutting front panel
(1) Pull down horizontal blade by pulling forward. (Fig.4)
Support the front panel by one hand, while remove the rotation axis at the upper center
by the other hand. And pull out the front panel forward to remove.
(2) Remove horizontal blade by pulling forward. (Fig.5)
NOTE
(3) Hook a finger onto the projection part provided on the both sides of the unit's panel and open
up the panel to the position higher than it will stop. (Fig.6)
1. Left and right filters are interchangeable.
2. To re- install, insert air filter along the guide.
(4) Remove the front panel from the unit. (Fig.7)
NOTE

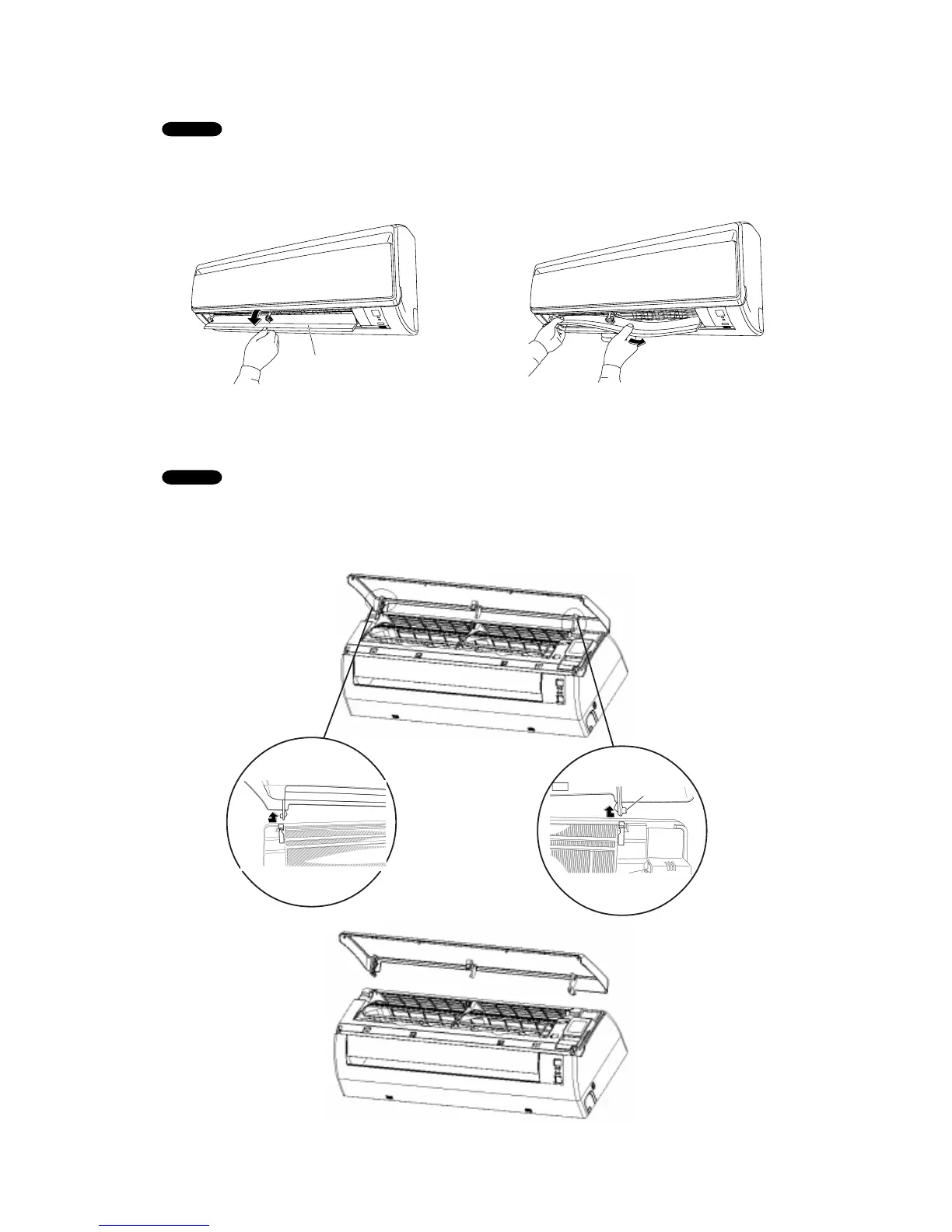

Fig. 4 Fig. 5
Fig. 6
Fig. 7
Horizontal blade
Rotary shaft
Rotary shaft
