9-2. Disassembly Procedure of Outdoor Unit
To avoid electrical shock hazard, be sure to disconnect all power and wait
10 minutes or more before attempting to disassemble the unit.
Warning
9-2-1. Removing the stop valve cover

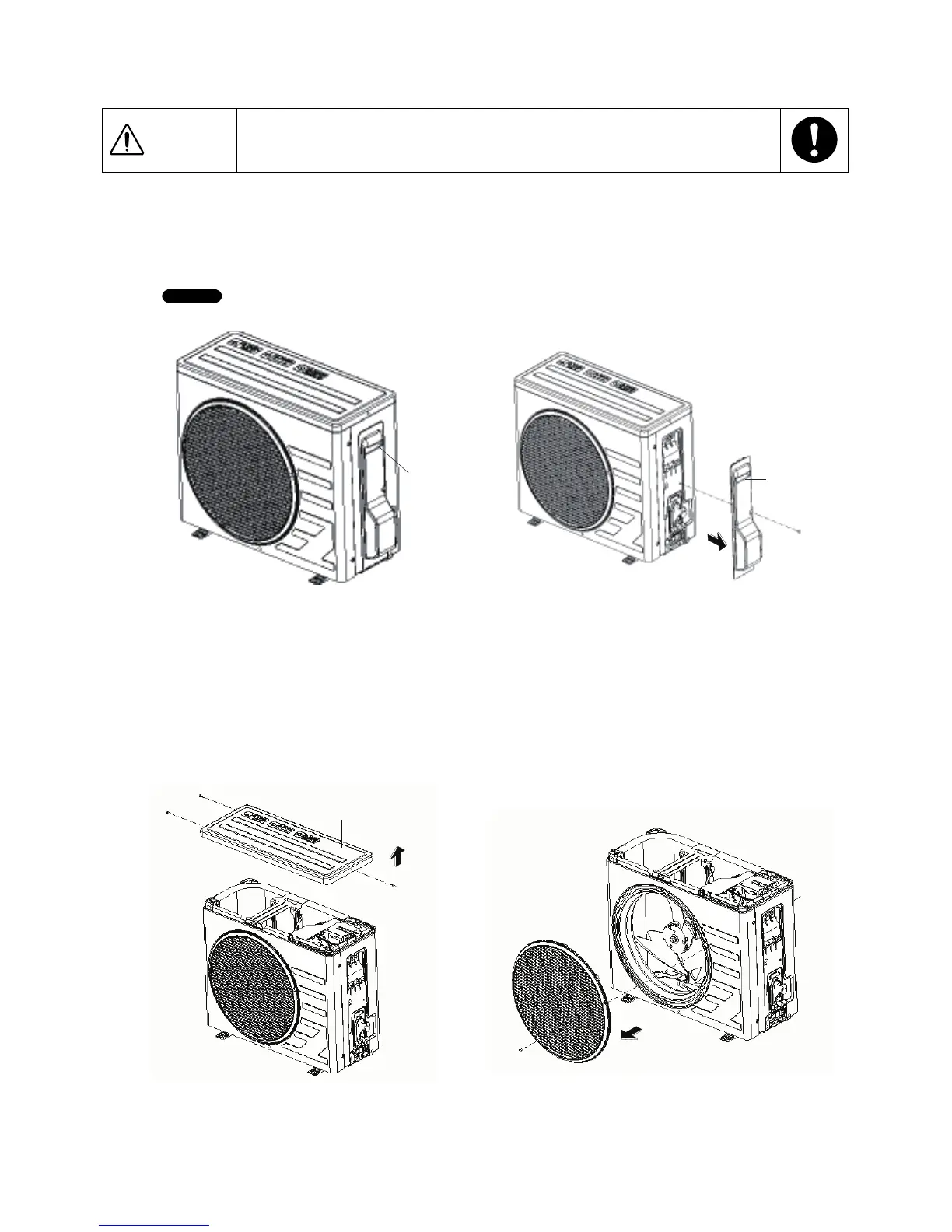

(1) Loosen the screw of the stop valve cover. (Fig.51 and Fig.52)
Pull down the stop valve cover and remove it.
 The stop valve cover has 5 hooks.
9-2-2. Removing air filters
(1) Loosen the 3 screws (front, right and left) and lift the top panel. (Fig.53)
(2) Loosen a screw and remove the discharge grill. (Fig.54)
NOTE
Fig. 51 Fig. 52
Handle
Stop
valve
cover
Top panel
Fig. 53 Fig. 54
55
