9. DISASSEMBLY PROCEDURE
9-1. Disassembly Procedure of Indoor Unit
To avoid electrical shock hazard, be sure to disconnect all power and wait
10 minutes or more before attempting to disassemble the unit.
Warning
9-1-1. Remove the air filters

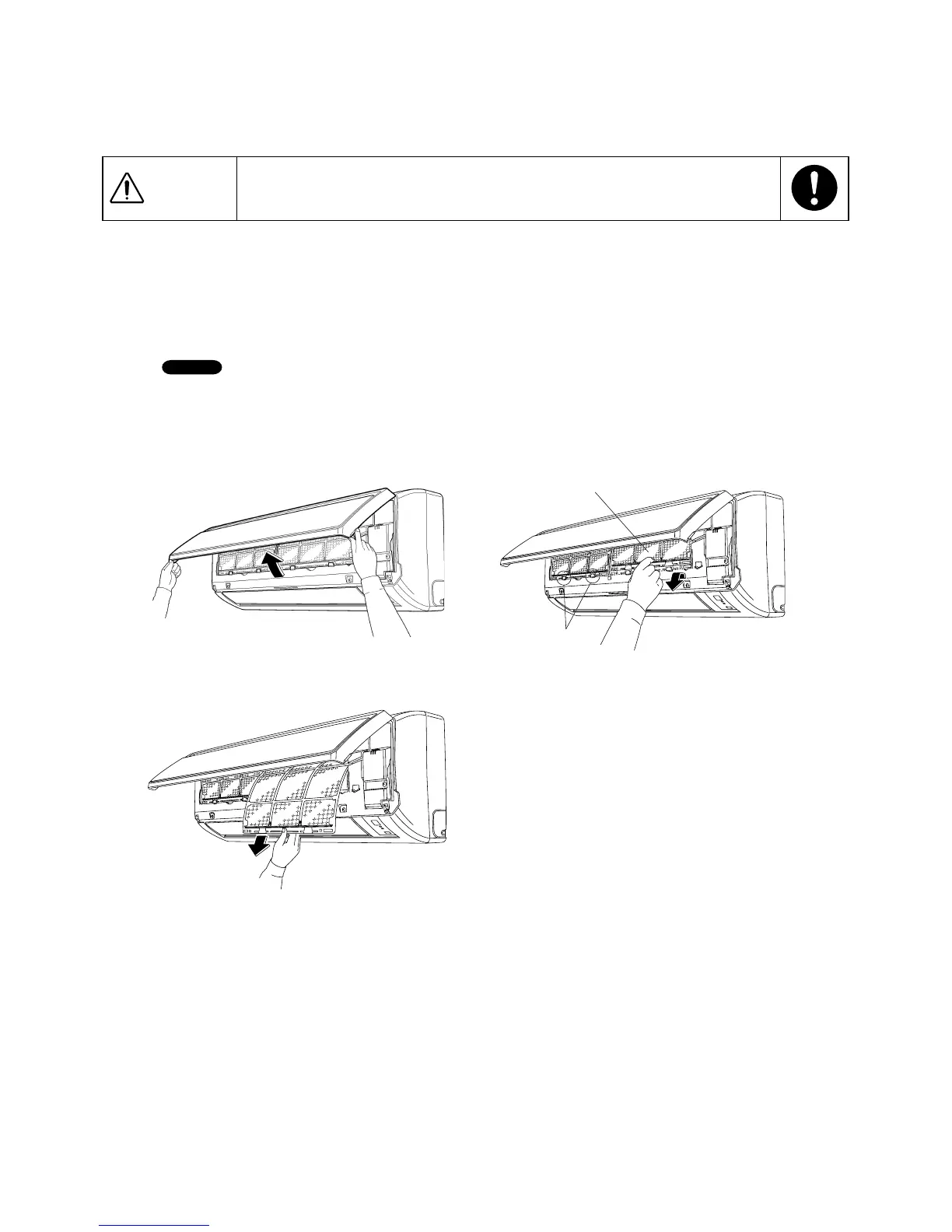

(1) Pull protrusions on left and right sides of panel with fingers and open front grille all the way. (Fig.1)
(2) Lift center section of air filter and disengage hooks. (Fig.2)
1. Left and right filters are interchangeable.
2. To re- install, insert air filter along the guide.
(3) Remove air filter by pulling forward. (Fig.3)
NOTE
Hooks
Air filter
Fig. 1
Fig. 3
Fig. 2
