SINGLE IMAGE RECORDING
The single image recording function of this VCR can be
used to create image data files or animations.
Single Image Recording Setup
œ Follow the Before starting steps, under “NORMAL
RECORDING”.
1
In stop mode, press the REC/PLAY SPEED l (or
j) button, to set the recording speed to “000”.
2
Press the MENU button to display the MAIN MENU.
3
Turn the JOG dial to select the “5.ALARM/SERIES
REC SET” line, then turn the SHUTTLE ring
clockwise.
ø The (ALARM/SERIES REC SET) menu
appears.
<ALARM/SERIES@REC@SET>
*ALARM@SET
@@MODE@@@@@@@@@@@Y1
@@SPEED@@@@@@@@@@3H
@@DURATION@@@@@@@20S
*1@SHOT@SET
@@FIELD@@@@@@@@@@1
@@INTERVAL@@@@@@@1M
*SERIES@REC@@@@@@N
*TAPE@END@OUT@@@@3:00
4
Turn the JOG dial until the “FIELD” setting is
highlighted, then turn the SHUTTLE ring clockwise.
5
Turn the JOG dial to set the number of fields
(images) to record every time(1, 2, 3, 4, 5, 10, 30,
60), then turn the SHUTTLE ring clockwise.
6
Turn the SHUTTLE ring clockwise.
7
Turn the JOG dial to set the interval between each
image recording (1M, 2M, 3M), then turn the
SHUTTLE ring clockwise.
8
Press the MENU EXIT button.
9
Press the REC button.
ø The single image recording mode will be
activated (the VCR will be in recording stand-by
mode).
F
Press the REC button one more time, or send a
trigger through the 1 SHOT IN terminal on the back
panel, to start the single image recording.
NOTE:
œ If a setting other than “1” is selected for “FIELD” at
step 5, recording will be done in 120-hour mode.
The recording speed cannot be modified.
G
When finished, press the STOP button.
NOTES:
œ The trigger at the 1 SHOT IN terminal should be on
for 0.1 sec. or more.
œ The trigger interval at the 1 SHOT IN terminal varies
according to the number of images to record, but
should be over 1 sec.
œ Alarm recording is not possible during single image
recording.
œ During the “INTERVAL” period set for single image
recording, the WARNING OUT terminal will not be 0 V
even if the “NON REC” on the (WARNING
OUT/CONTROL SET) menu is set to “Y”.
œ If a single image recording trigger is not received (or if
the REC button is not pressed) during the duration set
for “INTERVAL”, single image recording will be
conducted automatically after the set duration.
œ If a single image recording trigger is received (or if the
REC button is pressed) during the duration set for
“INTERVAL”, single image recording will be
conducted immediately.
œ When using the 1 SHOT IN terminal, connect a
make-contact switch (no voltage) between the 1
SHOT IN and COM terminals.

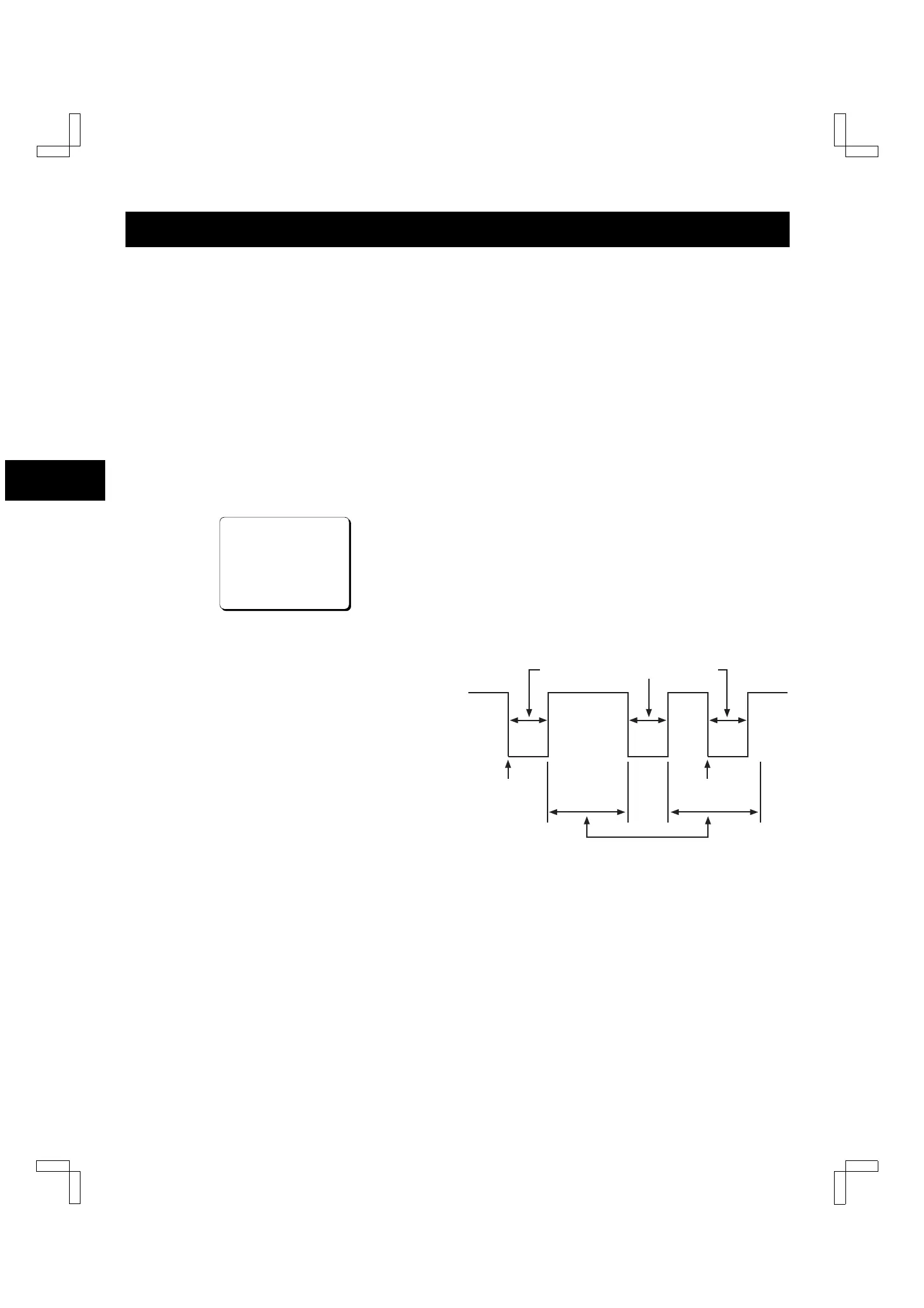

Recording of set number of images
“INTERVAL” setting (1, 2 or 3 minutes)
Input of single
image recording
trigger
Input of single image
recording trigger
RQ4Q/EX (TLS-1960P GB) Wed. May, 08/2002
English
33
To Next Page
