LOCATIONS OF CONTROLS AND INDICATORS

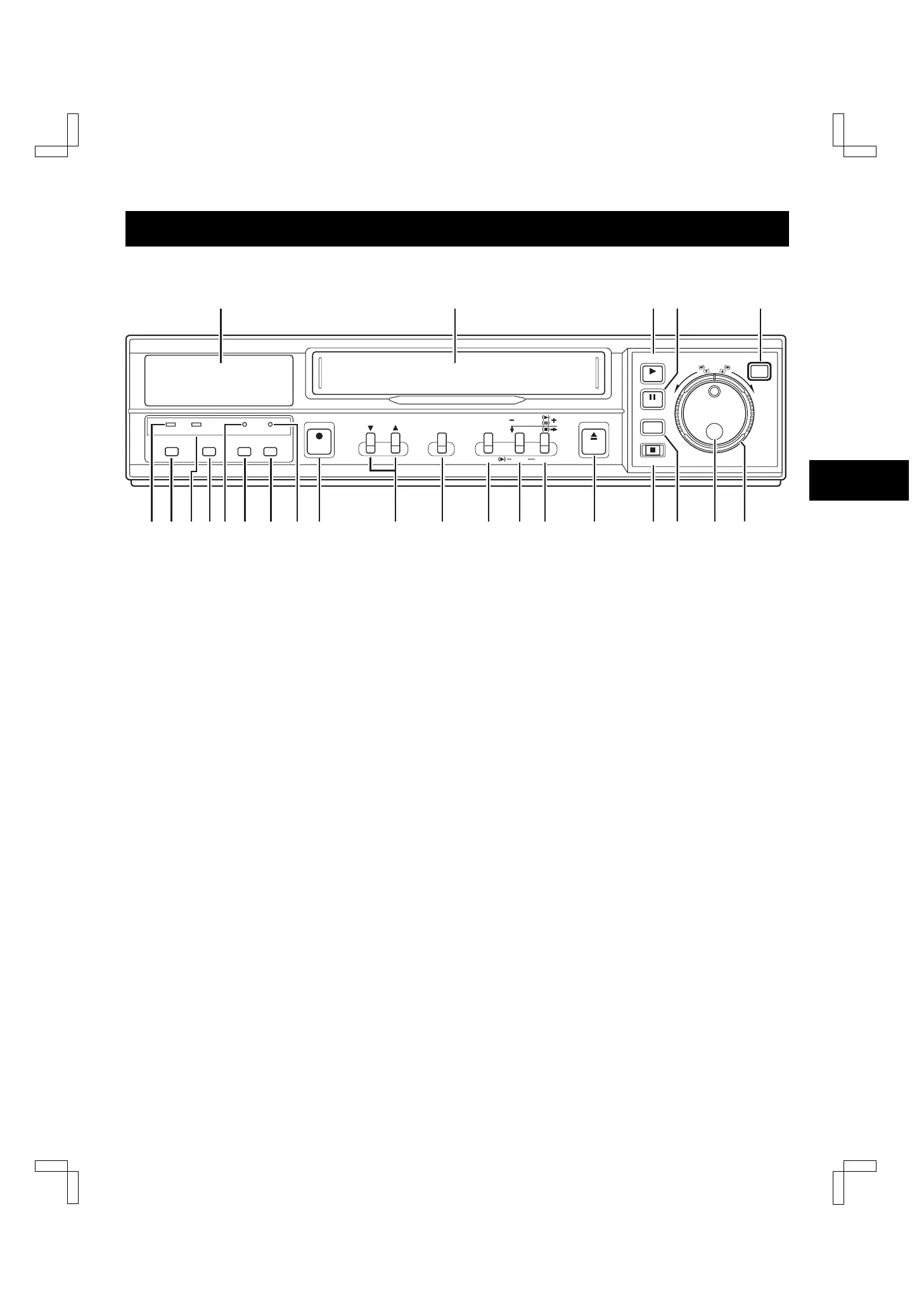

Front Panel
1
Digital display panel
2
Cassette loading slot
3
PLAY button
REC CHECK button
4
STILL/PAUSE button
5
MENU button
SHUTTLE HOLD button
6
SHUTTLE ring
7
JOG dial
8
SEARCH button
MENU EXIT button
AUDIO ON button
9
STOP button
F
EJECT button
G
TRACKING + button
V. LOCK + button
SHIFT « button
SHARP button
H
TRACKING – button
V. LOCK – button
SHIFT ] button
SOFT button
I
ON SCREEN button
SHARPNESS button
J
TIMER button
K
REC/PLAY SPEED j, l (decrease or increase
recording/playback speed mode) button
L
REC (record) button
M
ALL RESET button
N
COUNTER MEMORY button
O
COUNTER RESET button
P
MENU RESET button
Q
SECURITY LOCK button
R
REPEAT (autorepeat recording) indicator
S
STANDBY/ON button
T
ON (power on) indicator
NOTE:
œ Buttons G, H and K are also used for menu setting.
S
H
U
T
T
L
E
C
L
E
A
R
/
R
E
W
F
F
/
E
N
T
E
R
JOG
SHUTTLE
HOLD
REC CHECK
MENU EXIT
AUDIO ON
PLAY
STOP
EJECT
ON REPEAT
MENU RESET ALL RESET
SEARCH
STILL/PAUSE
MENU
SECURITY
LOCK
STANDBY/
ON
REC/PLAY
SPEED
TIMER ON SCREEN
SHIFT
SOFT SHARPSHARPNESS
V. LO CK
COUNTER
RESET MEMORY
REC
TRACKING
2 3 4 5
89 7 6FGHIJKLNOQS RT MP
