Sanyo TLS-1960P - Sw out Terminal

OUTPUT TERMINALS
SW OUT Terminal
When recording, a pulse signal is output at the SW OUT
terminal.
This terminal is usually connected to the switch input
(SW IN) of devices like a camera switcher unit, or a quad
compressor.
SW OUT Terminal Output Setting
1 Press the STANDBY/ON button.
2 Press the MENU button to display the MAIN MENU.
3 Turn the JOG dial to select the “2.DISPLAY/SW
OUT SET” line, then turn the SHUTTLE ring
clockwise.
ø The (DISPLAY/SW OUT SET) menu appears.
<DISPLAY@SET>@@@@SET@UP
DATE@@@@@@@@@@@@@Y
TIME@@@@@@@@@@@@@Y
SPEED@@@@@@@@@@@@Y
ALARM@COUNT@@@@@@Y
<SW@OUT@SET>
TIMING@@@@@@@@@@@FIELD
FIELD@@@@@@@@@@@@1
3H@MODE@@@@@@@@@@Y
4
Turn the JOG dial until the “TIMING” setting is
highlighted, then turn the SHUTTLE ring clockwise.
5
Turn the JOG dial to select the desired output timing,
then turn the SHUTTLE ring clockwise.
FIELD. . . . . . 1 pulse is output after each set
number of fields.
FRAME . . . . 1 pulse is output after each set
number of frames.
6
Turn the SHUTTLE ring clockwise.
7
Turn the JOG dial to select the desired pulse signal
interval (1, 2, 3, 4, 5, 10, 30 or 60), then turn the
SHUTTLE ring clockwise.
œ If “TIMING” is set to FRAME (see step 5),
“FRAME” will be indicated instead of “FIELD”.
8
Turn the SHUTTLE ring clockwise.
9
Turn the JOG dial to select the desired “3H” mode,
then turn the SHUTTLE ring clockwise.
Y. . . . . . . . . . When recording in 3-hour mode, a
pulse signal is output.
N. . . . . . . . . . When recording in 3-hour mode, a
pulse signal is not output.
F
Press the MENU EXIT button.

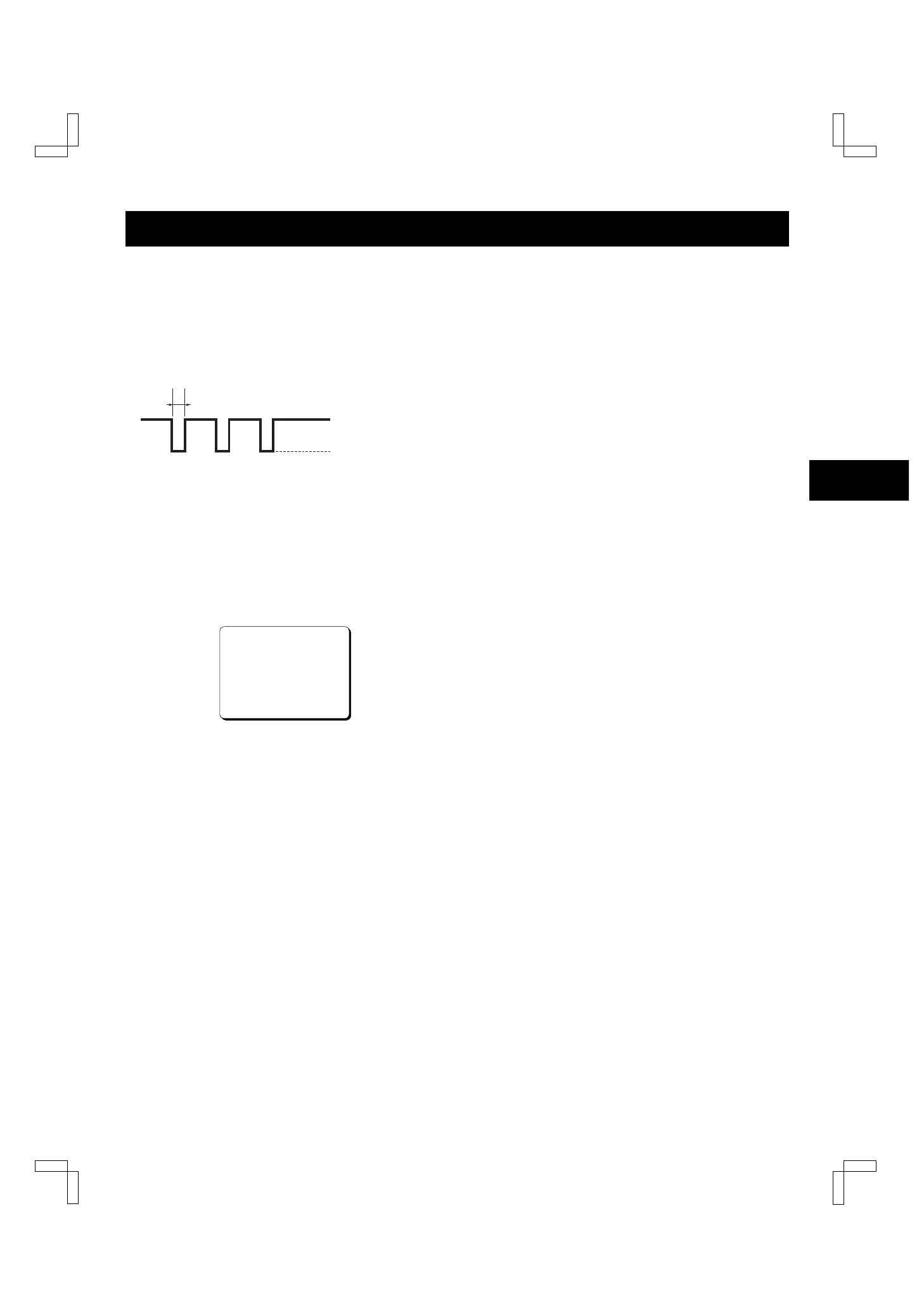

5V (H)
0V (L)
(Output impedance: 5.7 kΩ)
FIELD: 20 msec.
FRAME: 5 msec.
