OUTPUT TERMINALS
TAPE END OUT Terminal
œ During recording, when the end of the tape is reached
or when the tape counter reading indicates 3 hours,
the output becomes 0V (Low). During autorepeat
recording, the output becomes 0 V (Low) for about 2
seconds only.
œ To reset the output, press the STOP or EJECT button.
TAPE END OUT Terminal Output Setting
1
Press the STANDBY/ON button.
2
Press the MENU button to display the MAIN MENU.
3
Turn the JOG dial to select the “5.ALARM/SERIES
REC SET” line, then turn the SHUTTLE ring
clockwise.
ø The (ALARM/SERIES REC SET) menu
appears.
<ALARM/SERIES@REC@SET>
*ALARM@SET
@@MODE@@@@@@@@@@@Y1
@@SPEED@@@@@@@@@@3H
@@DURATION@@@@@@@20S
*1@SHOT@SET
@@FIELD@@@@@@@@@@1
@@INTERVAL@@@@@@@1M
*SERIES@REC@@@@@@N
*TAPE@END@OUT@@@@3:00
4
Turn the JOG dial until the “TAPE END OUT” setting
is highlighted, then turn the SHUTTLE ring clockwise.
5 Turn the JOG dial to select the desired mode, then
turn the SHUTTLE ring clockwise.
3:00 . . . . . . . The output becomes 0 V (Low)
when the tape counter reaches
“3H 00M 00S” and/or when the
tape reaches the end.
END . . . . . . . The output becomes 0 V (Low)
when the tape reaches the end.
NOTES:
œ If the “SERIES REC” is set to “Y” in the
(ALARM/SERIES REC SET) menu, the output
becomes 0 V (Low) for about 2 seconds when the
counter reaches “3H 00M 00S”, even if the “TAPE
END OUT” is set to “END”.
œ If the “SERIES REC” is set to “Y” in the
(ALARM/SERIES REC SET) menu, the output
becomes 0 V (Low) until 5 minutes have passed
after the tape reaches the end.
6
Press the MENU EXIT button.
COM Terminal
œ Common GND (ground) terminal when connecting
other terminals to external devices.

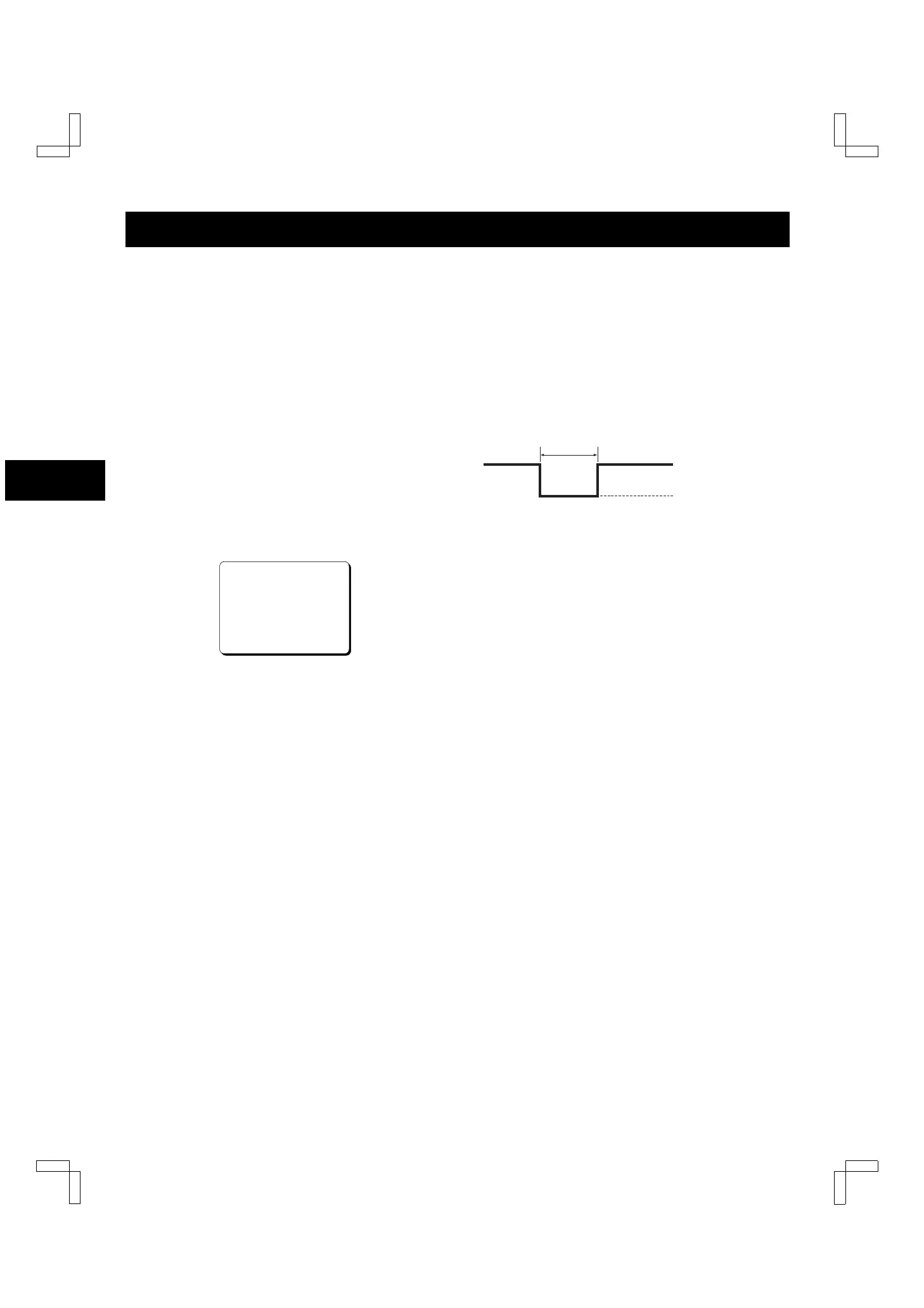

TIMER OUT Terminal
œ During timer recording, the output becomes 0 V.
œ During timer recording stand-by mode, the output is 5
V (High).
Timer recording
5V (H)
0V (L)
(Output impedance: 5.7 kΩ)
RQ4Q/EX (TLS-1960P GB) Wed. May, 08/2002
English
45
