Sanyo VPC-CS1 Service Manual

– 14 –

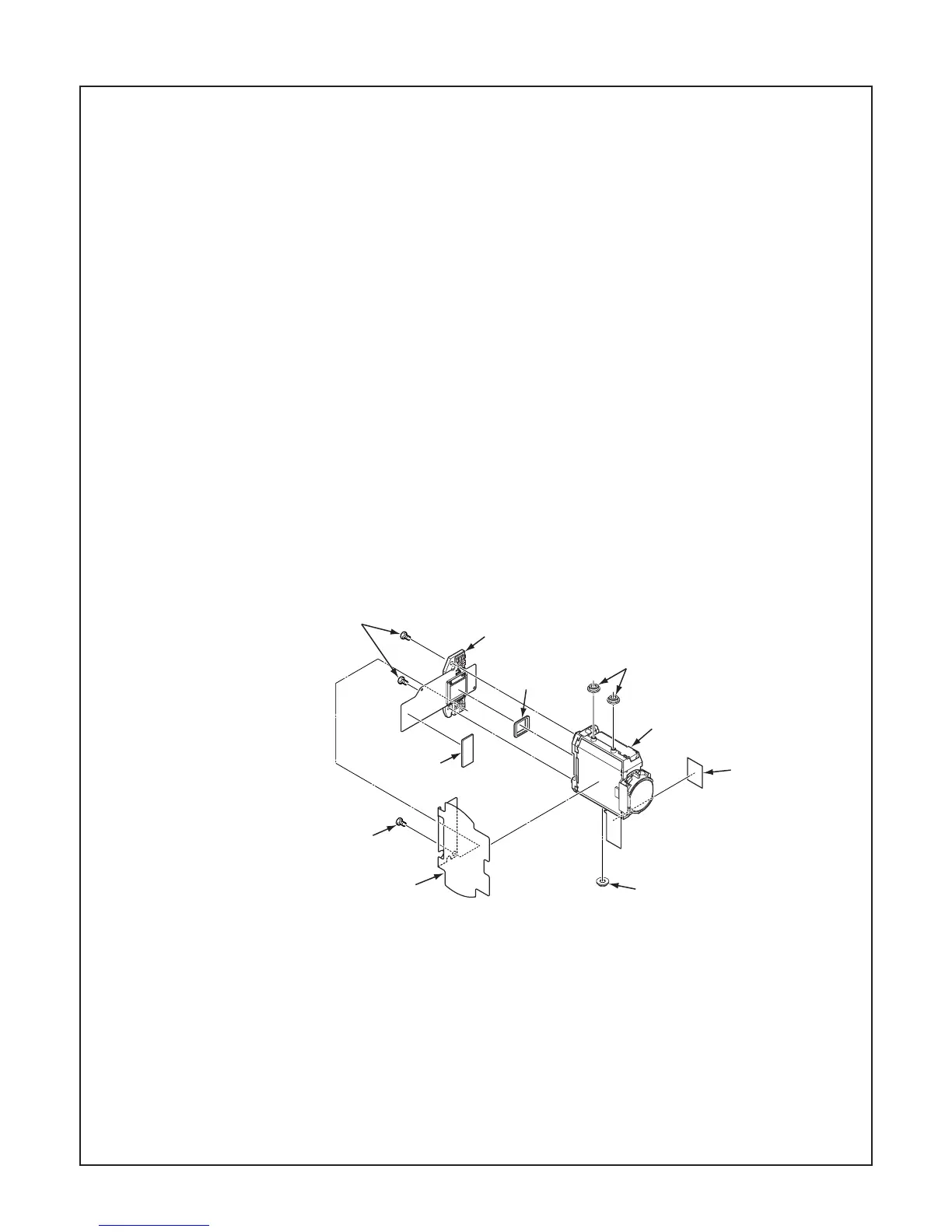

2-4. REMOVAL OF LENS (ASSY)
1. Spacer CA
2. Pad lens
3. Spacer lens FPC
4. Screw 1.4 x 3.5
5. Spacer CMOS
6. Two screws 1.4 x 3.5
7. Assy, unit CCD
8. Spacer lens
9. Lens (assy)
3
9
2
8
7
6
B
A
1
4
5
2
When assembling,
tighten the screws order.
A → B
