Dual-Faced / Flag Mounted Clock Mechanical Installation

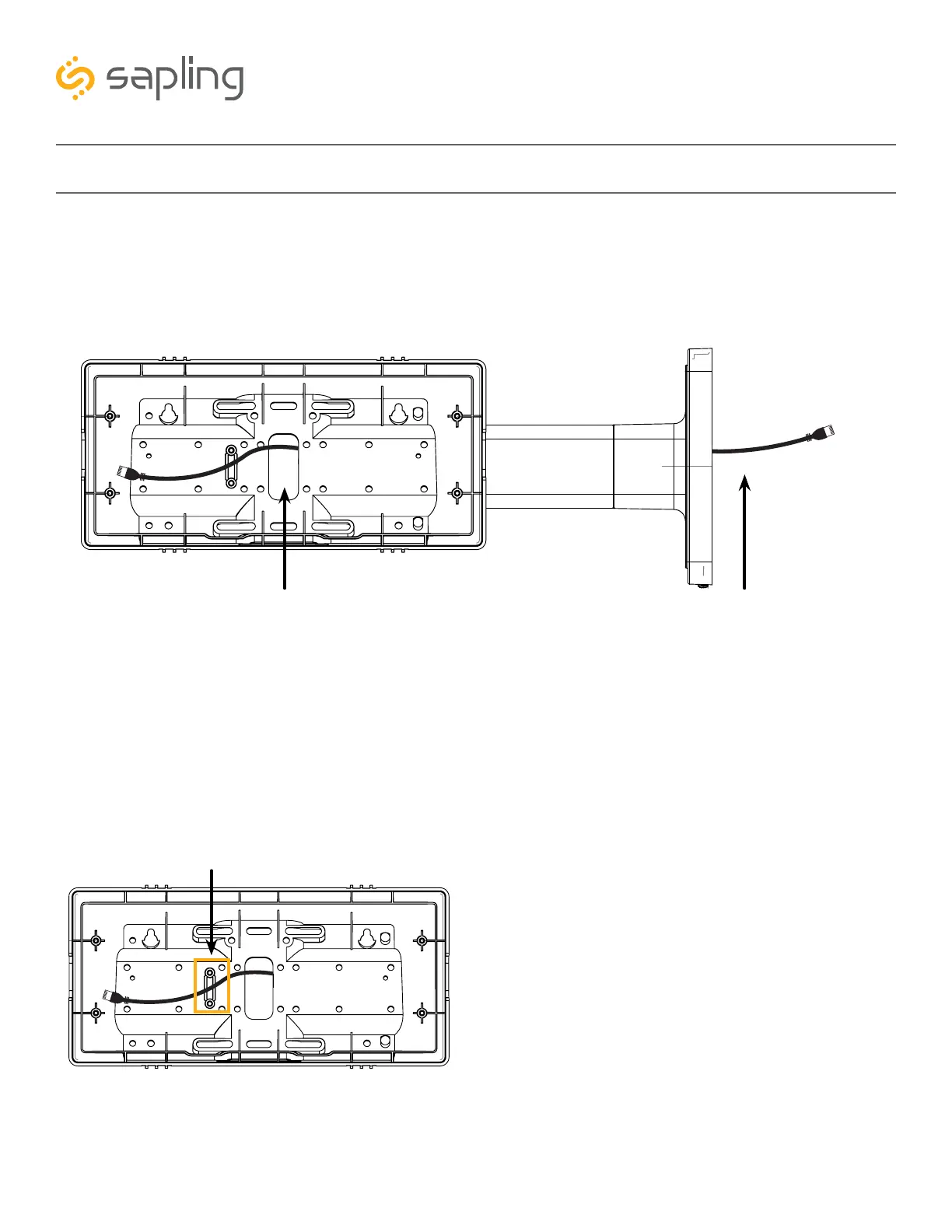

11) The standard pole length is 13.7” (34.8 cm) and the short pole length is 7.75” (19.7cm). Make sure
to run the network cable with the needed length from point A to point B, as shown in the below
image. The network cable is to be threaded from the gang box (through the pole base plate) into the
pole, and through the hole located towards the far side of the pole and into the clock.
12) Once the network cable is threaded through
the pole and into the clock housing, use the wire
clamp to secure it. The wire clamp is mounted in
the clock housing, and can be opened by using a
Phillips head screwdriver.
13) To proceed with the installation instructions,
please follow the “Uniform Stage Installation”
section in this manual. Once done, to complete
the dual-faced or flag mounted clock installation,
follow the next additional step.
wire clamp
Point APoint B
To Next Page
