Sartorius CISL3 - General View of the Equipment

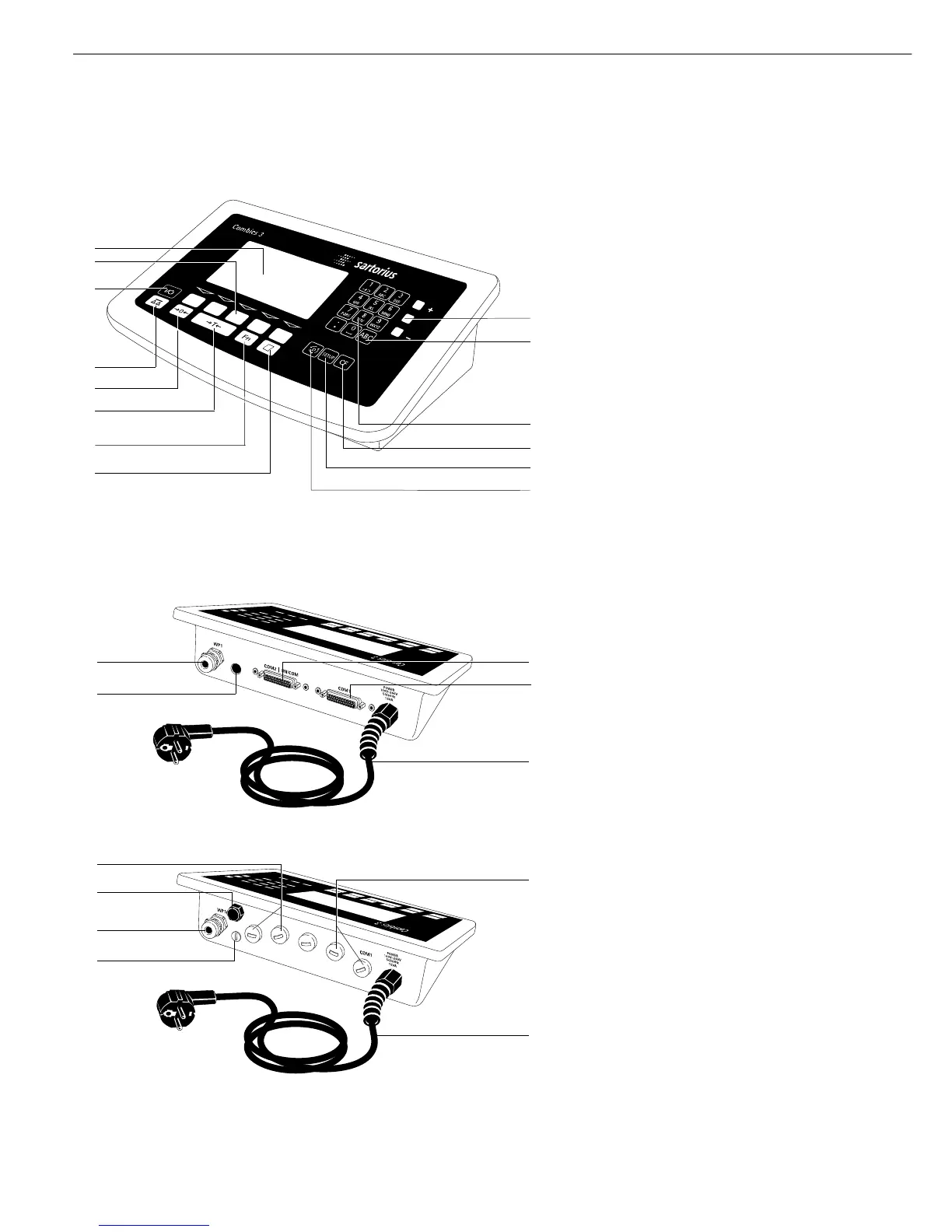

Display and Keypad
1 LEDs (for checkweighing and
classification)
2 Toggle to alphabetical input
3 Alphanumeric keypad
4 CF key (clear function)
5 Settings: Access Setup program
6 Toggle to the application
program|application-specific
information
7 Data output key
8 Gross/net; 2nd unit or 10+ higher
resolution (depending on the
settings)
9 Tare key
10 Zero key
11 Toggle to different weighing
platform
12 On/off key
13 Function keys
14 Graphic-capable dot-matrix display
Rear View
15 COM1: RS-232C interface
16 Power cord with country-specific
plug
17 Menu access switch
(standard operating mode or
legal metrology mode)
18 Connector for weighing platform
19 Vent valve; torque: 1.5 Nm
20 COM2|UniCOM interface
