9

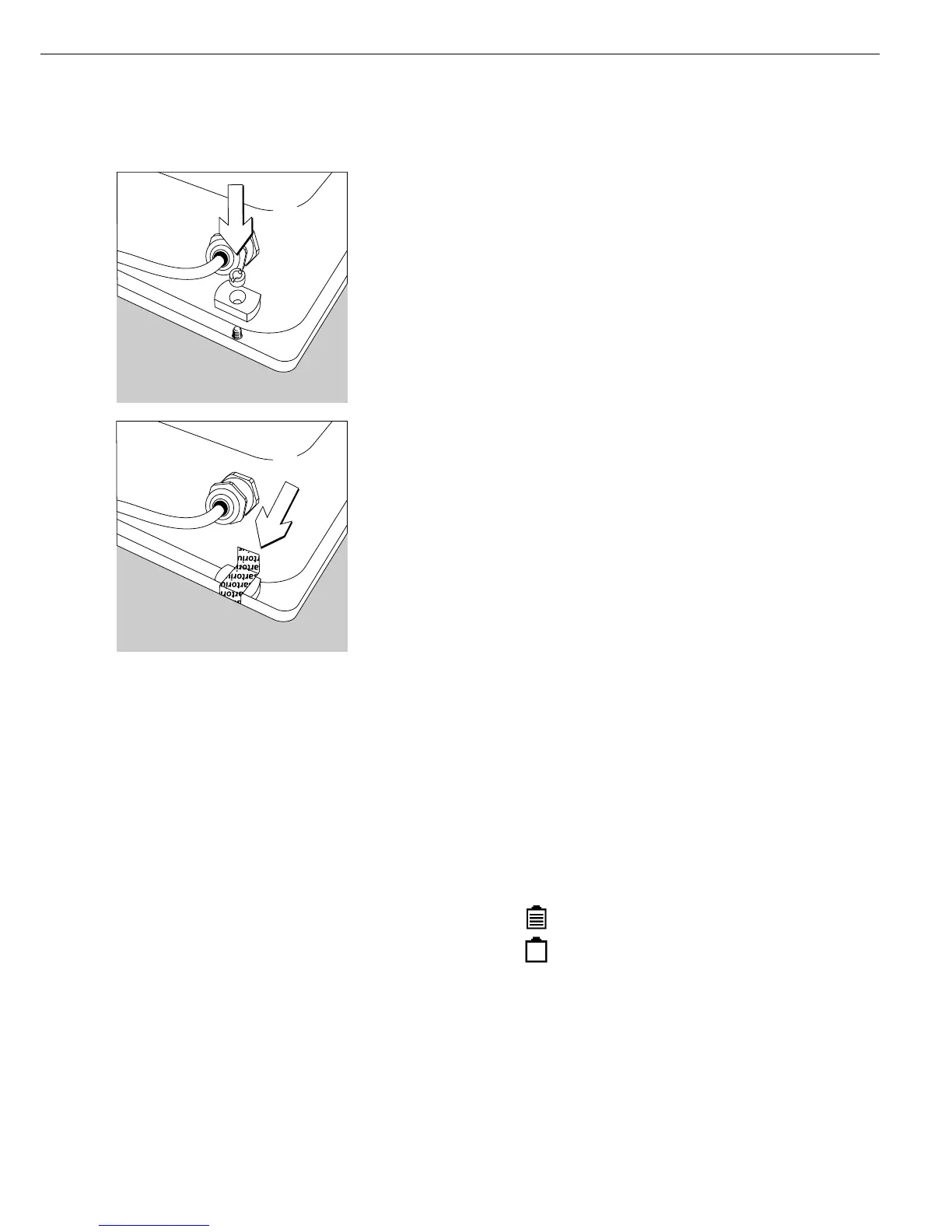

Installing the Verification Adapter for Use in Legal Metrology
(on verifiable models only)
§ Remove the nut located on the back of the indicator.
§ Use the slotted screw to install the adapter plate.
§ Affix the control seal over the adapter plate.
Connecting the External Rechargeable Battery Pack (Accessory; Order No. YRB10Z)
! Disconnect the equipment from power.
§ Installation:
CISL3 models: Connect a 25-pin D-Sub male connector
(connecting cable YCC02-RB01) to the COM2 port
CIS3 models: Please see “Pin Assignment Charts” in this manual, page 54
(implemented via the YCC02-RB02 connecting cable or as Option L2).
Hours of operation: up to 40, depending on the weighing platform connected; without
options. The Combics automatically switches to battery operation in the event of a power
outage. Once the mains supply is restored, the Combics automatically switches back to
normal operation.
Battery Symbol
Battery fully charged:
Battery drained:
Connecting a Bar Code Scanner (Accessory; Order No. YBR02CISL)
! Disconnect the equipment from power.
$ Installation:
CISL3 models: Connect a 25-pin D-Sub male connector to the COM2 interface.
To connect both a bar code scanner and an external rechargeable battery,
please use the YTC01T-connector.
CIS3 models: Please see “Pin Assignment Charts” in this manual, page 54
(implemented via the YCC02-BR02 connecting cable or as Option M8).
