Application, printing and battery symbols
S Printing in progress
T GMP-compliant printout active
, Battery status: ‘Battery fully charged’ or ‘Battery empty’

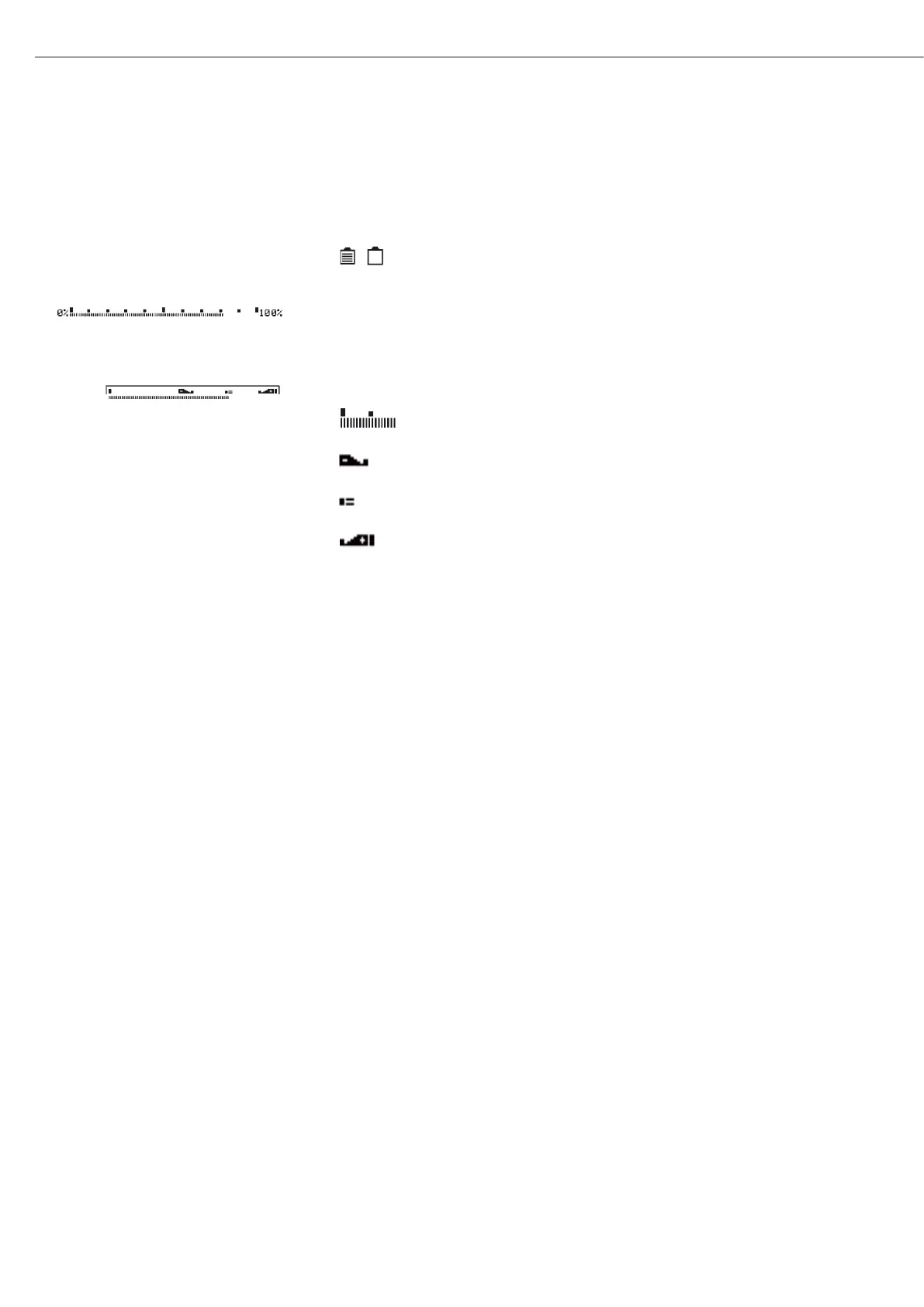

Bar graph
The bar graph shows the percentage of the weighing platform’s capacity that is
“used up” by the load on the scale (gross value).
0% Lower load limit
100% Upper load limit
The following symbols indicate tolerance levels for checkweighing:
Bar graph showing 10% intervals
Minimum for “checkweighing"
Target value for “checkweighing"
Maximum for “checkweighing"
Application symbols
A Symbol for the Counting application
Y Symbol for “checkweigher" counting down to “zero"
L H W M B A D Symbols for the Totalizing, Checkweighing, Classification,
Net-total Formulation, Weighing in Percent, Counting
(with or without reference sample updating) and Neutral
Measurement application programs.
For details on the symbols, please see the chapters for the
respective application programs in the manual.
Text Lines
The text lines show operator support information, such as IDs and user guidance
prompts.
Soft key line
This line shows the abbreviations or symbols that indicate soft key functions.
LEDs
LEDs indicate
– whether the weight exceeds tolerance limits for checkweighing
– the weight value classification for the Classification application
Error Codes
– If a key is inactive, “-------” and/or “No function” is displayed (2 sec.) and
an acoustic signal (double- beep) is emitted
– Temporary errors are displayed for 2 seconds in the measured value/result line via an
error code (e .g.,
INF 09); fatal errors (e .g., ERR 101) are displayed continuously
until cleared via a restart.
Error codes are described in detail in “Data Interfaces" in “Error Codes."
Operating Design
50
