Adjustment Without Weights
Purpose
In the Service menu, adjustment without weights can be carried out by entering the
characteristic data of the load cells.
3
Adjustment without weights may not be carried out on weighing equipment used in legal
metrology.
Setup information
– Adjustment without weights is only possible when the menu access switch is open in the
Service mode.
– The “Nominal load" parameter must be entered in the “kg" unit.
– The “Resolution" parameter must be entered in the “kg" unit and must correspond to the
scale interval “d" entered for the ADC configuration.
– The “Sensitivity" parameter is entered in “mV/V" (see the data sheet for the value).
h
These values are converted to internal quantities.
Once the ADC configuration data have been stored (by selecting the “
Save
parameters" menu item), these parameters can no longer be read.
Procedure
t Remove the cap.
t Slide the menu access switch to the left (= “open" position).
t Activate the Service mode, see “Service Mode."

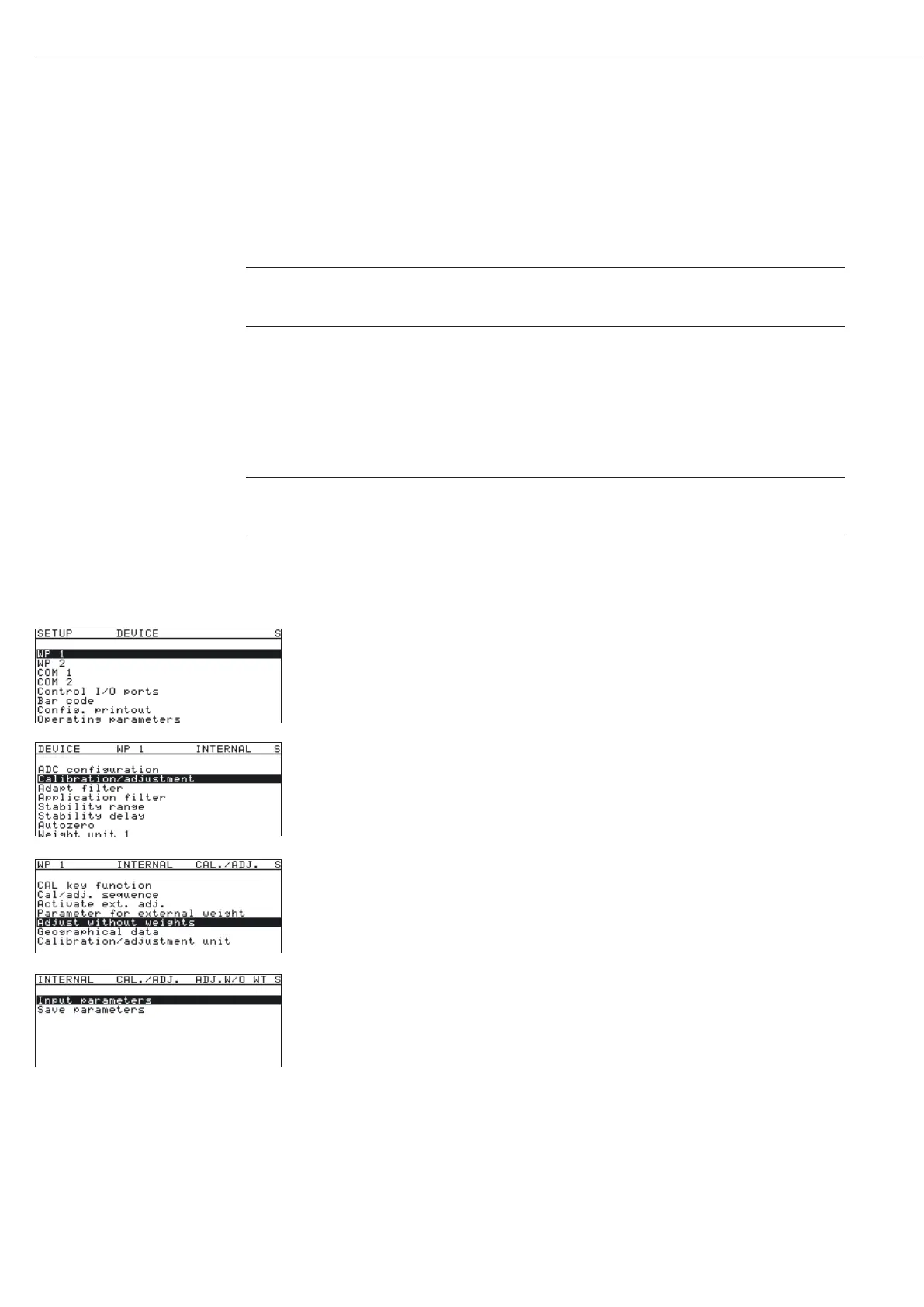

t Select weighing platform “WP 1" in the “Device Parameters" menu item.
t If the “Internal" setting is not already activated (marked by “o"), select the setting
using the “
Q" or “q" soft key and confirm with “O."
y The menu for the “WP-1 INTERNAL" device parameters is displayed.
t Use the “Q" or “q" soft key to select and open the
“
Calibration/adjustment" menu using “O."
t Use the “Q" or “q" soft key to select and use “O" to open the “Adjust without
weights
" menu.
t Use the “O" soft key to open the “Input parameters" menu.
38
Configuring Weighing Platforms
To Next Page
