Operating Instructions Cubis
®
MCA 19
Device Description
3.7.2 Protective Caps on the Electronics Module
1 2 3 4
5

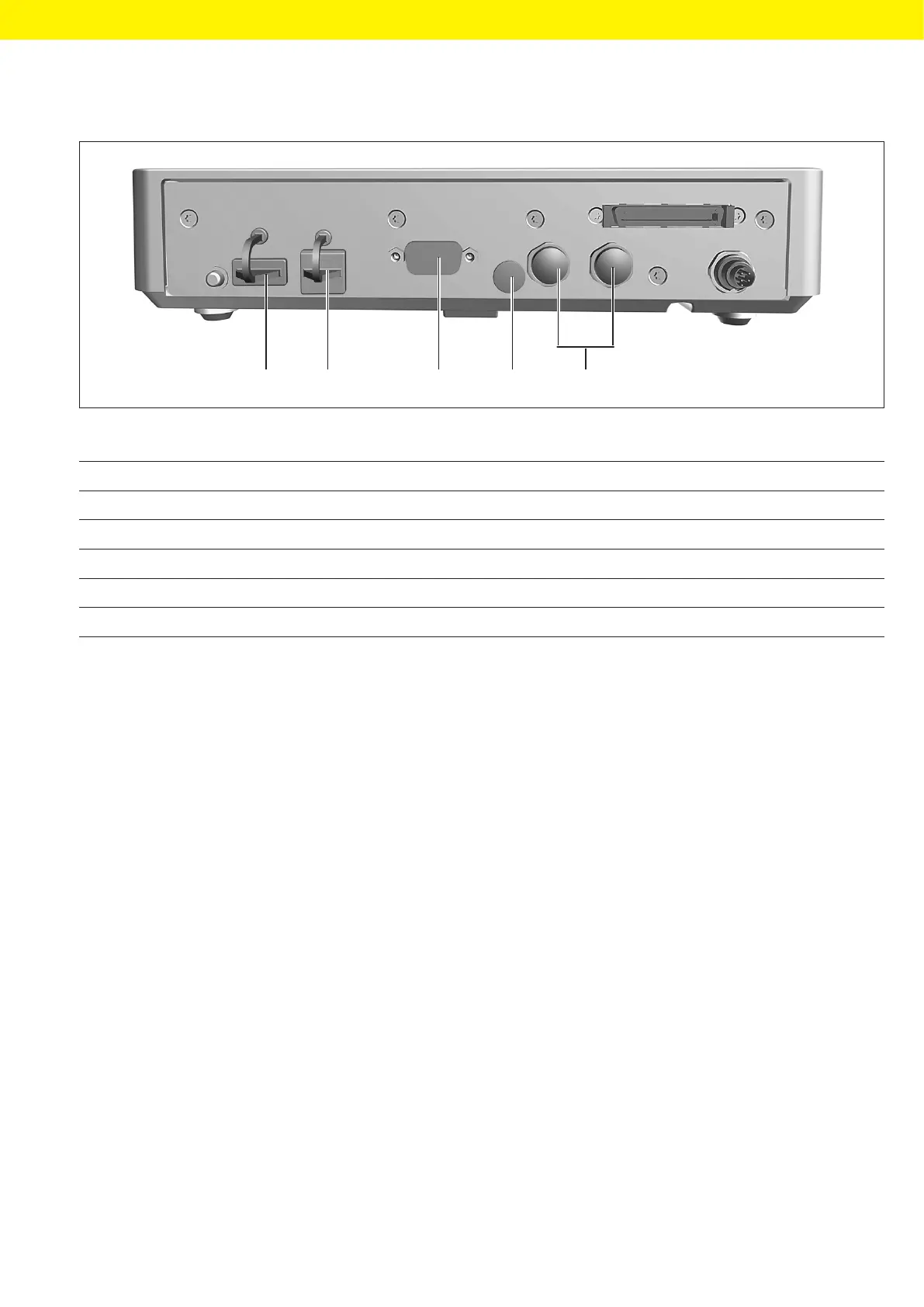

Fig. 9: Protective caps on the electronics module
Pos. Name Description
1 Protective cap for USB-A connection Plastic attachment hood, fastened to the device.
2 Protective cap for USB-B connection Plastic attachment hood, fastened to the device.
3 Protective cap for COM-RS232 connection Removable plastic sealing cap.
4 Protective cap for access switch Removable plastic sealing cap.
5 Protective caps for peripheral connections Removable plastic sealing caps.
