Sartorius CW3P User Manual

12

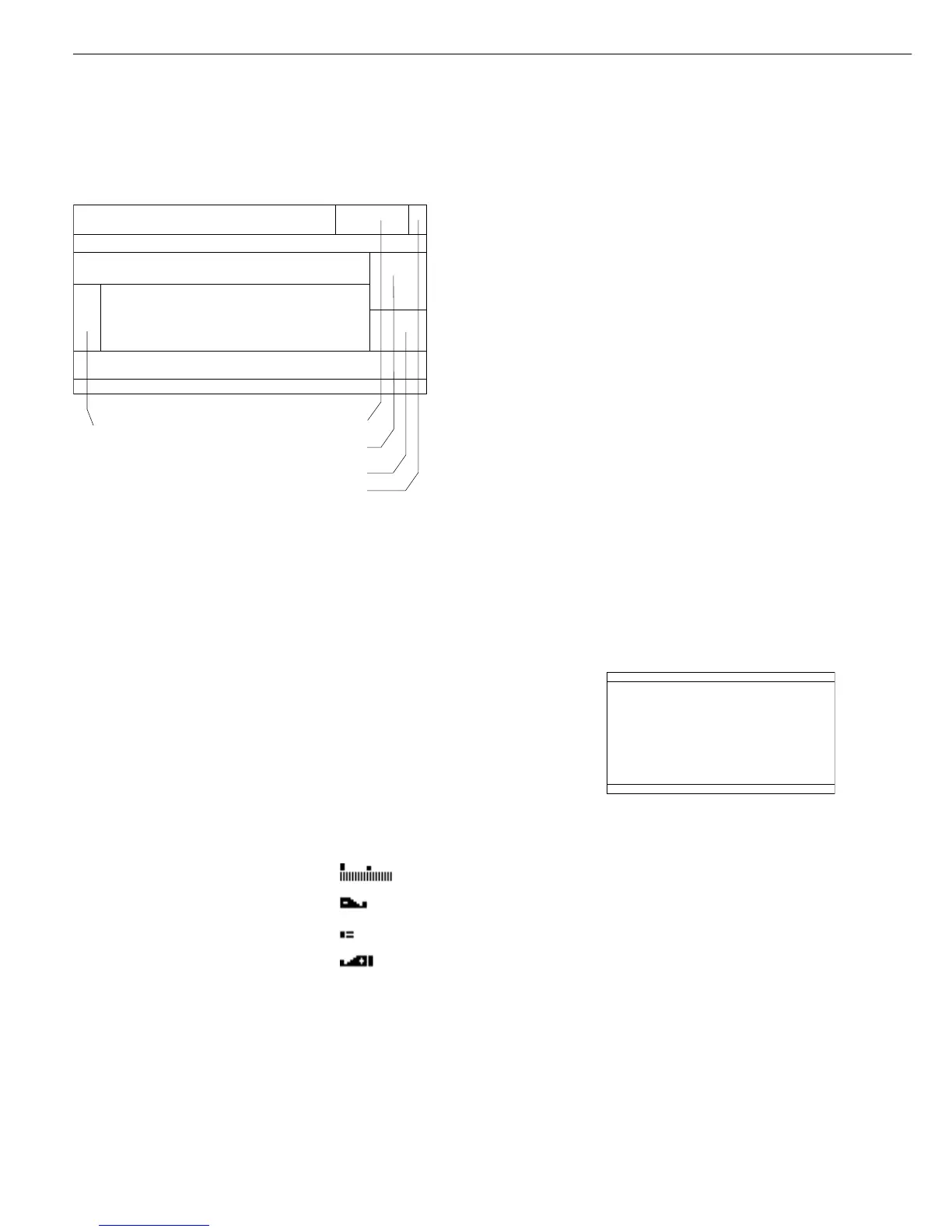

Display Modes
Unit and stability:
When the weighing system reaches
stability, the weight unit or calculation unit
is displayed here.
Tare in memory, calculated values:
The following symbols may be displayed
here:
a Calculated value (cannot be
used in legal metrology)
NET Net value
(gross weight minus tare)
B/G Gross value
(net value plus tare)
Text lines:
These lines show value IDs and user
guidance texts.
Soft key labels:
Shows abbreviations or symbols indicating
soft key functions.
Display Mode for Configuration
and Information (Setup)
This display is divided into three sections.
Status line:
Indicates the function of the current screen
page. In the Setup program, this line
shows the “path” to the data displayed.
Input and output window:
For input and display of detailed infor-
mation; e.g., for the selected application.
Selected items are displayed inversely
(white letters on a black background).
Status line
Input/output window
Soft key labels
Lines for metrological data
Bar graph
Text lines
Soft key labels
Line for measured values
Plus/minus sign
Stability symbol
Battery symbol
Application symbol
Unit
Tare memory/
calculated value
Info/Status line
There are two display modes: one is used
during weighing and the other when
working with the operating menu (Setup
program).
Display Mode During Weighing
(Main Display)
This display is subdivided into nine
sections.
Lines for metrological data:
These lines show:
WP1/2 Active weighing platform
R1/2 Current weighing range of
the active weighing platform
(with multiple range scale
connected)
Max Upper limit of the weighing
range in the active weighing
platform
Min Lower limit of the weighing
range in the active weighing
platform (verified models only)
e Verification scale interval of
the active weighing platform
(verified models only)
d Scale interval d of the active
weighing platform
Application, printing and battery symbols:
The application symbol indicates the
selected program; e.g.,
A for the Counting application.
S Printing mode active
T GMP printing mode active
The battery symbol b indicates the charge
level of the external rechargeable battery.
Bar Graph
The bar graph shows the percentage of the
weighing platform’s capacity that is “used
up” by the load on the scale (gross value).
0% Lower limit
100% Upper limit
The following symbols indicate tolerance
levels for Checkweighing:
Bar graph with 10% markings
Minimum in Checkweighing
Target in Checkweighing
Maximum in Checkweighing
Plus/minus sign:
+ or - for weight or calculated values;
o when the weighing platform is zeroed or
tared.
Measured value/result line:
This field shows weight values, calculated
values and input characters.
