Display and Keypad
1 LEDs (for checkweighing and
classification)
2 Toggle to alphabetical input
3 Alphanumeric keypad
4 CF key (clear function)
5 Settings: Access Setup program
6 Toggle to the application
program|application-specific
information
7 Data output key
8 Gross/net; 2nd unit or 10+ higher
resolution (depending on the
settings)
9 Tare key
10 Zero key
11 Toggle to different weighing
platform
12 On/off key
13 Function keys
14 Graphic-capable dot-matrix display
Rear View
15 COM1: RS-232C interface
16 Power cord with country-specific
plug
17 Menu access switch
(standard operating mode or
legal metrology mode)
18 Connector for weighing platform
19 Vent valve; torque: 1.5 Nm
20 COM2|UniCOM interface
6

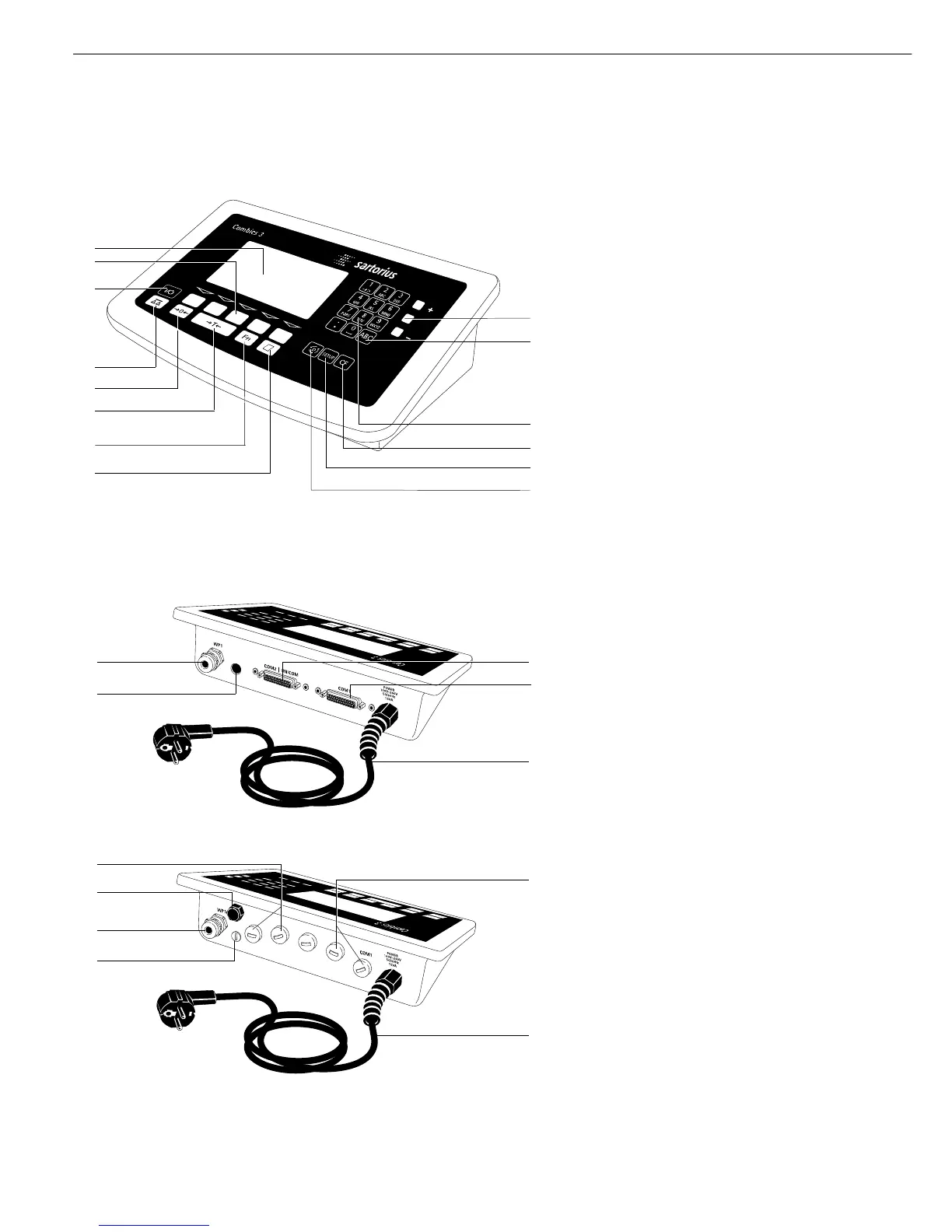

General View of the Equipment
Display and Keypad: Combics 3
Rear view: CISL models
Rear view: CIS models
20
15
16
15
16
13
12
8
18
17
20
19
18
17
11
10
9
1
7
3
4
5
6
2
14
