Installing the Weighing Platform
The connecting cable should be installed by a trained, certified Sartorius technician.
! Installation work that affects the IP67 protection rating must be performed with extreme
care.
! Any installation work that does not conform to the instructions in this manual will result
in forfeiture of all claims under the manufacturer’s warranty.
! Make sure the equipment is disconnected from power before performing any installation,
maintenance or repair work.
! An IP67-protected cable gland is installed on the indicator at the factory.

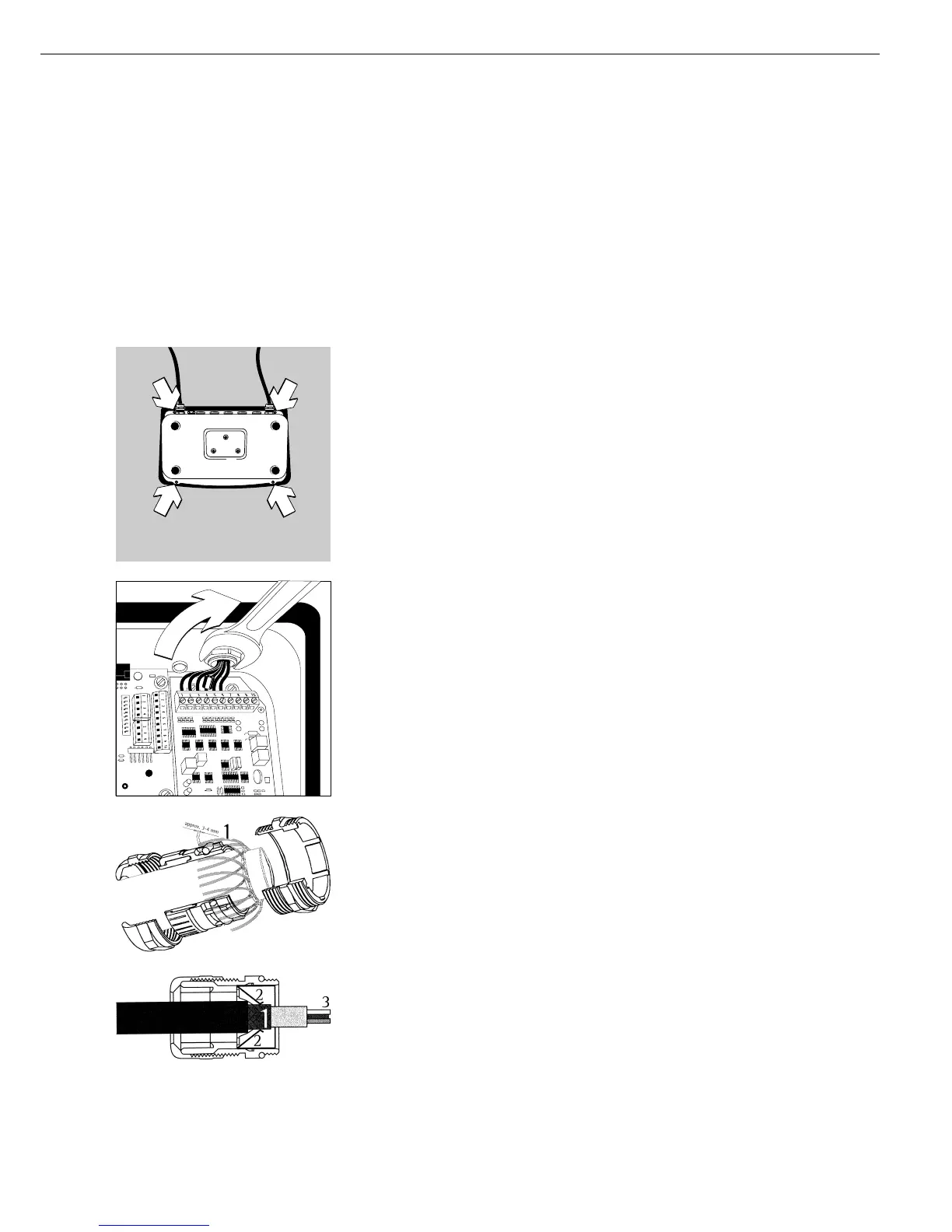

§ To open the indicator, remove the four screws from the front panel and remove the panel.
§ Use the connecting cable from the weighing platform to connect the indicator.
! The cable gland is installed at the factory. Please use extreme caution when performing
any work on the equipment that affects this cable gland. Use a torque wrench and
tighten the cable gland to 5 Nm.
§ Prepare and install the cable as follows:
– Route the cable through the cable gland.
– Close and tighten the cable gland in accordance with the applicable regulations.
– Remove the insulation from a section of the cable end. The shielding (1) must have contact
with the clamps (2).
– Expose approx. 15 cm (6 inches) of the individually isolated wires (3) for installation.
– Route the cable through the cable gland.
– Make sure the shield is in contact with the clamps.
7
