2 Operating Instructions PMA 35001-X

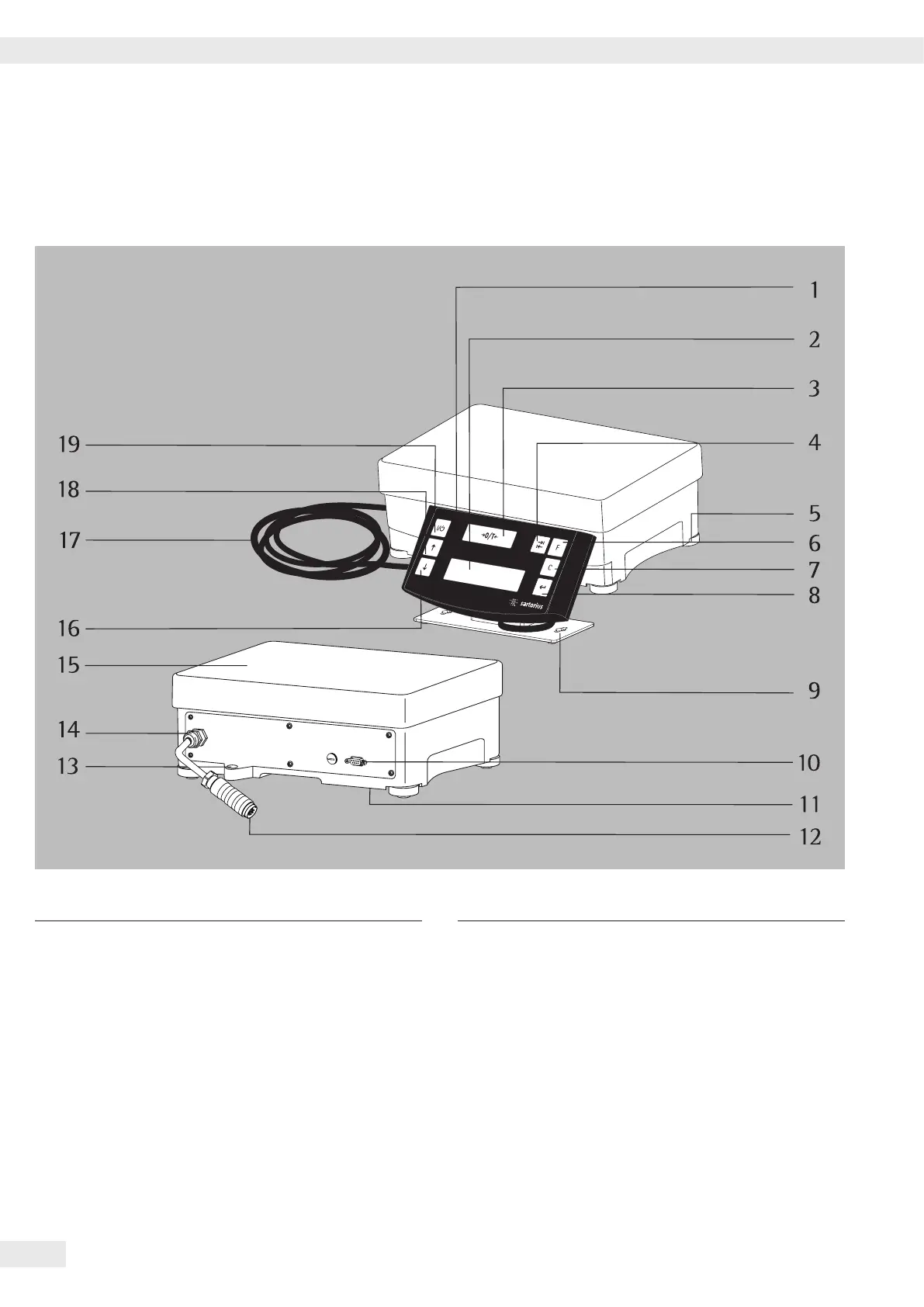

General View of the Equipment
Item Description
Display and control unit
2 Display
3 U key (Zeroing/Taring)
4 I toggle key depending on the menu setting:
You can configure the PMA35001 menu to enable
toggling between grams (g) and parts per pound (p).
5 Leveling foot
6 K factor key for paint-mixing applications
7 c key (Clear) and [REC] key
for paint-mixing applications
8 L [ENTER] key and [MEM] key for paint-mixing
applications
Item Description
9 Mounting bracket for display and control unit
10 Interface (D-SUB socket, 9-pin)
11 Grounding terminal
12 Adapter cable for the AC adapter
13 Level indicator
14 Cable connection
15 Load plate
16 S key: down
17 Power supply and data cable for the display and
control unit
18 R key: up
19 Q key (on/standby)
General View of the Equipment
