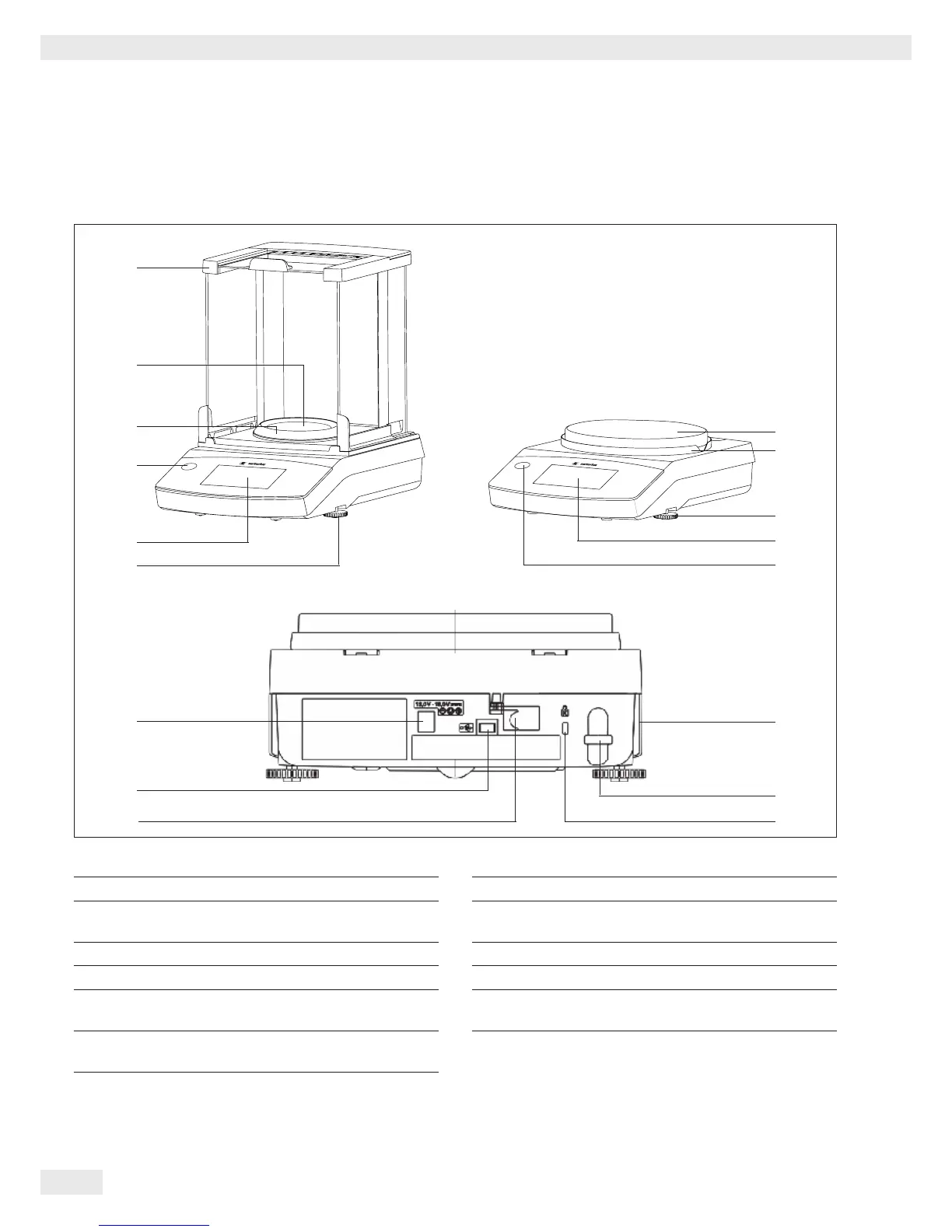

General View of the Equipment
User Manual Secura
®
, Quintix
®
, Practum
®
3. General View of the Equipment
Pos. Name and Function Pos. Name and Function
1 Weighing pan 8 Fastening point for an optional “Kensington” key lock
2 Shield disk 9 Menu access switch: locks various functions and units
when balances are verified
3 Leveling feet 10 USB port for mini AB
4 Touch screen 11 DC jack
5 Level indicator (Quintix
®
and Practum
®
models) 12 Secura
®
models with readability of 0.1 mg:
Pan draft shield
6 Manufacturer's ID label and additional plate for verified
models
13 Draft shield
7 Lug for attaching anti-theft locking device
6
7
89
10
11
3
4
5
12
1
13
1
2
3
4
5
