Service Manual Signum
Description of the Equipment
The Sartorius Signum Series Supreme Scale (SIWS) with a Monolithic Weighing System

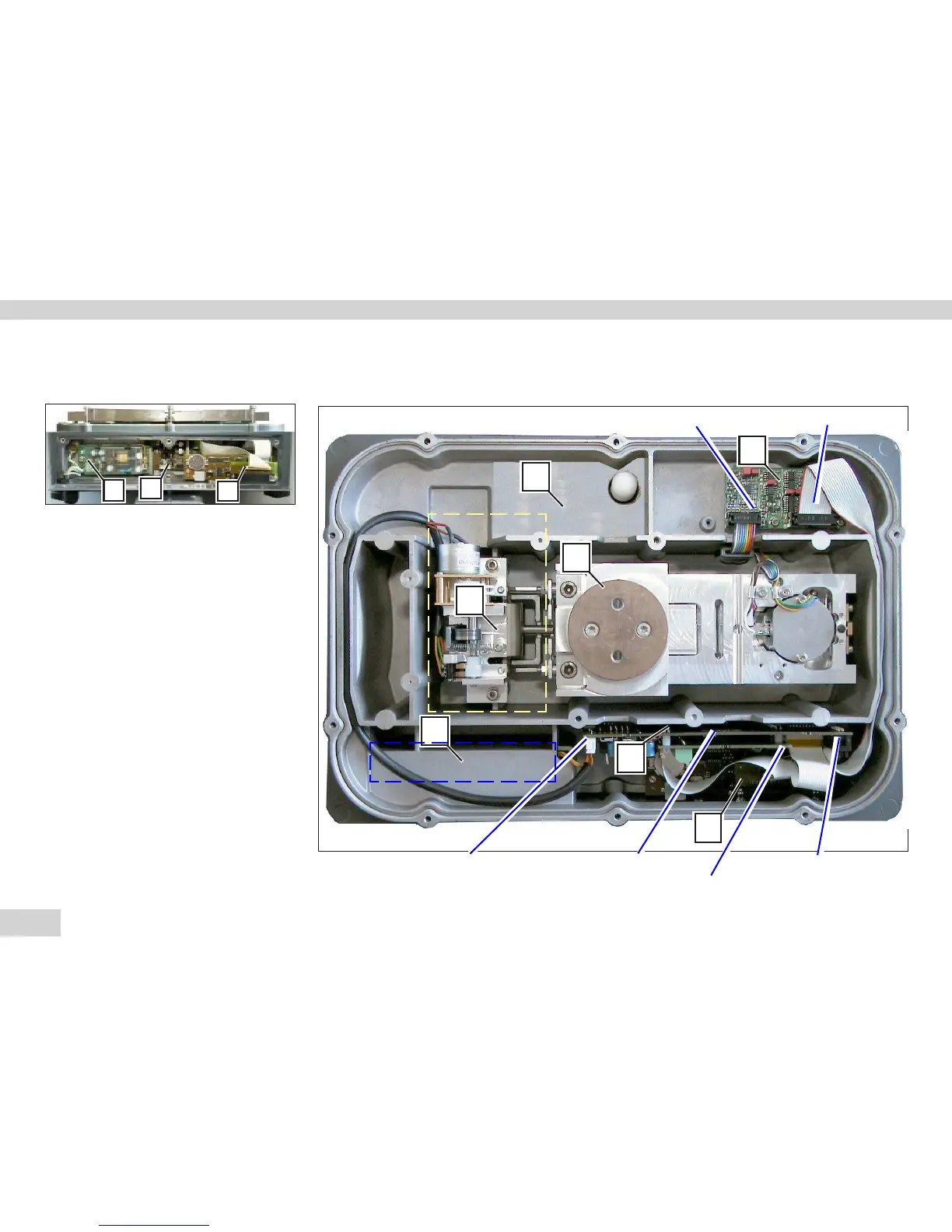

Overview of the Signum Series Scale (Featuring Electromagnetic Force Compensation)
A Power supply
B Data output (various interfaces
can be installed as optional
equipment)
C Main PCB
D Electromagnetic force
compensation system PCB
E Various versions of the
electromagnetic force
compensation system
F Standard housing
G Built-in motorized internal
calibration weight
A
B
C
D
G
E
F
A
C
B
Cable to power supply Data output cable Cable to system PCB
Optional RS232 or RS485/422 data interfaces; 4-20mA/0-10V or digital I/O
System cable Cable to main PCB
