Page 14
Multilift Installation Guide Part No. 000643, 26-m02-2013
Step 11
Wind gate spring hinges
Wind the spring hinges on the gate.
Procedure
It is necessary to wind the gate spring hinges. You will
need vise-grip pliers for this procedure. You will also find an
Allen key and two pins in a plastic bag provided with the
gate.

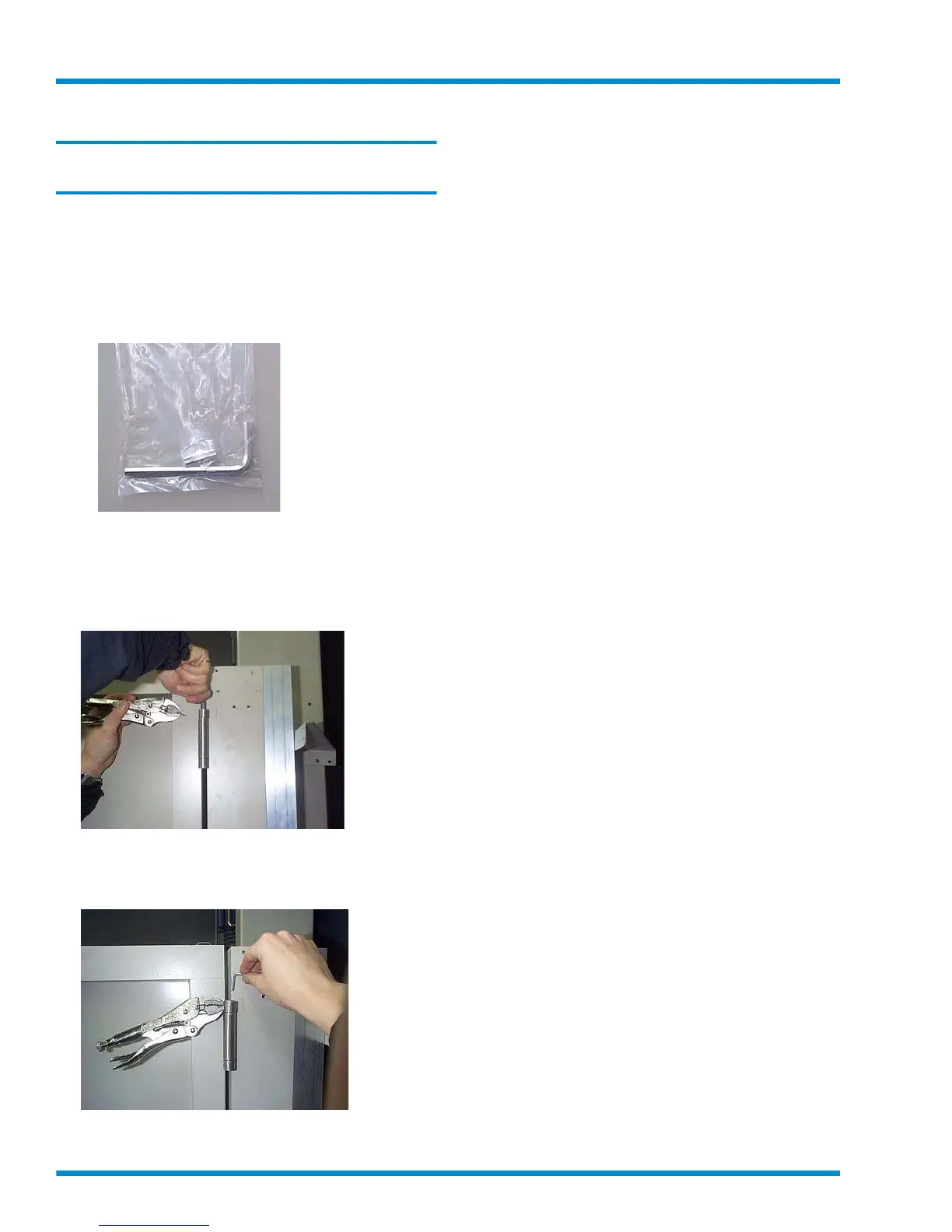

Figure 18
Allen key and two pins
Follow these steps to wind the spring hinges:
1 Insert the Allen key into the hinge. Increase the tension
of the spring hinge by turning the Allen key.
Figure 19
Insert Allen key in hinge and turn to increase tension
2 Put the pin in place and remove the Allen key.
Figure 20
Put pin in place and remove Allen key
3 Repeat steps 1 and 2 to increase the tension.
4 Repeat steps 1, 2 and 3 for the second hinge.
