Step 16
Reverse automatic access ramp (if
required)
Reverse the automatic access ramp (if required).
Procedure
Follow the steps below to reverse the automatic access
ramp (if required).
1 Remove the top cap and the front panel.
2 Remove the underpan (six bolts).

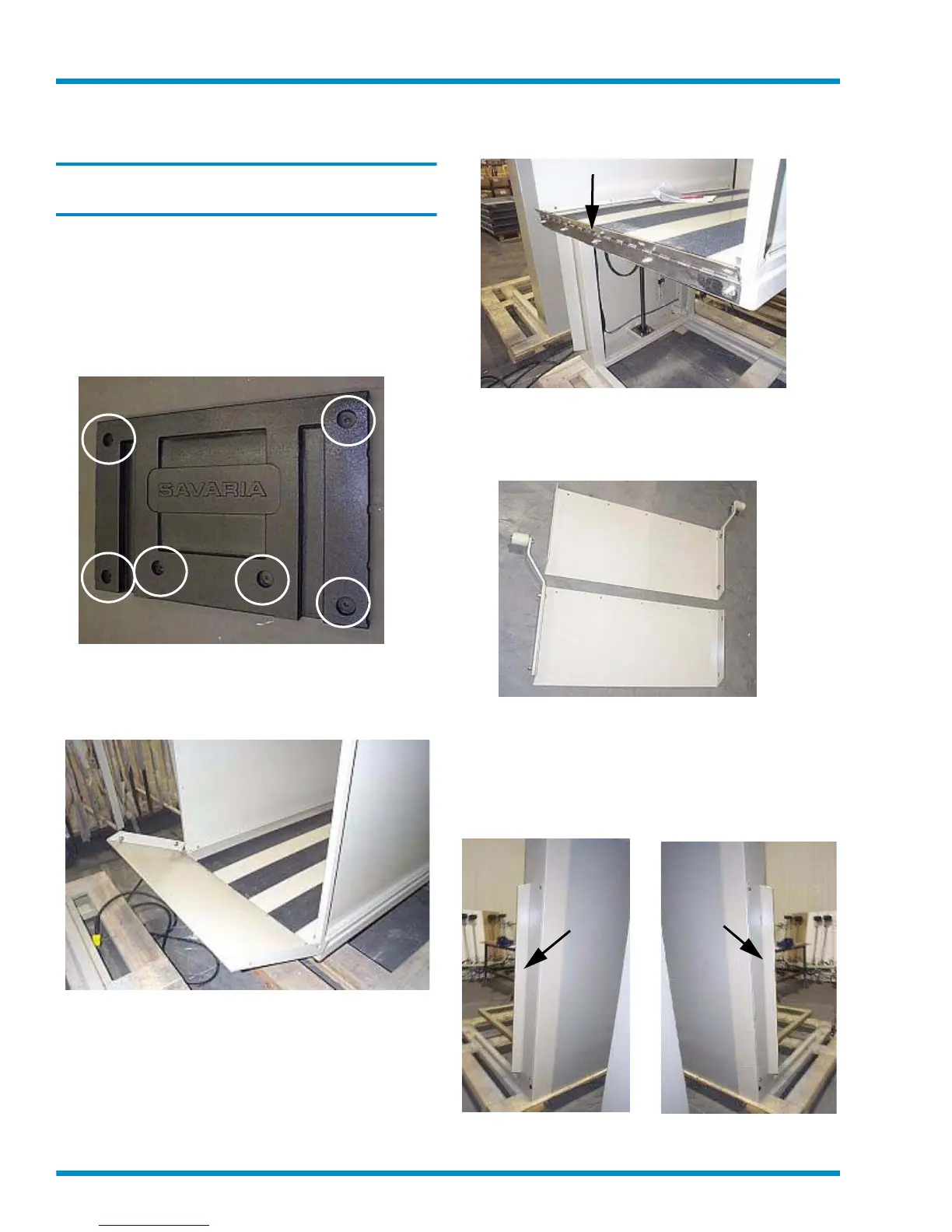

Figure 26
Remove underpan
3 Remove the automatic access ramp.
Figure 27
Remove automatic access ramp
4 Remove the hinge from the platform (five screws).
Figure 28
Remove platform hinge
5 Reverse the position of the actuating arm from one side
of the ramp to the other.
Figure 29
Reverse position of actuating arm on ramp
6 Reinstall the hinge (five screws) and the automatic
access ramp on the other side of the platform (five
screws).
7 Reverse the position of the cam rail from one side of the
tower to the other.
Figure 30
Remove position of cam rail on tower
8 Reinstall the underpan (six bolts).
9 Reinstall the front panel and top cap.
