Part No. 000643, 26-m02-2013 Multilift Installation Guide
Step 6
Anchor lift to pad/floor
Anchor the lift to the pad/floor after verifying the running
clearance.
Procedure
1 Ensure the lift is positioned on the pad/floor so there is
an adequate running clearance between the top
landing and the platform per your site plan drawings.
2 Raise the platform to allow you to work underneath.
3 Double-check the position of the lift and then install the
anchor bolts through the four anchor points as shown
below.
4 Before tightening down the bolts, use shims (320651
shown below) as needed to ensure the lift is plumb and
level.

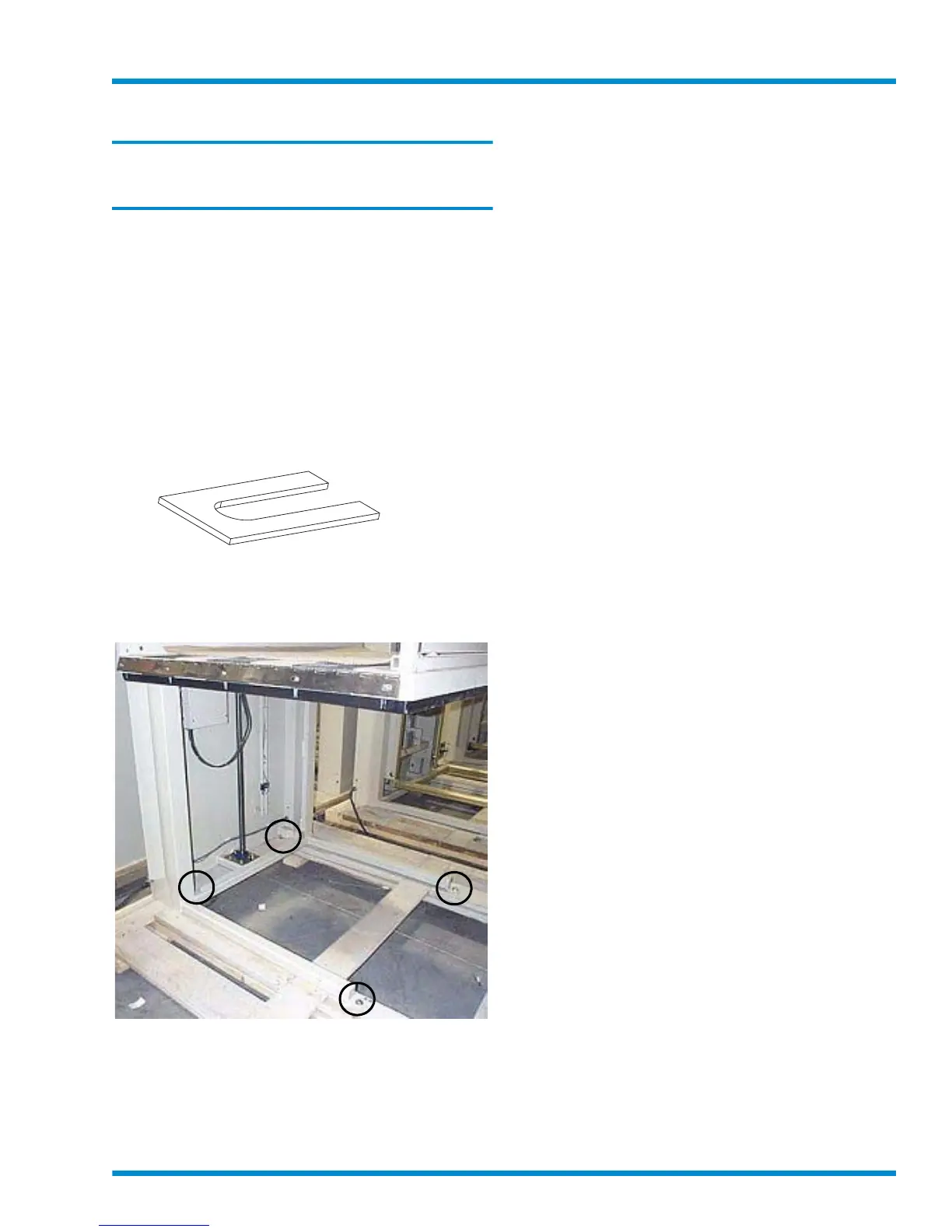

Figure 8
Shim 320651
5 Once complete, lower the platform back down to the
pad/floor.
Figure 9
Anchor points
