Page 8
Multilift Installation Guide Part No. 000643, 26-m02-2013

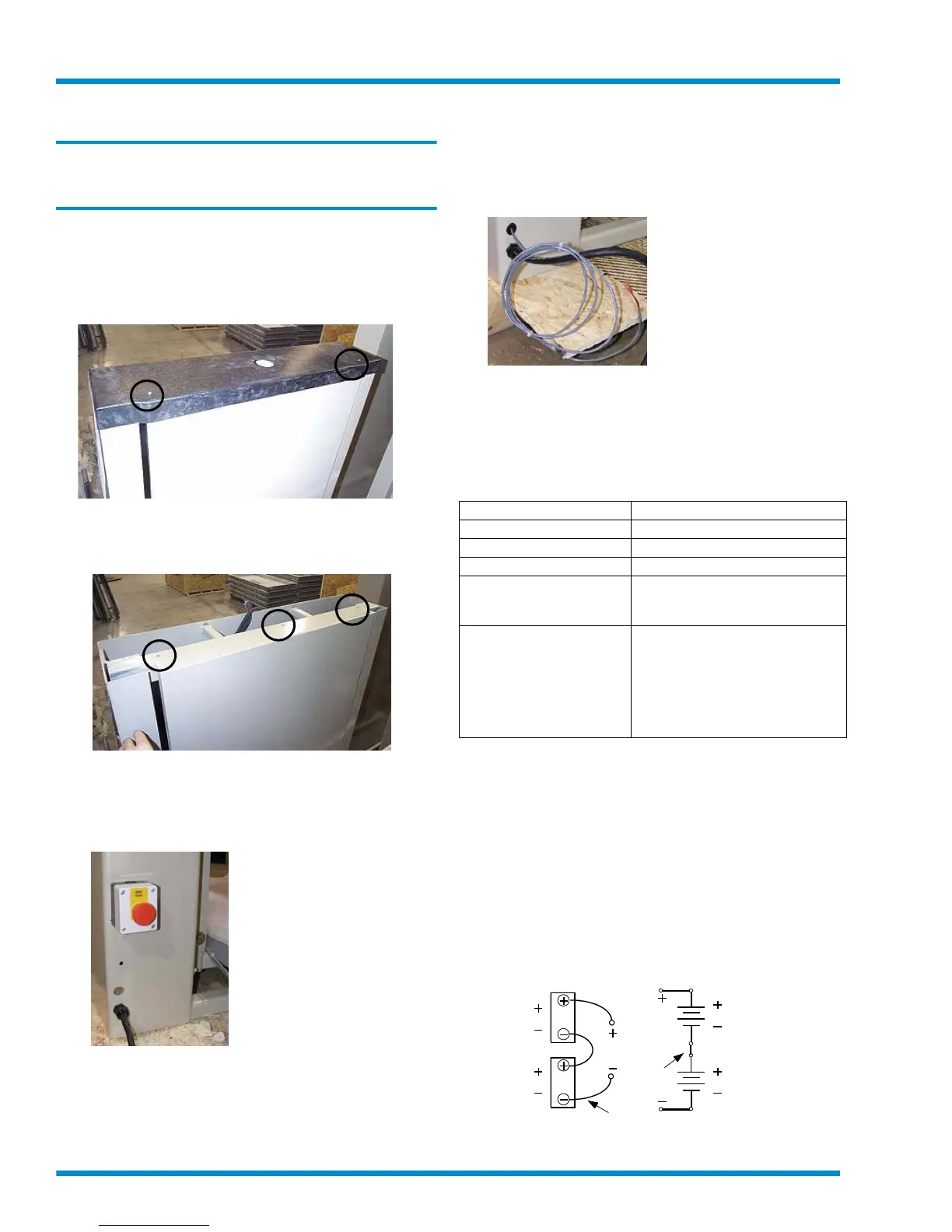

Step 5
Power up lift for installation
Connect the power cord (or battery) and then start up the
lift.
Procedure
For 110 VAC units
1 Remove the top cap (two screws).
Figure 3
Remove top cap
2 Remove the front panel (three screws).
Figure 4
Remove front panel
3 The lift power cord exists the base of the tower on the
left-hand side. Connect the power cord to a 110 VAC,
single-phase, 60 Hz, 15-Amp dedicated circuit.
Figure 5
Power cord exiting tower
4 The lift should be ready to run.
5 If the lift does not run, remove the panel in front of the
controller and diagnose the problem electrically,
referring to the wiring diagrams shipped with the lift.
For 12 VDC units
1 The lift is shipped with the battery cables exiting
through a hole in the bottom left-hand side of the
tower. You can temporarily connect the battery outside
the tower for installation and testing.
Figure 6
Battery cables exiting tower
2 Connect the battery cables to a Group 22F battery (refer
to the specifications below).
3 The lift should be ready to run.
4 If the lift does not run, remove the panel in front of the
controller and diagnose the problem electrically,
referring to the wiring diagrams shipped with the lift.
Battery specifications (Group 22F)
For 24 VDC units
1 The lift is shipped with the battery cables exiting
through a hole in the bottom left-hand side of the
tower. You can temporarily connect the batteries
outside the tower for installation and testing.
2 Connect the battery cables in series to the two 12V
batteries (P/N 105921). The batteries are Universal
UB12180 12V, 18AH.
3 The lift should be ready to run.
4 If the lift does not run, remove the panel in front of the
controller and diagnose the problem electrically,
referring to the wiring diagrams shipped with the lift.
Figure 7
Connecting two batteries
9
9
:LUH
9
:LUH
9
9
9
NOTE: Refer to STEP13 later in this manual to permanently
install the batteries inside the tower and connect the cables.
Item Specification
Type Lead acid, deep cycle
Voltage 12 VDC
Capacity Minimum 65 Amp Hour (AH)
Maximum dimension
to fit in tower
Height: 8-5/16”
Width: 6-7/8”
Length: 9-1/2”
Models recommended U.S. Battery
East: 1-800-522-0945
West: 1-800-695-0945
22F-HC
Interstate Batteries
1-800-CRANK IT
USRM-22FS
