The detector can be installed outdoors as well as indoors, in spaces with harsh
environmental conditions (high dustiness, high humidity, low or high temperatures, etc.).
Thus, you can use it in warehouses, production halls, or other industrial facilities.

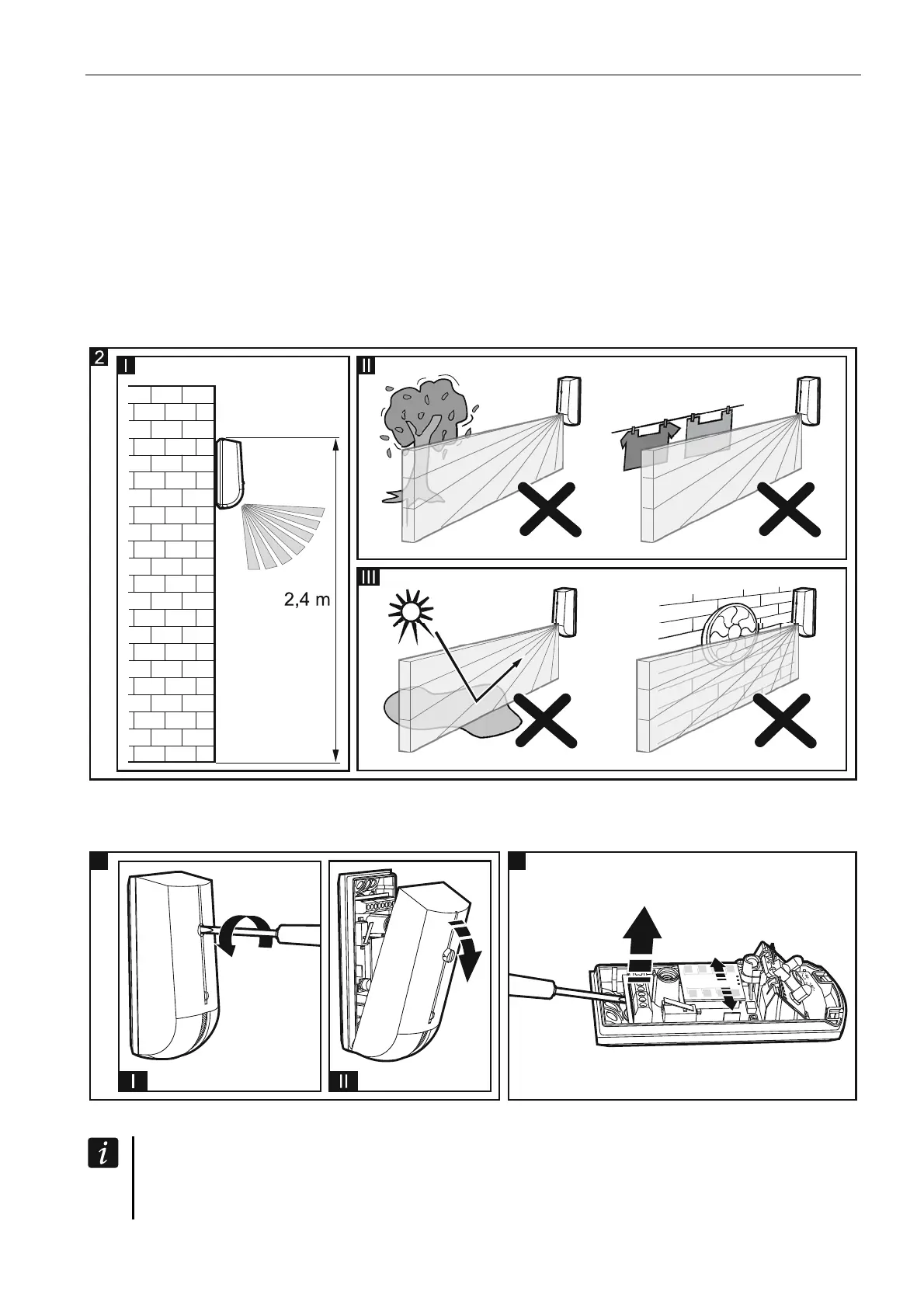

Install the detector at the recommended height (Fig. 2-I).
Install the detector at a roofed location or under a protective roof, where streams of water
from rain or melting snow will not run down the enclosure.
Don’t install the detector closer than 3 meters from the moving objects (eg. tree branches,
bushes, laundry etc.) (Fig. 2-II).
Don’t direct the detector on reflective surfaces or on fans or a heat sources (Fig. 2-III).
Do not install the detector at any location directly exposed to sun rays.
1. Remove the front cover (Fig. 3).
2. Push the fastening catches outward and remove the electronics board (Fig. 4).
43
3. Make the openings for screws and cable in the enclosure base.
To ensure tightness of the enclosure, make the holes only at places specially intended
for this purpose, which are provided with sealing material around the inner side of the
base.
