SATEL AGATE 5
has been installed and adjusting the working parameters of anti-mask circuit
accordingly (for 45 seconds). During that time the detector must not be in any way
obstructed.
When testing the detector, the LED should be enabled.
1. Power-up the detector. The LED will start flashing alternately red, green and blue to signal
warm-up of the detector.
2. When the LED stops flashing, check that moving within the coverage area will activate the

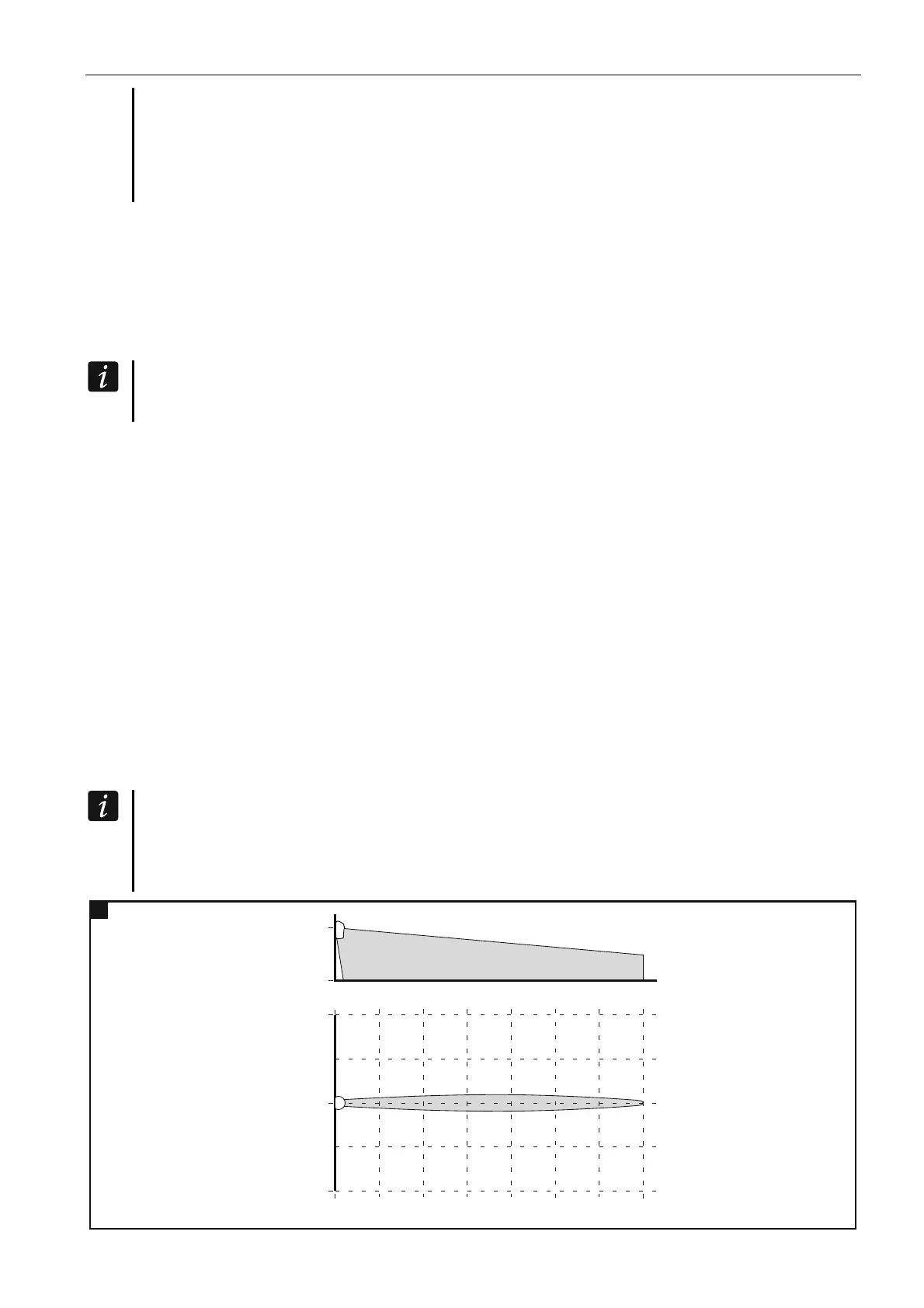

alarm relay and make the LED light up red. Fig. 6 shows the maximum coverage area (at
the maximum sensitivity).
Separate testing of sensors
If a wire is connected to the LED terminal which enables the LED to be switched on/off
remotely, the wire must be disconnected before power-up.
To test the microwave sensor, do the following:
1. Before power-up, place a jumper on the LED switching on/off pins.
2. Power-up the detector and, during the warm-up period, remove the jumper from pins.
After completion of the warm-up, the LED should flash green every 3 seconds.
3. Replace the cover.
4. Check that moving within the coverage area will activate the alarm relay and make the
LED light up green.
5. If necessary, change sensitivity and check the sensor again for proper operation.
To test the PIR sensor, do the following:
1. Before power-up, remove the jumper from the LED switching on/off pins.
2. Power-up the detector and, during the warm-up period, place the jumper on pins. After
completion of the warm-up, the LED should flash blue every 3 seconds.
3. Replace the cover.
4. Check that moving within the coverage area will activate the alarm relay and make the
LED light up blue.
5. If necessary, change sensitivity and check the sensor again for proper operation.
The sensor separate testing mode is automatically exited after 20 minutes.
After completing the tests and closing the enclosure, turn off and then turn on again
the detector so that the anti-mask circuit can configure properly.
8
0
2,4 m
0 14 m
4 m
4 m
0
