Satel ETHM-1 User Manual

SATEL ETHM-1 7
DloadX key [Key (DloadX)] – a string of up to 12 alphanumeric characters (digits, letters and
special characters) defining the key for data encryption during communication with the
DLOADX program.
DLOADX server [DloadX IP] – address of the computer running the DLOADX program. It must
be a public address, unless the computer is included in the same local network. The IP
address or the domain name can be entered.
In the INTEGRA / INTEGRA Plus alarm system keypad, the function for programming
the address of computer with DLOADX program is included in the user menu in the
CHANGE OPTIONS submenu (available to the service and administrators).

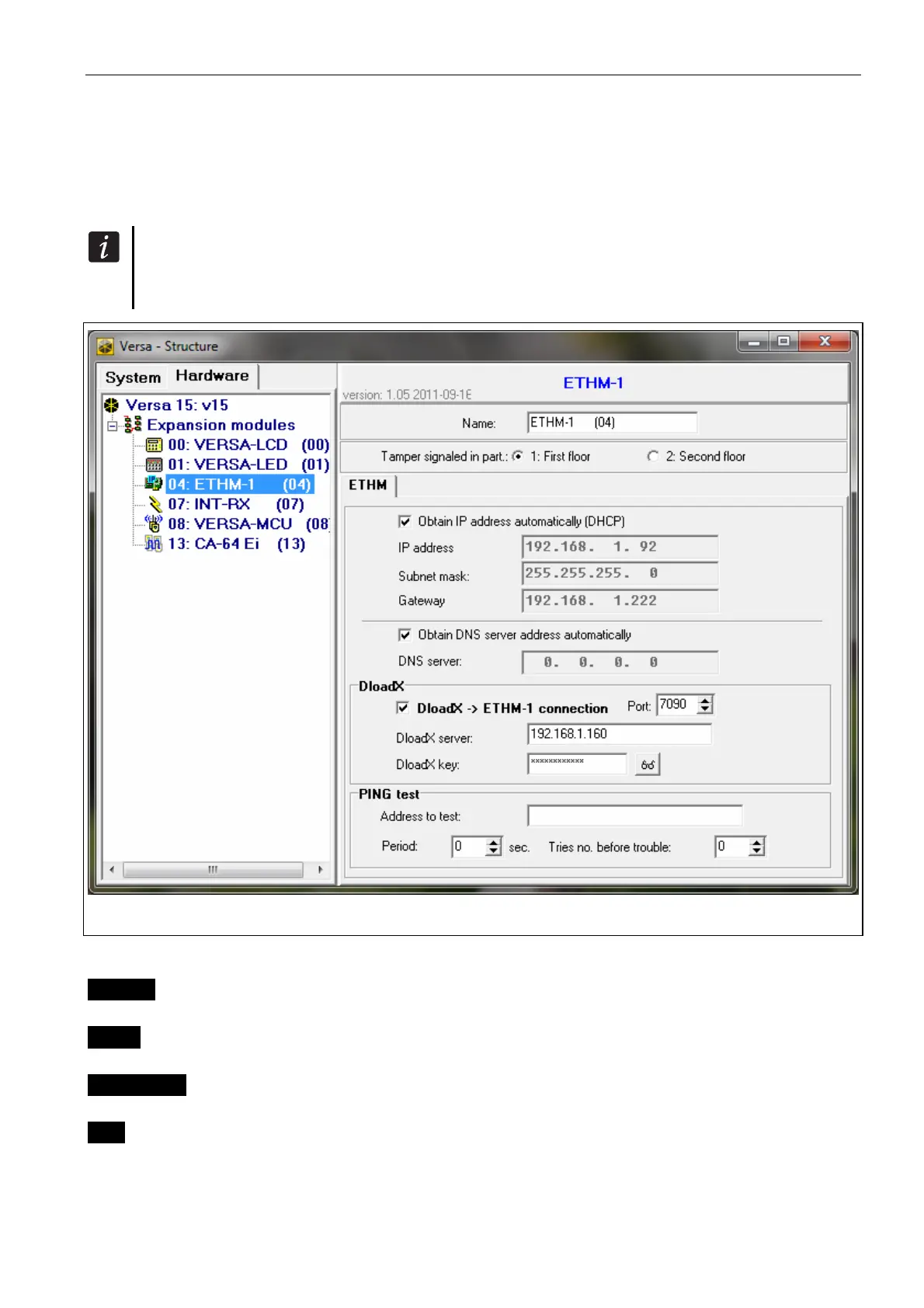

Fig. 5. D
LOADX program: settings of the ETHM-1 module connected to VERSA control panel.
GuardX / Java
GuardX [Connect GuardX] – if this option is enabled, connection with the control panel via
the TCP/IP network can be initiated from the GUARDX program.
WWW [Connect Intern.] – if this option is enabled, connection with the control panel via the
TCP/IP network can be initiated from the web browser.
GSM conn. [Connect GSM] – if this option is enabled, connection with the control panel via
the TCP/IP network can be initiated from the MOBILEKPD / MOBILEKPD2 application.
Port [Port (others)] – number of the TCP port used for communication with:
 GUARDX program;
 JAVA application in the web browser;
 MOBILEKPD application in the mobile telephone supporting the MIDP2.0 standard;

Satel ETHM-1 Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	120 mA
maximum current consumption	120 mA

Operating Environment

environmental class according to EN50130-5	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
