Small five-core lemo interface
The five-core lemo connector is used for the connection of the receiver with an external
data link and/or an external power supply.

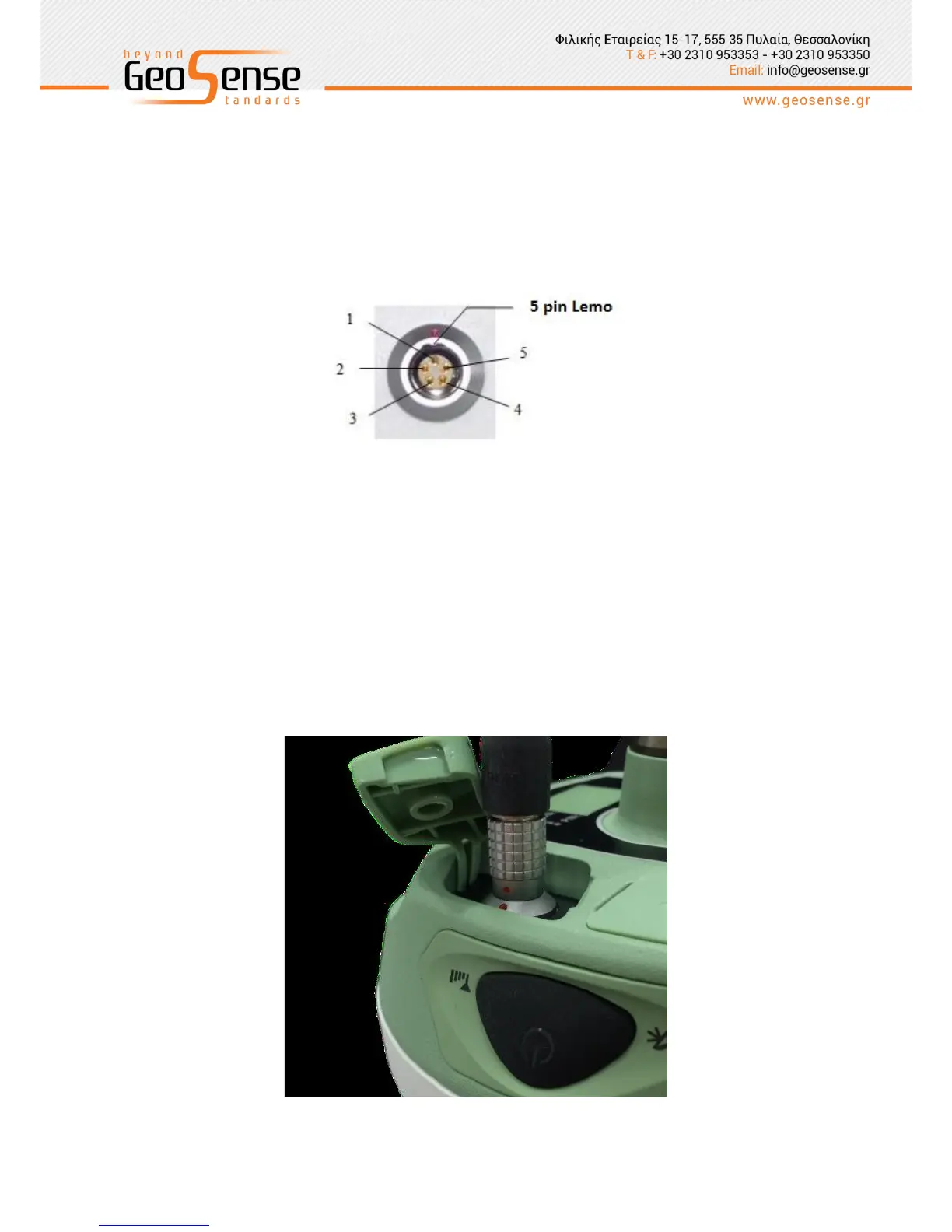

Figure 5-1 small five-core lemo interface
Lemo 5 pin interface Description: facing the bottom of the receiver counter clockwise
1 to GND
2 to GND
3 power into Vin
4 data into RXD
5 data out TXD
