SatLab SL800 - Height Measuring Plate

`
34

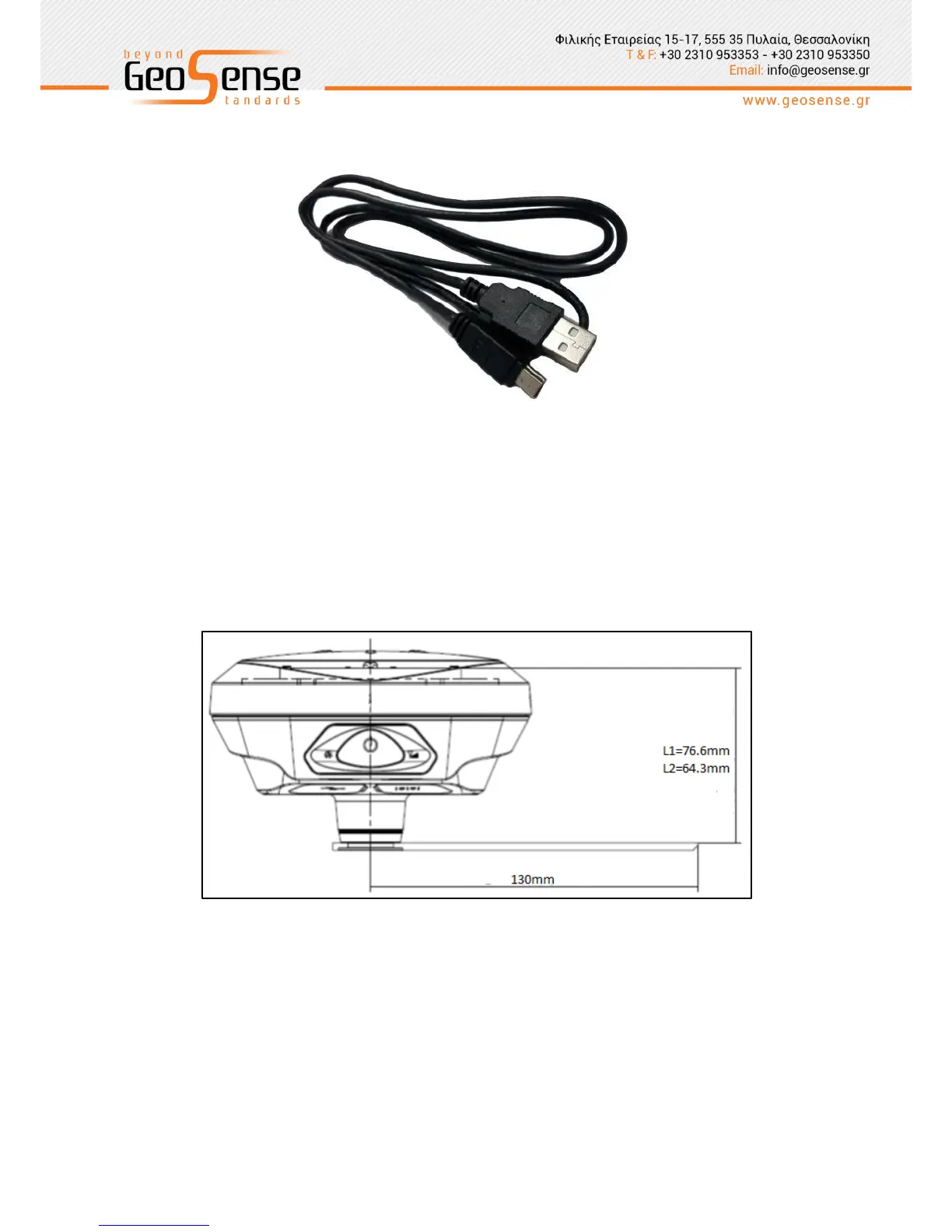

Figure 5-5 USB data cable
Height measuring plate
The height measuring plate is used to measure the height of the instrument. Measurement is
taken from the ground point to the top surface of the measure plate.
Figure 5-6 Nominal phase centre
