9
The bottom of the receiver has a 5 pin lemo interface, USB interface and protective plugs. The
5 pin lemo interface is used for the connection of the receiver with an external data link
and/or an external power supply. The USB interface is for external equipment connection,
firmware upgrade, static data download, and for charging the receiver battery.
If not being used, please cover the 5 pin lemo and USB connectors with the protective plugs
in order to maintain waterproof and dustproof status.

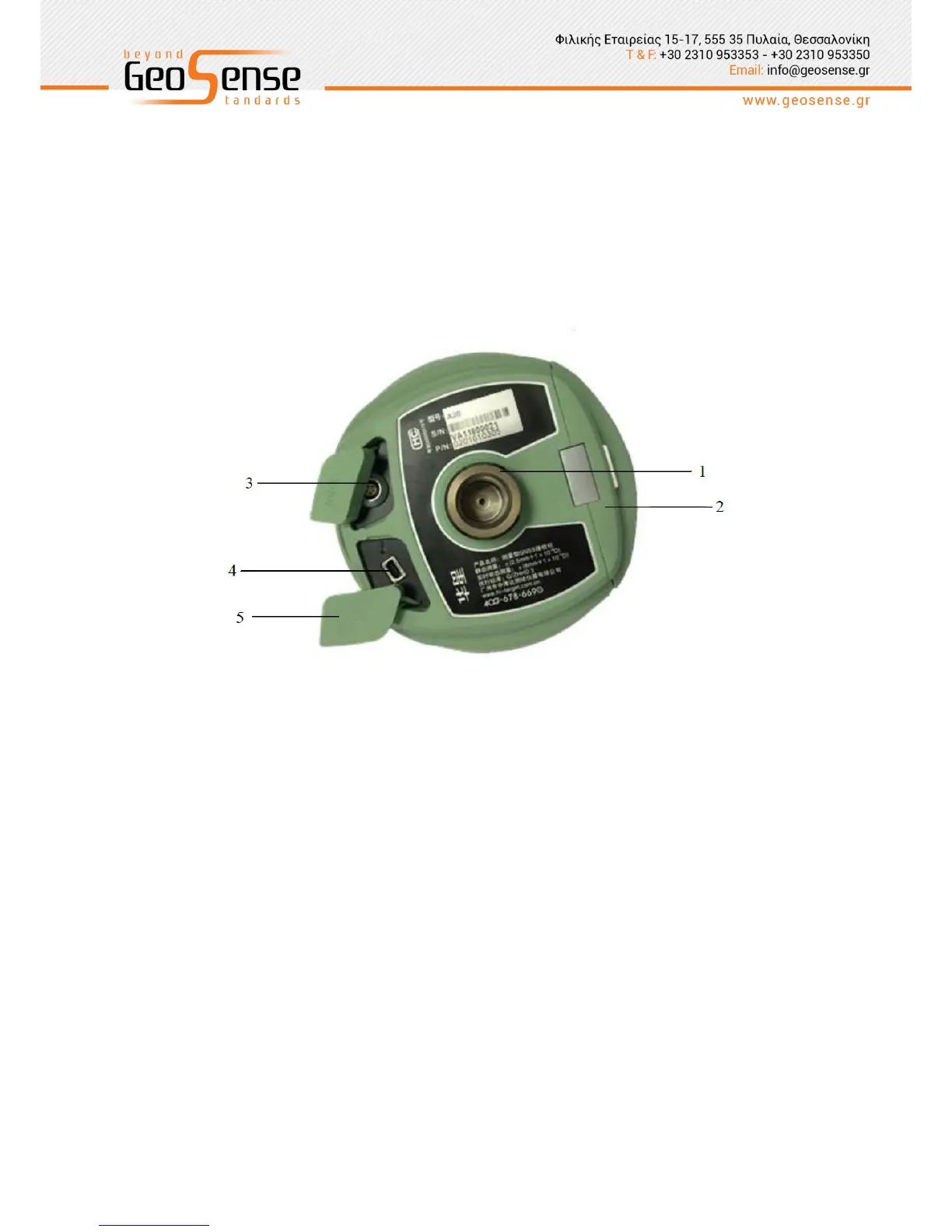

Figure 2-3 Receiver Interface
1. 5/8 thread mounting screw 2. Battery compartment 3. 5 pin lemo interface
4. Mini USB interface 5 - Protection plug
