Satlink WS-7009 User Manual

3
English

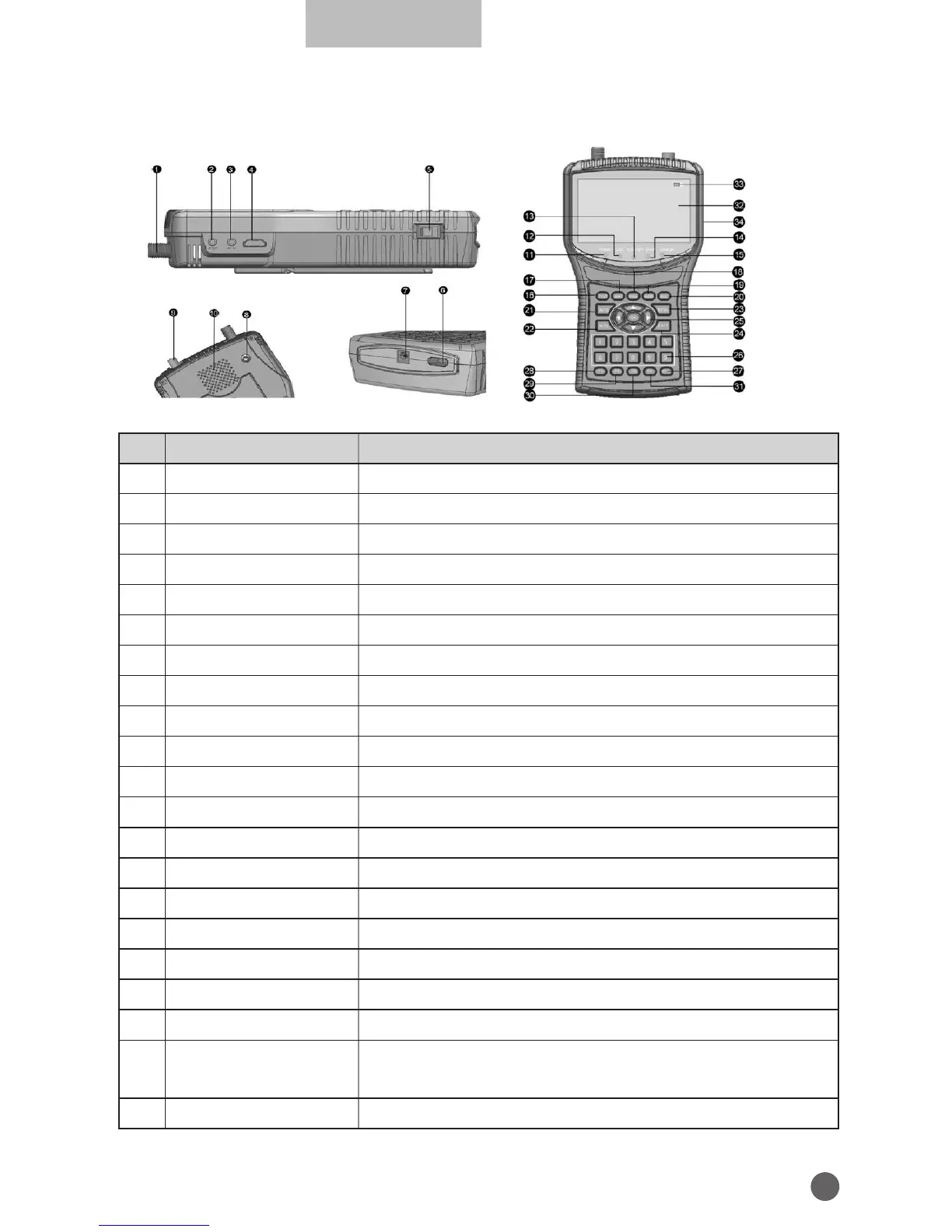

1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description FUNCTION
1 LNB In Connect to satellite antenna cable
2 AV OUT Connect to AV port for TV
3 AV IN Connect to AV port for meter
4 HDMI Use HDMI cable to connect for TV
5 Power Switch Turn on/o meter
6 USB Port Connect to USB memory
7 DC Slot Connect to adaptor input
8 Torch LED Night lighting
9 ANT IN Connect to antenna of DVBT/T2 signal
10 Speaker Speaker integrated
11 Power Power indicator light
12 22kHz 22kHz indicator light
13 13V/18V Vertical /Horizontal polarization voltage output light
14 LOCK Signal lock indicator light
15 Charger (Note1) Charger indicator light
16 Red & TTXT Red KEY &Teletext interface
17 Green & SUBT Green key & Subtitle interface
18 Orange &TV/R Orange key & TV and radio switch
19 BLUE &AUDIO Blue key & Audio interface
20 AVS
If we connect AV IN; switch AV in/out for LCD and
speaker
21 INFO INFO key

Satlink WS-7009 Specifications

General

Brand	Satlink
Model	WS-7009
Category	Measuring Instruments
Language	English
