RFID User Guide 2 PN: 9001147D
RFID HARDWARE CONFIGURATION
The RFID hardware kit is comprised of the: RFID Module, RFID Antenna w/coaxial cable, RFID Cable Set. The
figure below displays configuration:

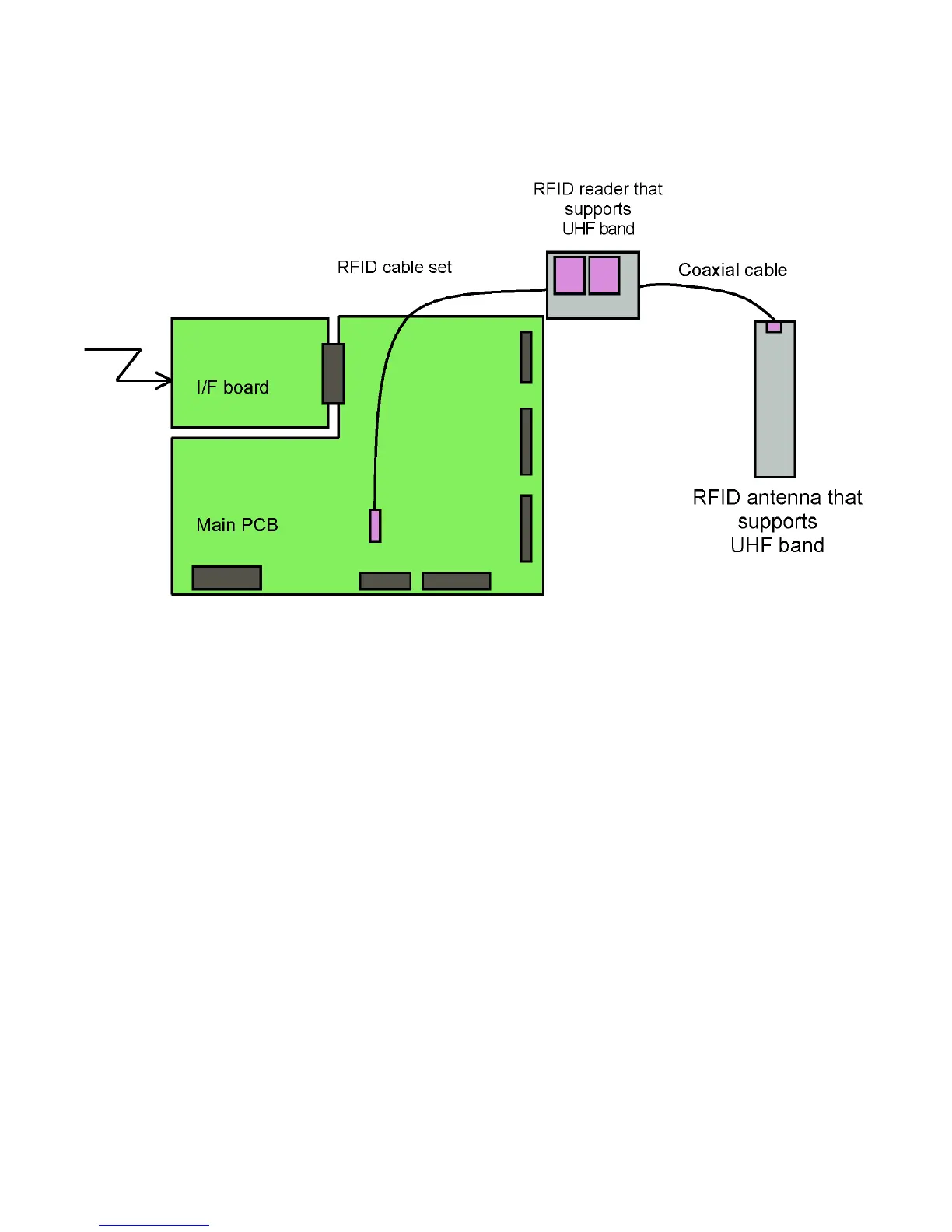

Figure 2, Hardware Configuration
