Step 6
å

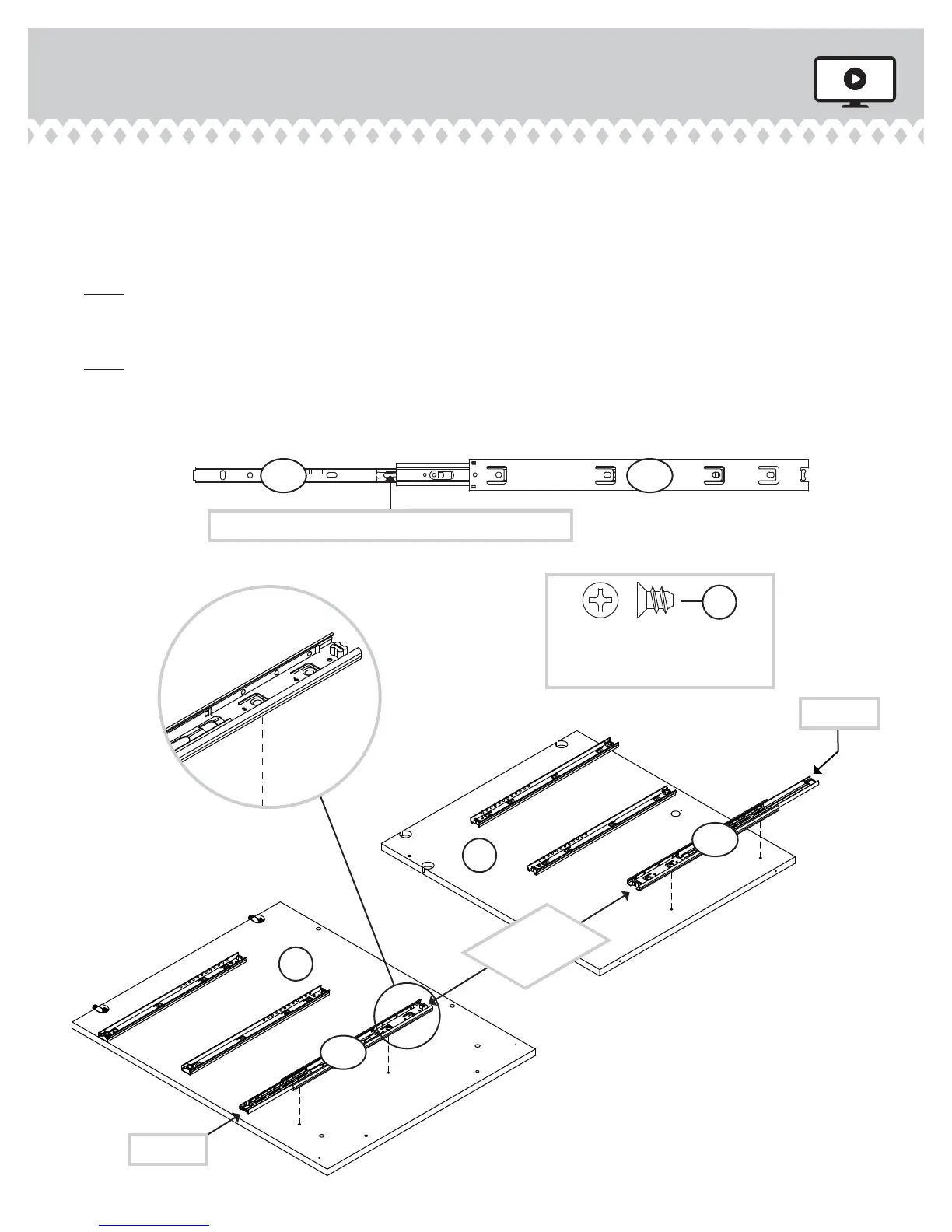

Separate the WIDE EXTENSION SLIDES (OOO) from the WIDE EXTENSION RAILS (NNN)
as shown in the upper diagram below. Be prepared, the parts are greasy.
å
Fasten the WIDE EXTENSION RAILS (NNN) to the INNER LEFT END (D2) and LEFT
UPRIGHT (F). Use four GOLD 5/16" FLAT HEAD SCREWS (3S).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged
diagram. Then, slide the inner cartridge of the EXTENSION RAIL out to fi nd the other holes
that line up with the holes in the END and UPRIGHT. Turn a SCREW into this hole.
å
NOTE: The EXTENSION SLIDES will be used later for the DRAWERS.
417714 www.sauder.com/servicesPage 12
Push the black lever in and pull the SLIDE from the RAIL.
NNNOOO
D2
F
NNN
NNN
Open end
Open end
Wide
Extension
Rails
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
3S
To Next Page
