NOTE: Before beginning this step, separate the NARROW EXTENSION SETS (PPP and QQQ) from the WIDE EXTENSION
SETS (NNN and OOO). Do not confuse these SETS once they are separated.
å

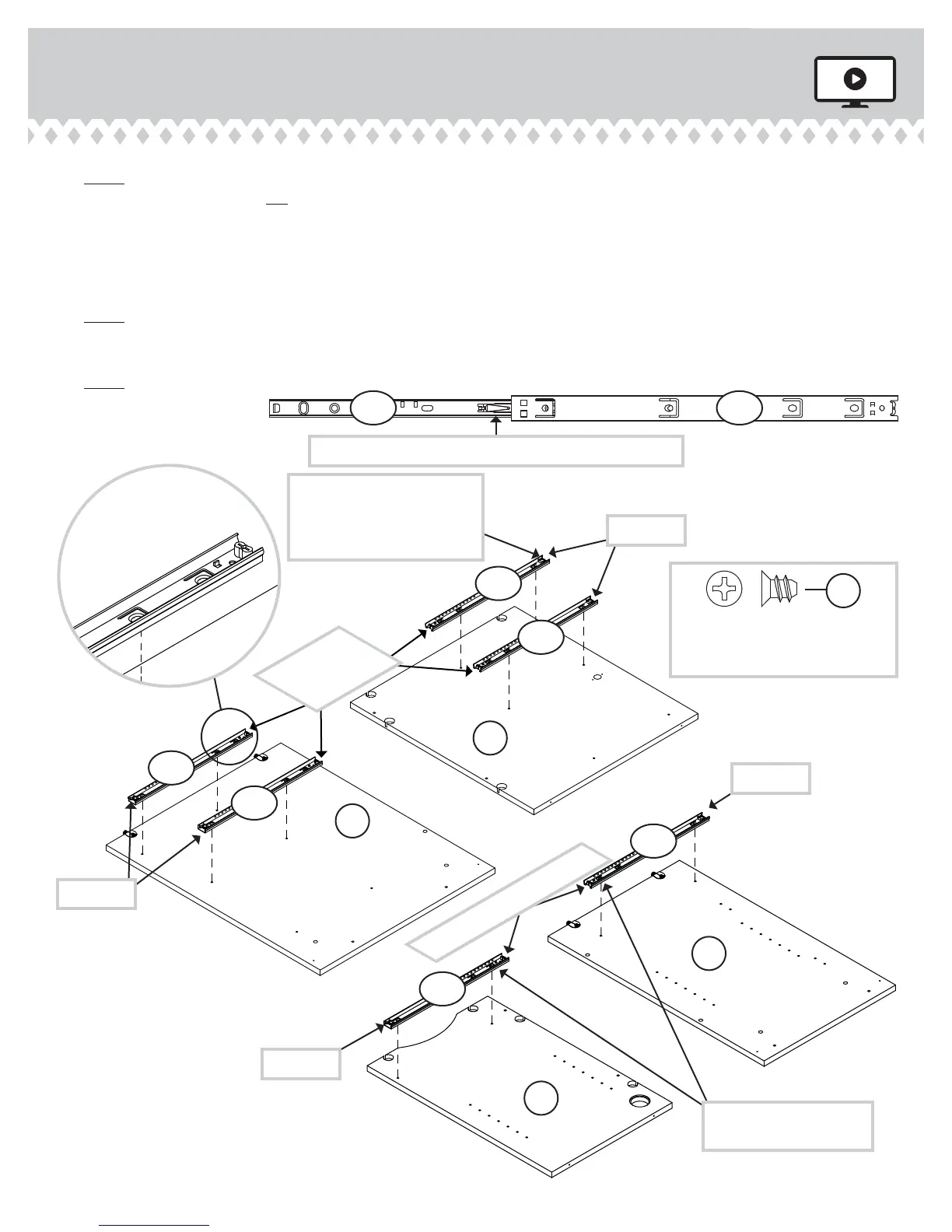

Separate the NARROW EXTENSION SLIDES (QQQ) from the NARROW EXTENSION RAILS (PPP) as shown in the upper
diagram below. Be prepared, the parts are greasy.
å
Fasten the NARROW EXTENSION RAILS (PPP) to the INNER ENDS (B2 and D2) and UPRIGHTS (E and F). Use twelve
GOLD 5/16" FLAT HEAD SCREWS (3S).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then, slide the inner
cartridge of the EXTENSION RAIL in to fi nd the other hole that lines up with the hole in the END and UPRIGHT. Turn a
SCREW into this hole.
å
NOTE: The EXTENSION SLIDES will be used later for the DRAWERS.
Step 5
417714www.sauder.com/services
Page 11
Push the release lever in and pull the SLIDE from the RAIL.
PPPQQQ
PPP
PPP
PPP
PPP
PPP
PPP
B2
D2
E
F
Surface with
TWIST-LOCK®
FASTENER
holes
These RAILS use the last
holes from the open end.
Narrow
Extension
Rails
When this NARROW
EXTENSION RAIL (PPP) is
fastened to the UPRIGHT (F),
it will hang over the edge.
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENER
holes
Surface with
TWIST-LOCK®
FASTENERS
Open end
Open end
Open end
Open end
Narrow Extension Rails
GOLD 5/16" FLAT HEAD SCREW
(12 used in this step)
3S
