Step Step 31
å

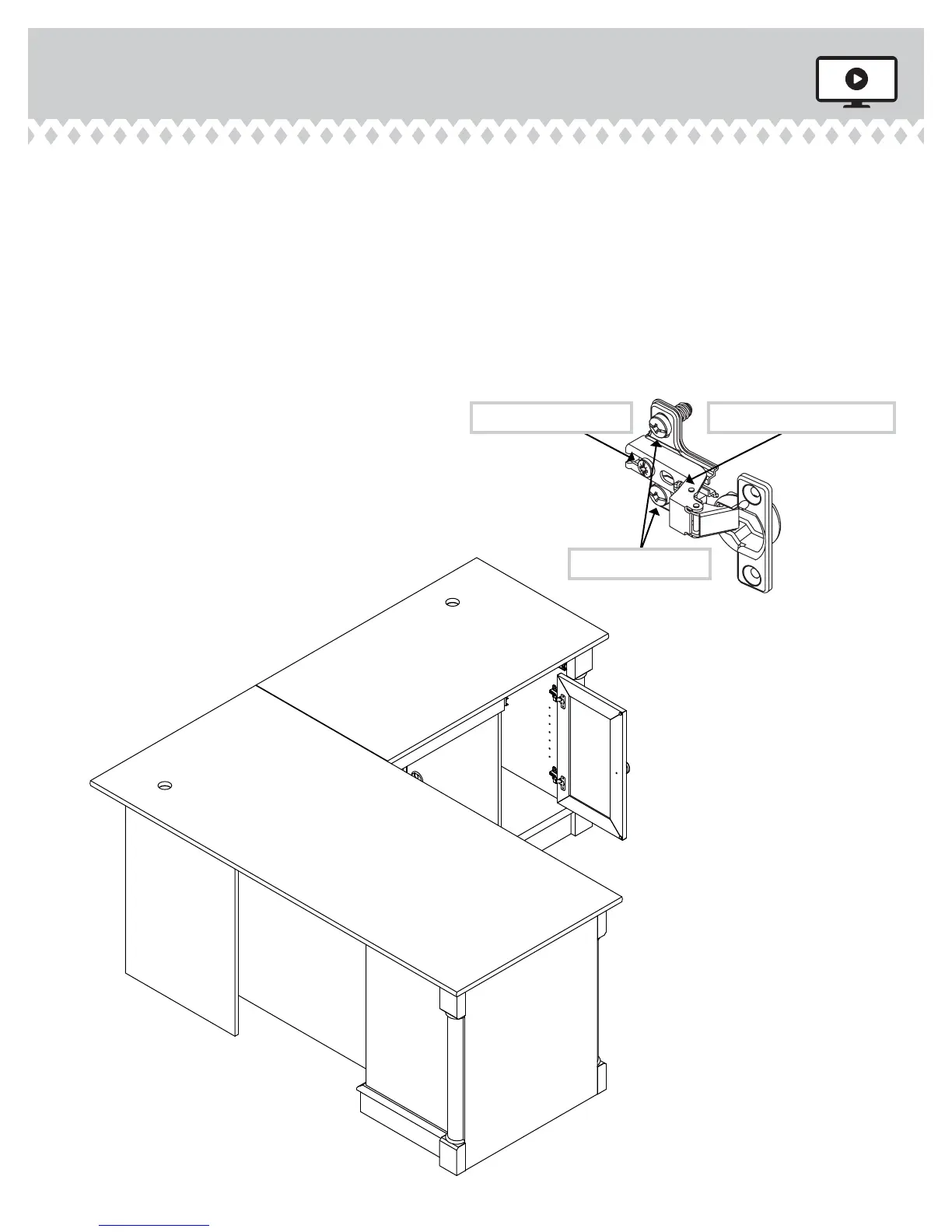

Refer to the enlarged diagram to identify the parts on the HINGES.
å
The DOOR may need some adjustments. Follow the text below to make
needed adjustments.
å
DOOR ADJUSTMENTS:
å
To adjust the DOOR from side to side (horizontal), turn the adjusting screw
in or out.
å
To adjust the DOOR up and down (vertical), loosen
both vertical adjustment screws. Move the
DOOR up or down to the desired location.
Tighten the screws after making adjustments.
å
To adjust the DOOR in or out (depth), loosen
the mounting screw one turn and move the
DOOR in or out, as needed. Tighten the
mounting screw after making adjustments.
Adjusting screw (horizontal)Mounting screw (depth)
(vertical adjustment)
