Step
å

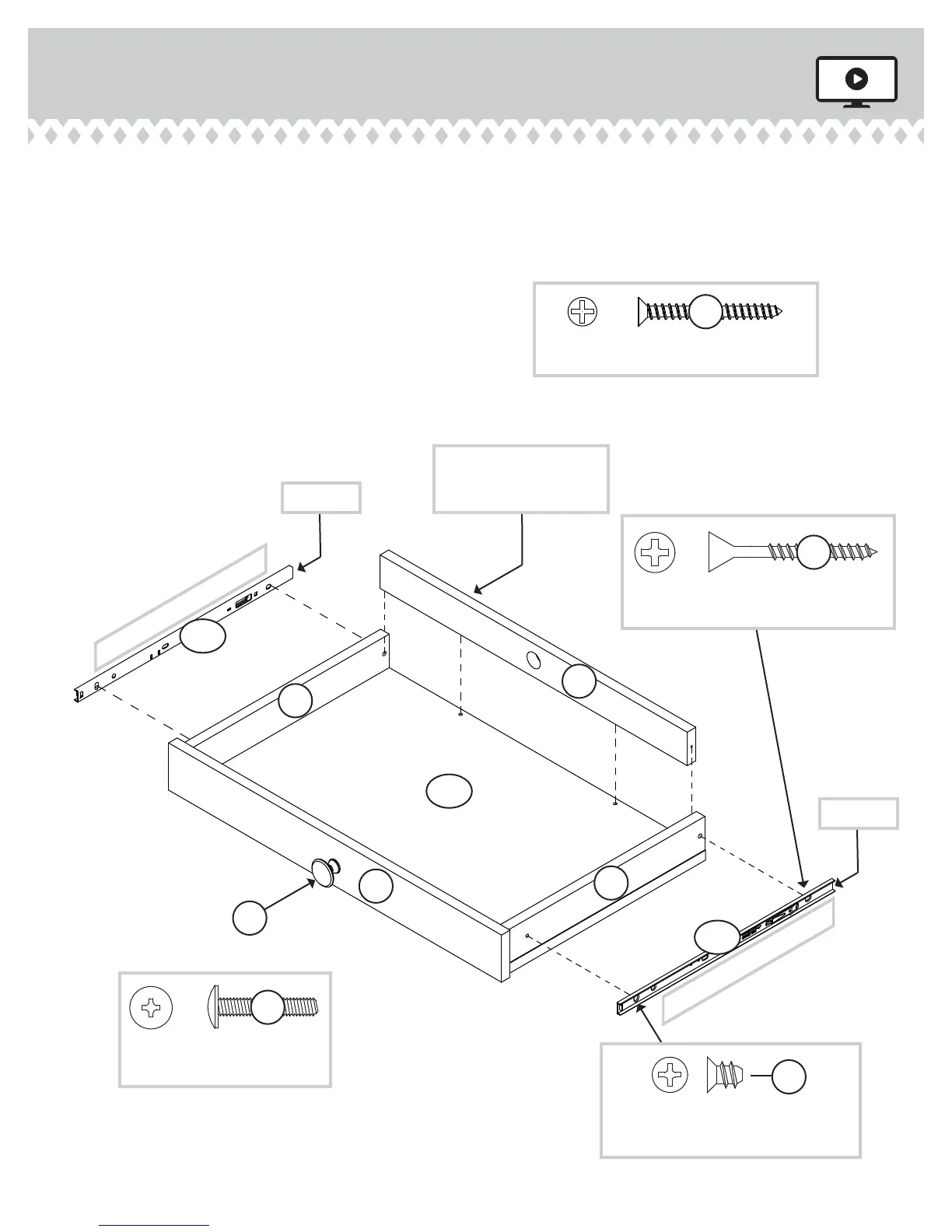

Fasten the NARROW EXTENSION SLIDES (QQQ) to the
KEYBOARD SIDES (YY and ZZ). Use two GOLD 5/16" FLAT
HEAD SCREWS (3S) through the fi rst holes and use two
BROWN 1-1/2" FLAT HEAD SCREWS (14S) through the last
holes and into the KEYBOARD BACK (XX).
å
Then, fasten the KEYBOARD BACK (XX) to the KEYBOARD
SHELF (AAA). Use two SMALL BLACK 1-1/4" FLAT
HEAD SCREWS (74S).
å
Fasten the KNOB (42K) to the KEYBOARD FRONT (WW).
Use a BLACK 7/8" MACHINE SCREW (37S).
Step 34
YY
ZZ
QQQ
QQQ
WW
42K
XX
If the KEYBOARD BACK
has an unfi nished surface,
it should be facing here.
AAA
Narrow Extension Slide
BROWN 1-1/2" FLAT HEAD SCREW
(2 used for the last holes in the SLIDES)
14S
GOLD 5/16" FLAT HEAD SCREW
(2 used for the fi rst holes in the SLIDES)
3S
Open end
Open end
Narrow Extension Slide
SMALL BLACK 1-1/4" FLAT HEAD SCREW
(2 used for the KEYBOARD BACK)
74S
BLACK 7/8" MACHINE SCREW
(1 used for the KNOB)
37S
417714 www.sauder.com/servicesPage 40
